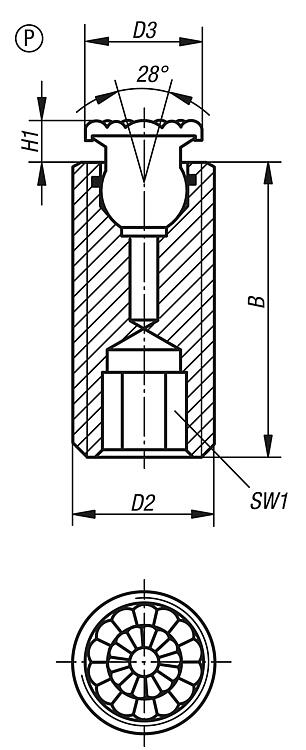

Self-aligning pads, adjustable with O-ring and hexagon socket, Form P, stainless steel ball with polyurethane face
- B0156
Self-aligning pads
adjustable, with O-ring, exchangeable inserts and hexagon socket
- Thrust screws
- Grippers
- Locating pins, rest pads
- Height adjustment elements
- Positioning and clamping system
- Clamping levers, tension levers, cam levers
- Handles and knobs
- Pull handles
- handwheel, crank handle
- Hinges
- Levelling feet
- toggle clamp, push-pull toggle clamp
- Clamping elements
- Joints
- Absorption units
- oil level sight glasses, screw plug, press-in plug
- Transport technology
- Special solutions
- Product news
|
|
|

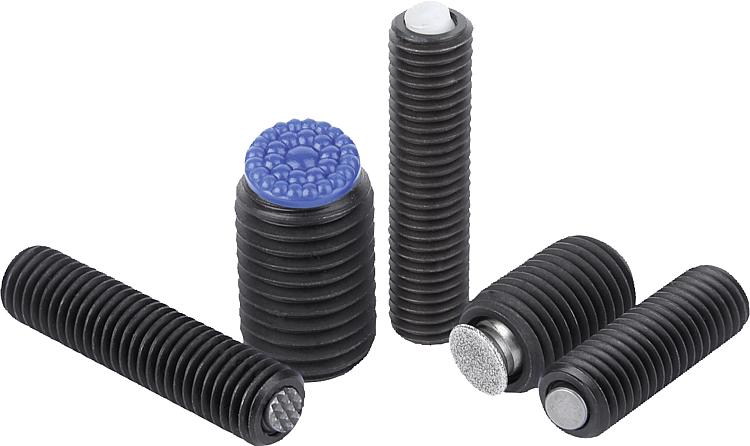

B0155Self-aligning pads adjustable, with O-ring and hexagon socket |
go back |
|
|
DescriptionMaterial:Body carbon steel.
Ball:
Form C, F, tool steel.
Form K POM.
Form O stainless steel diamond impregnated.
Form P stainless steel with polyurethane surface.Version:Body tempered, black oxidised.
Ball:
Form C, F hardened, black oxidised.
Form K POM ball, white.
Form O surface comparable to 100 grade abrasive grit.
Form P polyurethane, hardness 60 Shore.Note:Self-aligning pads are used to support and clamp unmachined and machined workpieces.
They also serve as stops, supports and thrust pads in fixtures and toolmaking.
Ball secured against rotation.
Form O: The abrasive diamond surface is bonded firmly to the ball. It is ideally suited to supporting smooth or slippery applications with a minimum of clamping pressure. This allows the diamond particles to get a firm grip on a very small area with minimum damage to the surface.
The diamond surface offers excellent wear resistance.
Form P: The polyurethane surface is vulcanised firmly to the ball. It is abrasion-resistant and does not discolour. Offers optimum protection against damage to delicate surfaces. The pearl-like surface gives a firm grip and allows air to escape so as to prevent any suction effect between the contact surface and the toggle locator.Advantages:The built-in O-ring holds the ball in place and keeps dirt and foreign particles out, ensuring uniform movement.
The hexagon socket allows easy adjustment and positioning in through holes.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

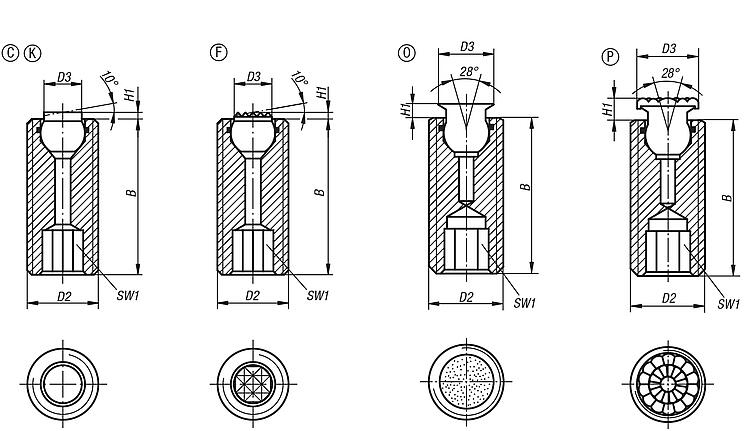

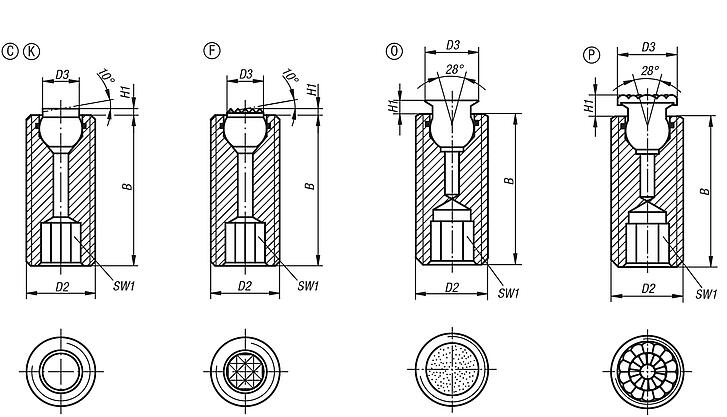

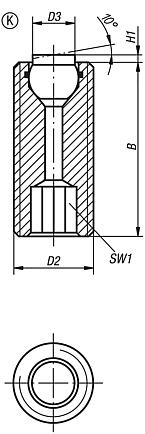

Drawings (total overview) |

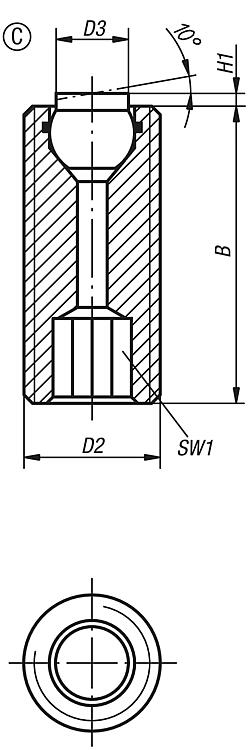

Self-aligning pads, adjustable, with O-ring and hexagon socket Form C, flattened steel ball smooth |
More information |
| Order No. | Form | B | D2 | D3 | H1 | SW1 | Ball-Ø | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0155.112X025 | C | 25 | M12 | 6 | 1,5 | 6 | 7 | 15 |  | | 37.99 € | | | B0155.112X035 | C | 35 | M12 | 6 | 1,5 | 6 | 7 | 15 | | | 38.32 € | | | B0155.112X050 | C | 50 | M12 | 6 | 1,5 | 6 | 7 | 15 | | | 38.81 € | | | B0155.116X025 | C | 25 | M16 | 8,5 | 1,5 | 8 | 10 | 23 | | | 41.48 € | | | B0155.116X035 | C | 35 | M16 | 8,5 | 1,5 | 8 | 10 | 23 | | | 41.79 € | | | B0155.116X050 | C | 50 | M16 | 8,5 | 1,5 | 8 | 10 | 23 | | | 42.60 € | |
|

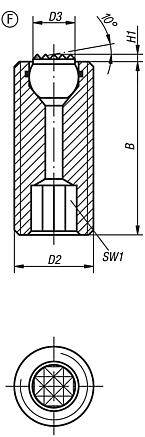

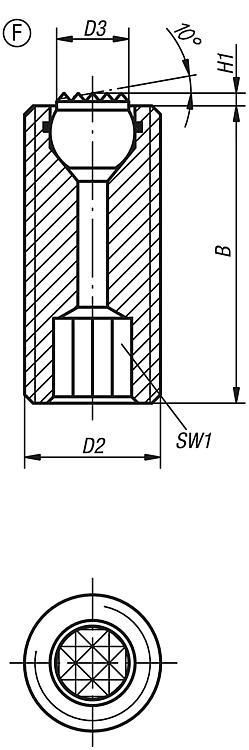

Self-aligning pads, adjustable, with O-ring and hexagon socket Form F, flattened steel ball with diamond grip |
More information |
| Order No. | Form | B | D2 | D3 | H1 | SW1 | Ball-Ø | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0155.312X025 | F | 25 | M12 | 6 | 1,5 | 6 | 7 | 15 | | | 39.76 € | | | B0155.312X035 | F | 35 | M12 | 6 | 1,5 | 6 | 7 | 15 | | | 40.38 € | | | B0155.312X050 | F | 50 | M12 | 6 | 1,5 | 6 | 7 | 15 | | | 40.86 € | | | B0155.316X025 | F | 25 | M16 | 8,5 | 1,5 | 8 | 10 | 23 | | | 43.86 € | | | B0155.316X035 | F | 35 | M16 | 8,5 | 1,5 | 8 | 10 | 23 | | | 44.17 € | | | B0155.316X050 | F | 50 | M16 | 8,5 | 1,5 | 8 | 10 | 23 | | | 44.93 € | |
|

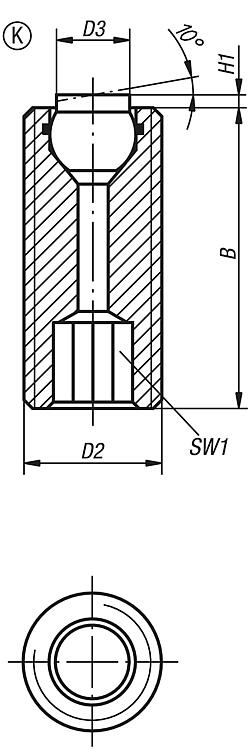

Self-aligning pads, adjustable, with O-ring and hexagon socket Form K, flattened POM ball smooth |
More information |
| Order No. | Form | B | D2 | D3 | H1 | SW1 | Ball-Ø | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0155.712X025 | K | 25 | M12 | 6 | 1,5 | 6 | 7 | 2 | | | 36.76 € | | | B0155.712X035 | K | 35 | M12 | 6 | 1,5 | 6 | 7 | 2 | | | 37.06 € | | | B0155.712X050 | K | 50 | M12 | 6 | 1,5 | 6 | 7 | 2 | | | 37.54 € | | | B0155.716X025 | K | 25 | M16 | 8,5 | 1,5 | 8 | 10 | 4 | | | 39.76 € | | | B0155.716X035 | K | 35 | M16 | 8,5 | 1,5 | 8 | 10 | 4 | | | 40.21 € | | | B0155.716X050 | K | 50 | M16 | 8,5 | 1,5 | 8 | 10 | 4 | | | 40.86 € | |
|

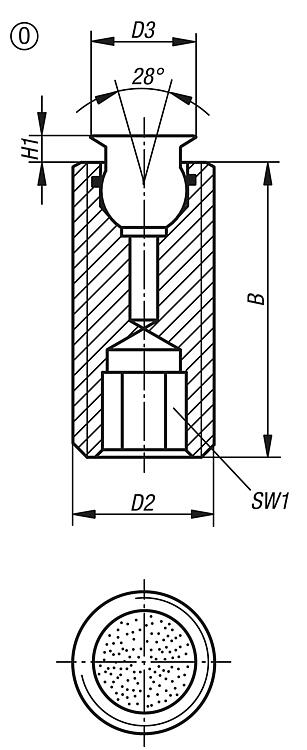

Self-aligning pads, adjustable with O-ring and hexagon socket, Form O, stainless steel ball with diamond impregnated face |
More information |
| Order No. | Form | B | D2 | D3 | H1 | SW1 | DK | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0155.510X026 | O | 25 | M10 | 6 | 1,5 | 5 | 5 | - | | | 37.13 € | | | B0155.510X036 | O | 35 | M10 | 6 | 1,5 | 5 | 5 | - | | | 37.53 € | | | B0155.510X051 | O | 50 | M10 | 6 | 1,5 | 5 | 5 | - | | | 38.07 € | | | B0155.512X027 | O | 25 | M12 | 8 | 2 | 6 | 7 | 15,4 | | | 41.28 € | | | B0155.512X037 | O | 35 | M12 | 8 | 2 | 6 | 7 | 15,4 | | | 41.70 € | | | B0155.512X052 | O | 50 | M12 | 8 | 2 | 6 | 7 | 15,4 | | | 42.29 € | | | B0155.516X028 | O | 25 | M16 | 11 | 3 | 8 | 10 | 23,3 | | | 43.97 € | | | B0155.516X038 | O | 35 | M16 | 11 | 3 | 8 | 10 | 23,3 | | | 44.30 € | | | B0155.516X053 | O | 50 | M16 | 11 | 3 | 8 | 10 | 23,3 | | | 45.77 € | | | B0155.520X033 | O | 30 | M20 | 14 | 3 | 10 | 13 | 37,7 | | | 50.38 € | | | B0155.520X053 | O | 50 | M20 | 14 | 3 | 10 | 13 | 37,7 | | | 51.23 € | | | B0155.520X073 | O | 70 | M20 | 14 | 3 | 10 | 13 | 37,7 | | | 54.84 € | |
|
|
