B0152Self-aligning pads with locknut |
go back |
|
Item description/product images |
|
|

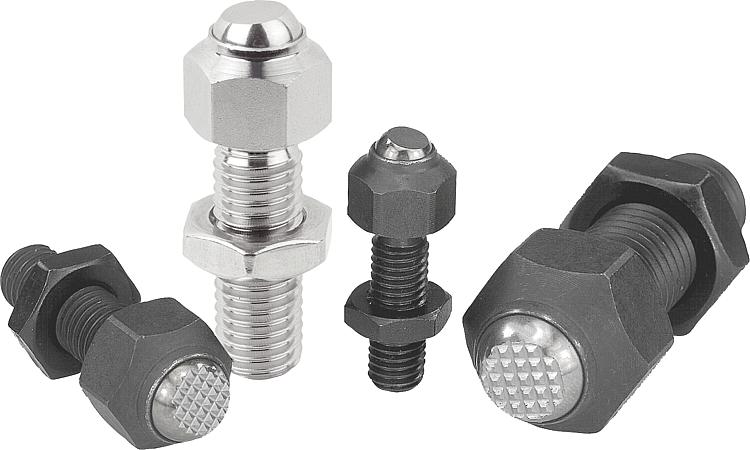

DescriptionMaterial:Steel or stainless steel.Version:Steel version:
Housing tempered and manganese phosphated.
Nut black oxidised.
Stainless steel version:
Housing tempered and electropolished.
Nut bright.Note:Ball secured against rotation.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

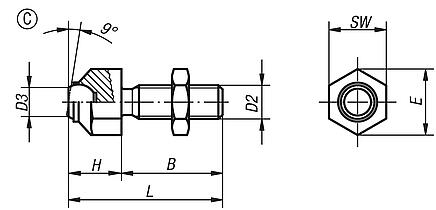

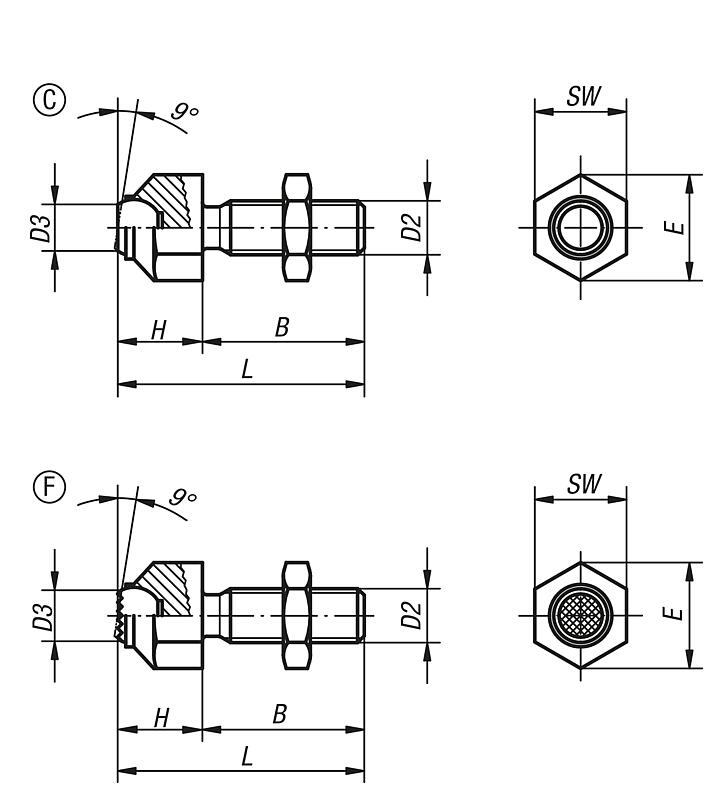

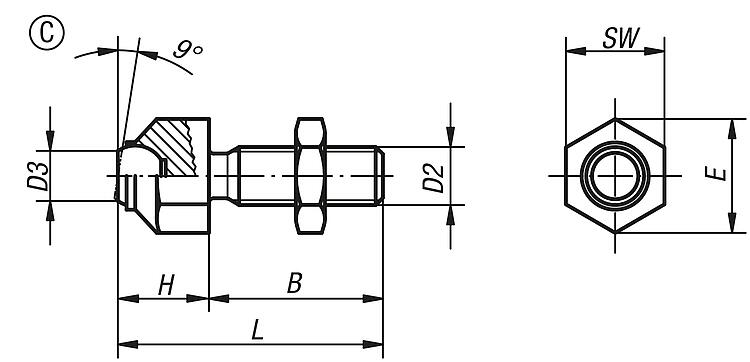

Drawings (total overview) |
| Order No. | Form | Main
material | B | D2 | D3 | H | L | E | SW | Ball-Ø | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0152.108 | C | steel | 25 | M8 | 5,8 | 11,6 | 36,6 | 14,5 | 13 | 8,5 | 8 |  | | 24.29 € | | | B0152.110 | C | steel | 30 | M10 | 8,6 | 15,7 | 45,7 | 19 | 17 | 12 | 8 | | | 32.63 € | | | B0152.112 | C | steel | 35 | M12 | 8,6 | 15,7 | 50,7 | 19 | 17 | 12 | 15 | | | 32.63 € | | | B0152.116 | C | steel | 40 | M16 | 10,5 | 20,7 | 60,7 | 27 | 24 | 16 | 25 | | | 45.02 € | | | B0152.120 | C | steel | 50 | M20 | 20 | 27,3 | 77,3 | 33 | 30 | 25 | 90 | | | 77.96 € | | | B0152.1081 | C | stainless steel | 25 | M8 | 5,8 | 11,6 | 36,6 | 14,5 | 13 | 8,5 | 8 | | | 29.16 € | | | B0152.1101 | C | stainless steel | 30 | M10 | 8,6 | 15,7 | 45,7 | 19 | 17 | 12 | 8 | | | 39.17 € | | | B0152.1121 | C | stainless steel | 35 | M12 | 8,6 | 15,7 | 50,7 | 19 | 17 | 12 | 15 | | | 39.17 € | | | B0152.1161 | C | stainless steel | 40 | M16 | 10,5 | 20,7 | 60,7 | 27 | 24 | 16 | 25 | | | 54.02 € | | | B0152.1201 | C | stainless steel | 50 | M20 | 20 | 27,3 | 77,3 | 33 | 30 | 25 | 90 | | | 93.55 € | |
|

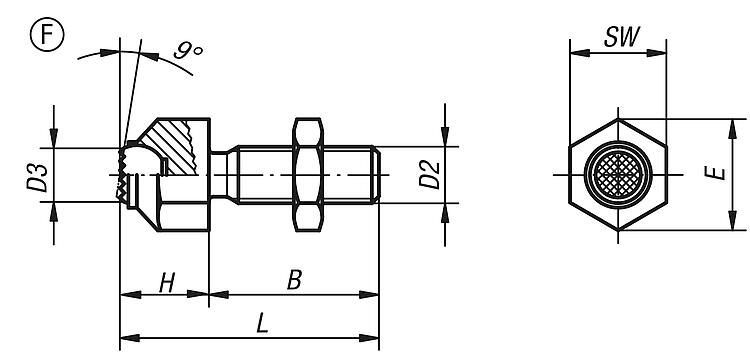

Self-aligning pads with locknut, Form F, flattened ball with diamond grip |
More information |
| Order No. | Form | Main
material | B | D2 | D3 | H | L | E | SW | Ball-Ø | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0152.308 | F | steel | 25 | M8 | 5,8 | 11,6 | 36,6 | 14,5 | 13 | 8,5 | 8 | | | 32.82 € | | | B0152.310 | F | steel | 30 | M10 | 8,6 | 15,7 | 45,7 | 19 | 17 | 12 | 8 | | | 42.03 € | | | B0152.312 | F | steel | 35 | M12 | 8,6 | 15,7 | 50,7 | 19 | 17 | 12 | 15 | | | 42.03 € | | | B0152.316 | F | steel | 40 | M16 | 10,5 | 20,7 | 60,7 | 27 | 24 | 16 | 25 | | | 59.48 € | | | B0152.320 | F | steel | 50 | M20 | 20 | 27,3 | 77,3 | 33 | 30 | 25 | 90 | | | 93.61 € | | | B0152.3081 | F | stainless steel | 25 | M8 | 5,8 | 11,6 | 36,6 | 14,5 | 13 | 8,5 | 8 | | | 39.35 € | | | B0152.3101 | F | stainless steel | 30 | M10 | 8,6 | 15,7 | 45,7 | 19 | 17 | 12 | 8 | | | 50.45 € | | | B0152.3121 | F | stainless steel | 35 | M12 | 8,6 | 15,7 | 50,7 | 19 | 17 | 12 | 15 | | | 50.45 € | | | B0152.3161 | F | stainless steel | 40 | M16 | 10,5 | 20,7 | 60,7 | 27 | 24 | 16 | 25 | | | 71.39 € | | | B0152.3201 | F | stainless steel | 50 | M20 | 20 | 27,3 | 77,3 | 33 | 30 | 25 | 90 | | | 112.34 € | |
|
