DescriptionMaterial:Body carbon steel.
Ball, ball bearing steel 1.2067.
Form D: Ball with POM insert.
Form H: Ball with POM insert.
Form K: Ball with carbide insert.
Form M has a carbide ball.Version:Body tempered and phosphated.
Ball hardened.
Form M ball nickel plated.Note:Self-aligning pads serve as stops, supports and thrust pads in fixture constructions.
Ball secured against rotation.

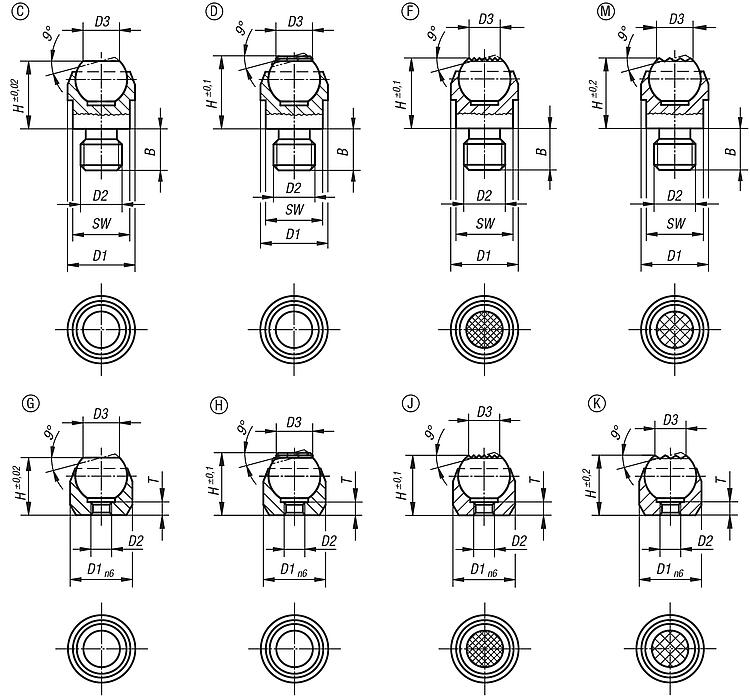

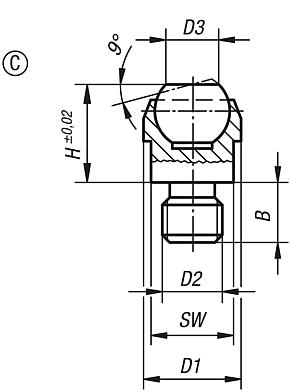

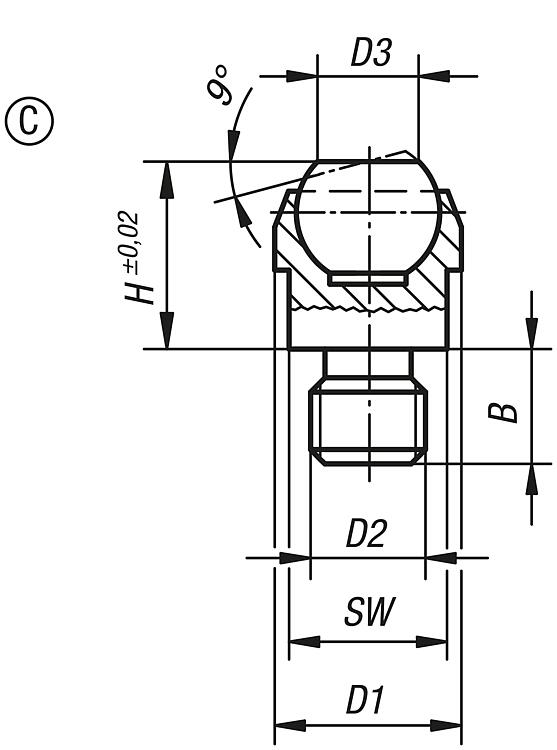

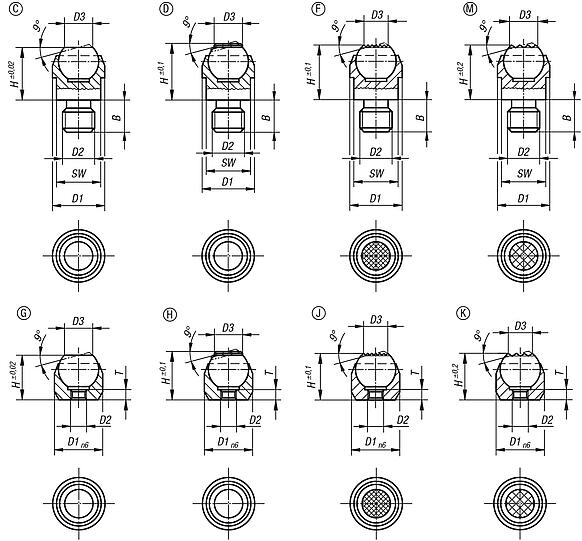

* Valid only if the minimum bore depth is observed.Drawing reference:Form C: with external thread, flattened ball, smooth.

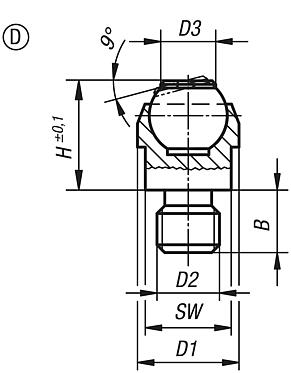

Form D: with external thread, flattened ball, with POM insert.

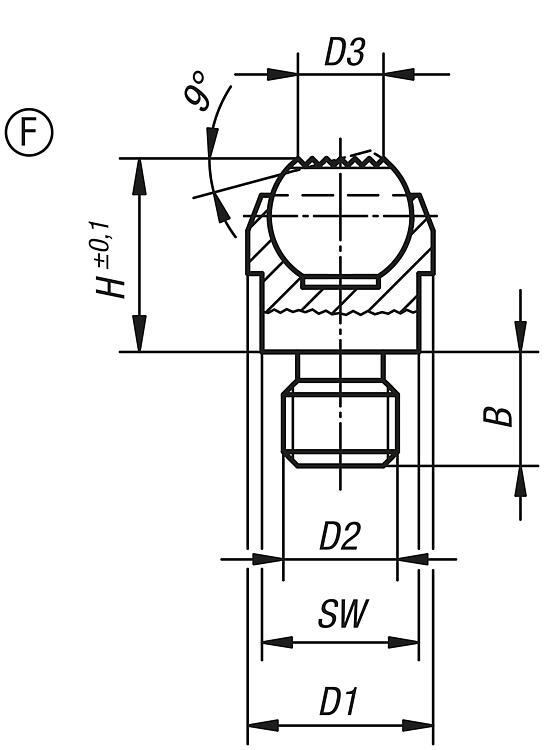

Form F: with external thread, flattened ball, diamond grip.

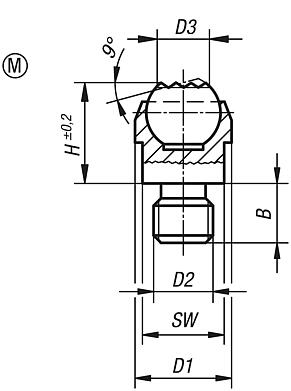

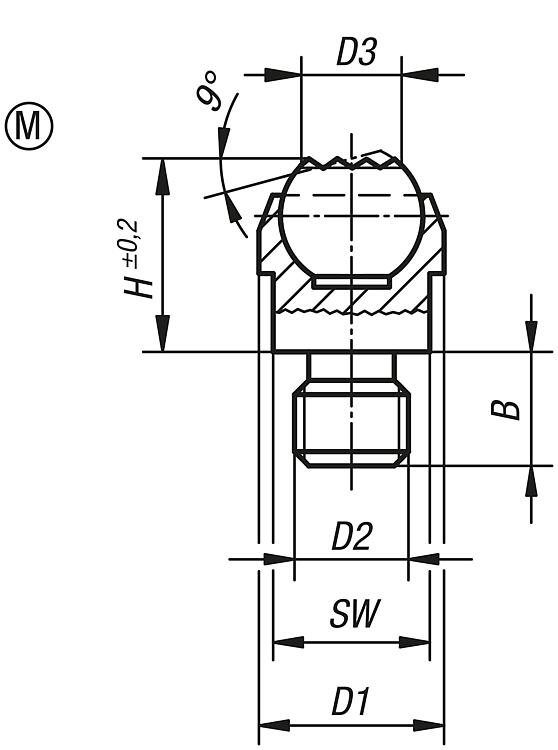

Form M: with external thread, flattened ball, with carbide insert.

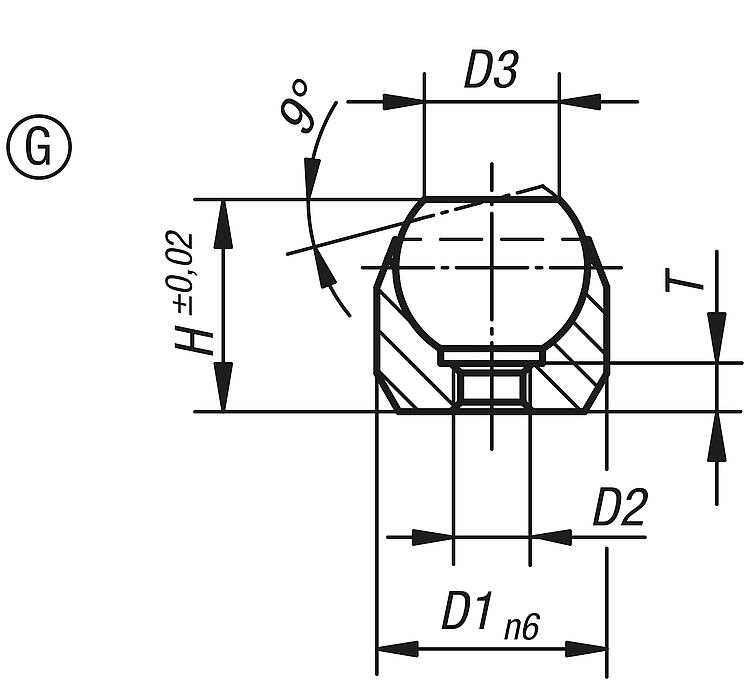

Form G: press fit, flattened ball, smooth.

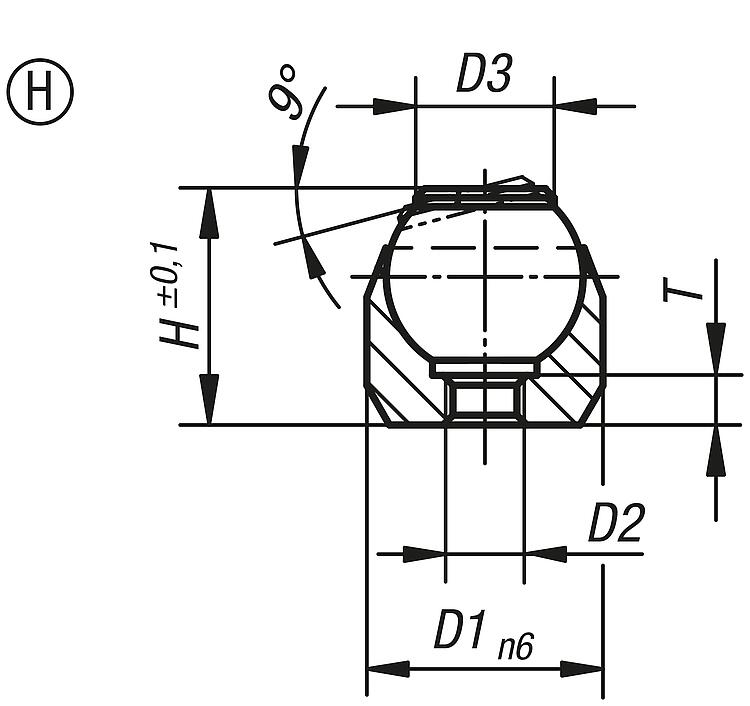

Form H: press fit, flattened ball, with POM insert.

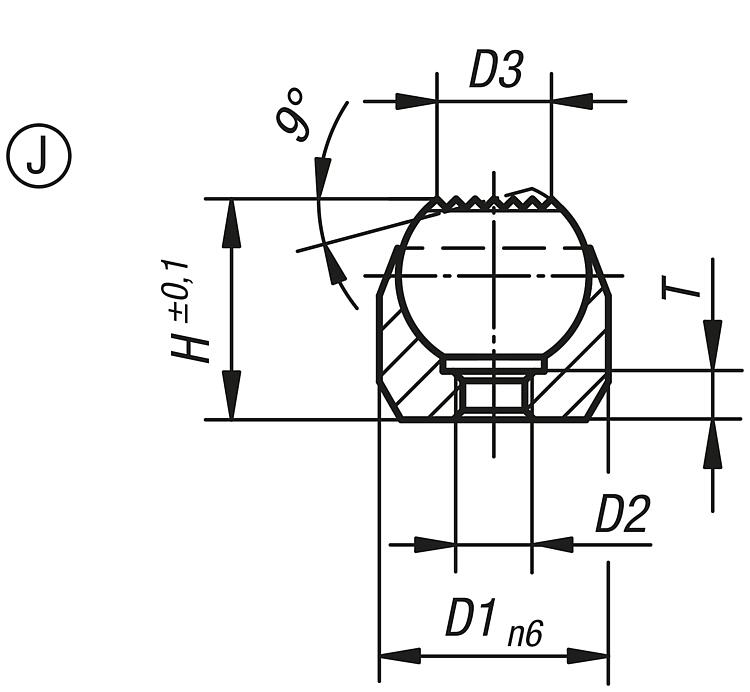

Form J: press fit, flattened ball, diamond grip.

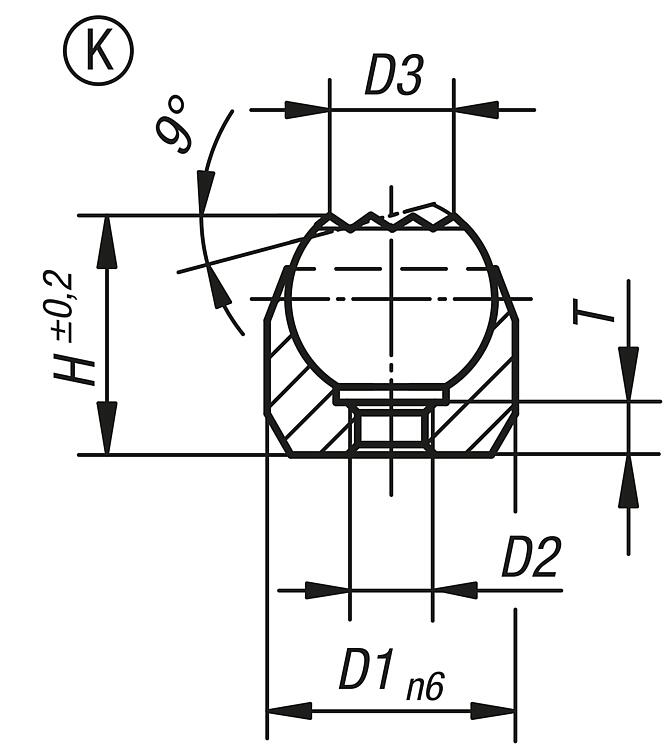

Form K: press fit, flattened ball, with carbide insert. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
