B0164Ball-end thrust screws without head with flattened ball, with... |
go back |
|
Item description/product images |
|
|

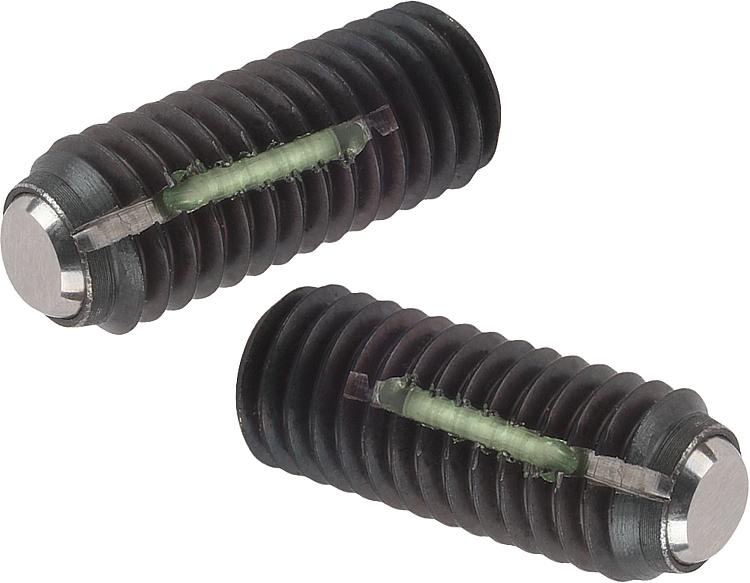

DescriptionMaterial:Screw carbon steel, grade 10.9
Ball, ball-bearing steel.
Thread lock nylon.Version:Screw black.

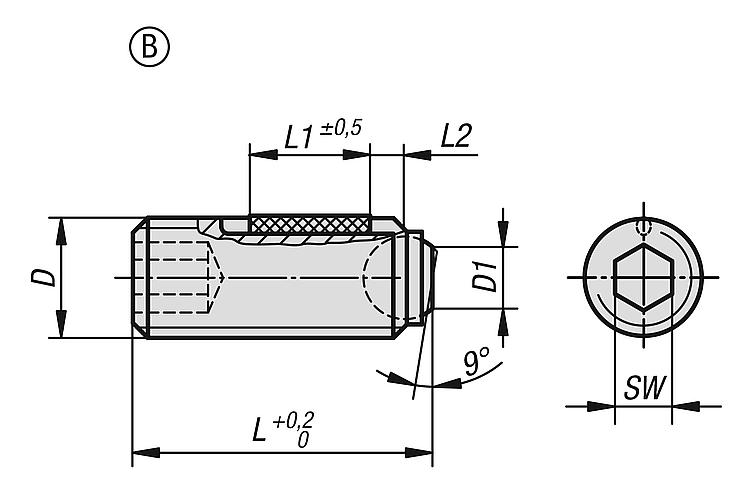

Ball hardened, bright.Note:Surfaces which are not flat and parallel can be firmly clamped or supported with a flattened ball, the movable ball can adapt itself up to 9°.Drawing reference:Form B: with flattened ball
L2 = approx. 2x pitch DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Component
material | D | D1 | L | L1 | Ball-Ø | SW | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0164.20610 | B | ball-bearing steel | M6 | 3 | 10,1 | 3,5 | 4 | 3 | 9 |  | | 4.16 € | | | B0164.20616 | B | ball-bearing steel | M6 | 3 | 16,1 | 7 | 4 | 3 | 9 | | | 4.16 € | | | B0164.20620 | B | ball-bearing steel | M6 | 3 | 20,1 | 7 | 4 | 3 | 9 | | | 4.01 € | | | B0164.20625 | B | ball-bearing steel | M6 | 3 | 25,1 | 7 | 4 | 3 | 9 | | | 5.11 € | | | B0164.20650 | B | ball-bearing steel | M6 | 3 | 50,1 | 7 | 4 | 3 | 9 | | | 3.71 € | | | B0164.20660 | B | ball-bearing steel | M6 | 3 | 60,1 | 7 | 4 | 3 | 9 | | | 3.90 € | | | B0164.20810 | B | ball-bearing steel | M8 | 4,1 | 10,3 | 3,5 | 5,5 | 4 | 10 | | | 4.59 € | | | B0164.20812 | B | ball-bearing steel | M8 | 4,1 | 12,3 | 5 | 5,5 | 4 | 10 | | | 4.59 € | | | B0164.20820 | B | ball-bearing steel | M8 | 4,1 | 20,3 | 8 | 5,5 | 4 | 15 | | | 4.59 € | | | B0164.20825 | B | ball-bearing steel | M8 | 4,1 | 25,3 | 8 | 5,5 | 4 | 15 | | | 4.75 € | | | B0164.20830 | B | ball-bearing steel | M8 | 4,1 | 30,3 | 8 | 5,5 | 4 | 15 | | | 4.62 € | | | B0164.20850 | B | ball-bearing steel | M8 | 4,1 | 50,3 | 8 | 5,5 | 4 | 15 | | | 3.98 € | | | B0164.20860 | B | ball-bearing steel | M8 | 4,1 | 60,3 | 8 | 5,5 | 4 | 15 | | | 4.04 € | | | B0164.20880 | B | ball-bearing steel | M8 | 4,1 | 80,3 | 8 | 5,5 | 4 | 15 | | | 4.09 € | | | B0164.21012 | B | ball-bearing steel | M10 | 5,6 | 12,3 | 5 | 7 | 5 | 20 | | | 5.11 € | | | B0164.21016 | B | ball-bearing steel | M10 | 5,6 | 16,3 | 9 | 7 | 5 | 20 | | | 5.11 € | | | B0164.21020 | B | ball-bearing steel | M10 | 5,6 | 20,3 | 9 | 7 | 5 | 20 | | | 4.74 € | | | B0164.21025 | B | ball-bearing steel | M10 | 5,6 | 25,3 | 9 | 7 | 5 | 20 | | | 5.15 € | | | B0164.21035 | B | ball-bearing steel | M10 | 5,6 | 35,3 | 9 | 7 | 5 | 20 | | | 5.42 € | | | B0164.21216 | B | ball-bearing steel | M12 | 7 | 16,2 | 8 | 8,5 | 6 | 30 | | | 6.83 € | | | B0164.21220 | B | ball-bearing steel | M12 | 7 | 20,2 | 10 | 8,5 | 6 | 30 | | | 6.87 € | | | B0164.21230 | B | ball-bearing steel | M12 | 7 | 30,2 | 10 | 8,5 | 6 | 30 | | | 7.55 € | | | B0164.21240 | B | ball-bearing steel | M12 | 7 | 40,2 | 10 | 8,5 | 6 | 30 | | | 8.08 € | | | B0164.21620 | B | ball-bearing steel | M16 | 10,7 | 20 | 10 | 12 | 8 | 60 | | | 10.45 € | | | B0164.21625 | B | ball-bearing steel | M16 | 10,7 | 25 | 14 | 12 | 8 | 60 | | | 10.72 € | | | B0164.21635 | B | ball-bearing steel | M16 | 10,7 | 35 | 14 | 12 | 8 | 60 | | | 11.47 € | | | B0164.21650 | B | ball-bearing steel | M16 | 10,7 | 50 | 14 | 12 | 8 | 60 | | | 12.56 € | |
