B0167Thrust screw with thread lock |
go back |
|
Item description/product images |
|
|

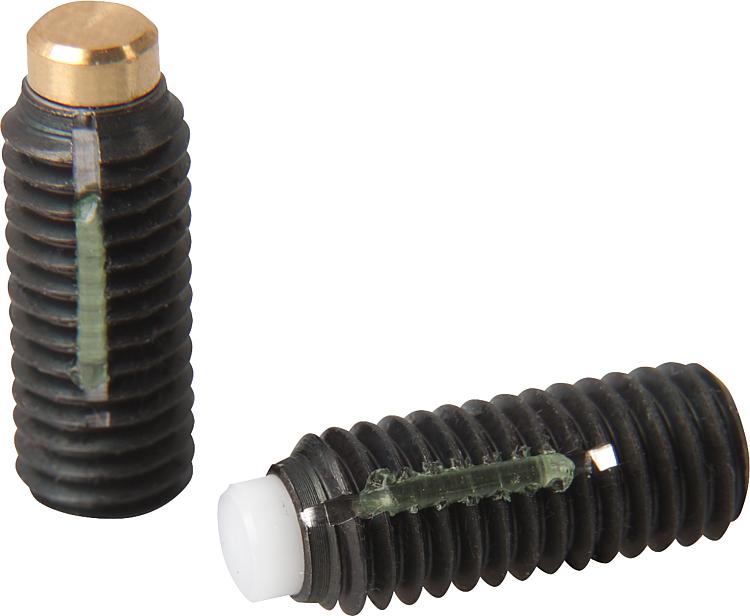

DescriptionMaterial:Screw grade 10.9.
Pin brass or POM.

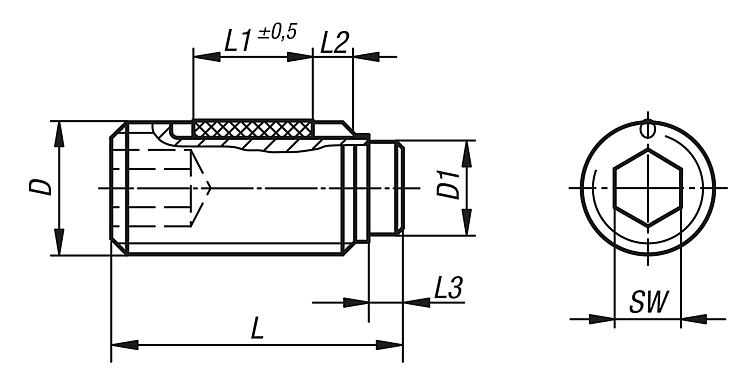

Thread lock nylon.Version:Screw black oxidised.Note:Thrust screws are ideal for clamping or exerting pressure on threaded spindles, axles, shafts and treated surfaces without marring.Drawing reference:L2 = approx. 2x thread pitch DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Component
material | D | D1 | L | L1 | L3 | SW | CAD | Acc. | Price | Order |
|---|
| B0167.204X65 | brass | M4 | 2,5 | 6,5 | 2,5 | 1,2 | 2 |  | | 2.47 € | | | B0167.204X105 | brass | M4 | 2,5 | 10,5 | 3,5 | 1,2 | 2 | | | 2.47 € | | | B0167.204X165 | brass | M4 | 2,5 | 16,5 | 5 | 1,2 | 2 | | | 2.54 € | | | B0167.204X305 | brass | M4 | 2,5 | 30,5 | 5 | 1,2 | 2 | | | 3.45 € | | | B0167.204X405 | brass | M4 | 2,5 | 40,5 | 5 | 1,2 | 2 | | | 3.50 € | | | B0167.205X85 | brass | M5 | 3 | 8,5 | 3,5 | 1,3 | 2,5 | | | 2.22 € | | | B0167.205X125 | brass | M5 | 3 | 12,5 | 5 | 1,3 | 2,5 | | | 2.22 € | | | B0167.205X205 | brass | M5 | 3 | 20,5 | 6 | 1,3 | 2,5 | | | 2.34 € | | | B0167.205X305 | brass | M5 | 3 | 30,5 | 6 | 1,3 | 2,5 | | | 3.50 € | | | B0167.205X405 | brass | M5 | 3 | 40,5 | 6 | 1,3 | 2,5 | | | 3.52 € | | | B0167.206X115 | brass | M6 | 4 | 11,5 | 3,5 | 1,9 | 3 | | | 2.22 € | | | B0167.206X175 | brass | M6 | 4 | 17,5 | 7 | 1,9 | 3 | | | 2.22 € | | | B0167.206X265 | brass | M6 | 4 | 26,5 | 7 | 1,9 | 3 | | | 2.34 € | | | B0167.206X415 | brass | M6 | 4 | 41,5 | 7 | 1,9 | 3 | | | 3.55 € | | | B0167.206X515 | brass | M6 | 4 | 51,5 | 7 | 1,9 | 3 | | | 3.64 € | | | B0167.206X615 | brass | M6 | 4 | 61,5 | 7 | 1,9 | 3 | | | 3.67 € | | | B0167.208X12 | brass | M8 | 5,5 | 12 | 3,5 | 2,4 | 4 | | | 2.30 € | | | B0167.208X22 | brass | M8 | 5,5 | 22 | 8 | 2,4 | 4 | | | 2.30 € | | | B0167.208X32 | brass | M8 | 5,5 | 32 | 8 | 2,4 | 4 | | | 2.39 € | | | B0167.208X52 | brass | M8 | 5,5 | 52 | 8 | 2,4 | 4 | | | 3.71 € | | | B0167.208X62 | brass | M8 | 5,5 | 62 | 8 | 2,4 | 4 | | | 3.78 € | | | B0167.208X82 | brass | M8 | 5,5 | 82 | 8 | 2,4 | 4 | | | 3.79 € | | | B0167.210X14 | brass | M10 | 7 | 14 | 5 | 2,6 | 5 | | | 2.62 € | | | B0167.210X18 | brass | M10 | 7 | 18 | 9 | 2,6 | 5 | | | 2.62 € | | | B0167.210X27 | brass | M10 | 7 | 27 | 9 | 2,6 | 5 | | | 2.71 € | | | B0167.210X37 | brass | M10 | 7 | 37 | 9 | 2,6 | 5 | | | 3.17 € | | | B0167.210X52 | brass | M10 | 7 | 52 | 9 | 2,6 | 5 | | | 3.78 € | | | B0167.210X62 | brass | M10 | 7 | 62 | 9 | 2,6 | 5 | | | 3.81 € | | | B0167.210X82 | brass | M10 | 7 | 82 | 9 | 2,6 | 5 | | | 4.67 € | | | B0167.212X185 | brass | M12 | 8,5 | 18,5 | 8 | 3,3 | 6 | | | 3.55 € | | | B0167.212X225 | brass | M12 | 8,5 | 22,5 | 10 | 3,3 | 6 | | | 3.55 € | | | B0167.212X325 | brass | M12 | 8,5 | 32,5 | 10 | 3,3 | 6 | | | 3.93 € | | | B0167.212X425 | brass | M12 | 8,5 | 42,5 | 10 | 3,3 | 6 | | | 4.95 € | | | B0167.212X525 | brass | M12 | 8,5 | 52,5 | 10 | 3,3 | 6 | | | 4.95 € | | | B0167.212X625 | brass | M12 | 8,5 | 62,5 | 10 | 3,3 | 6 | | | 4.95 € | | | B0167.212X825 | brass | M12 | 8,5 | 82,5 | 10 | 3,3 | 6 | | | 5.30 € | | | B0167.304X7 | POM | M4 | 2 | 7 | 2,5 | 1,7 | 2 | | | 2.24 € | | | B0167.304X9 | POM | M4 | 2 | 9 | 3,5 | 1,7 | 2 | | | 2.24 € | | | B0167.304X11 | POM | M4 | 2 | 11 | 3,5 | 1,7 | 2 | | | 2.24 € | | | B0167.304X13 | POM | M4 | 2 | 13 | 5 | 1,7 | 2 | | | 2.29 € | | | B0167.304X17 | POM | M4 | 2 | 17 | 5 | 1,7 | 2 | | | 2.29 € | | | B0167.304X31 | POM | M4 | 2 | 31 | 5 | 1,7 | 2 | | | 3.55 € | | | B0167.304X41 | POM | M4 | 2 | 41 | 5 | 1,7 | 2 | | | 3.57 € | | | B0167.305X9 | POM | M5 | 3 | 9 | 3,5 | 1,8 | 2,5 | | | 2.12 € | | | B0167.305X11 | POM | M5 | 3 | 11 | 3,5 | 1,8 | 2,5 | | | 2.12 € | | | B0167.305X13 | POM | M5 | 3 | 13 | 5 | 1,8 | 2,5 | | | 2.12 € | | | B0167.305X17 | POM | M5 | 3 | 17 | 6 | 1,8 | 2,5 | | | 2.12 € | | | B0167.305X21 | POM | M5 | 3 | 21 | 6 | 1,8 | 2,5 | | | 2.24 € | | | B0167.305X31 | POM | M5 | 3 | 31 | 6 | 1,8 | 2,5 | | | 3.71 € | | | B0167.305X41 | POM | M5 | 3 | 41 | 6 | 1,8 | 2,5 | | | 3.74 € | | | B0167.306X113 | POM | M6 | 3,5 | 11,3 | 3,5 | 1,7 | 3 | | | 2.12 € | | | B0167.306X133 | POM | M6 | 3,5 | 13,3 | 5 | 1,7 | 3 | | | 2.12 € | | | B0167.306X173 | POM | M6 | 3,5 | 17,3 | 7 | 1,7 | 3 | | | 2.24 € | | | B0167.306X213 | POM | M6 | 3,5 | 21,3 | 7 | 1,7 | 3 | | | 2.24 € | | | B0167.306X263 | POM | M6 | 3,5 | 26,3 | 7 | 1,7 | 3 | | | 2.40 € | | | B0167.306X413 | POM | M6 | 3,5 | 41,3 | 7 | 1,7 | 3 | | | 3.76 € | | | B0167.306X513 | POM | M6 | 3,5 | 51,3 | 7 | 1,7 | 3 | | | 3.80 € | | | B0167.306X613 | POM | M6 | 3,5 | 61,3 | 7 | 1,7 | 3 | | | 3.83 € | | | B0167.308X136 | POM | M8 | 5 | 13,6 | 5 | 2 | 4 | | | 2.40 € | | | B0167.308X176 | POM | M8 | 5 | 17,6 | 8 | 2 | 4 | | | 2.40 € | | | B0167.308X216 | POM | M8 | 5 | 21,6 | 8 | 2 | 4 | | | 2.46 € | | | B0167.308X266 | POM | M8 | 5 | 26,6 | 8 | 2 | 4 | | | 2.61 € | | | B0167.308X336 | POM | M8 | 5 | 33,6 | 8 | 2 | 4 | | | 2.96 € | | | B0167.308X516 | POM | M8 | 5 | 51,6 | 8 | 2 | 4 | | | 3.88 € | | | B0167.308X616 | POM | M8 | 5 | 61,6 | 8 | 2 | 4 | | | 3.94 € | | | B0167.308X816 | POM | M8 | 5 | 81,6 | 8 | 2 | 4 | | | 3.96 € | | | B0167.310X179 | POM | M10 | 6,5 | 17,9 | 9 | 2,5 | 5 | | | 3.08 € | | | B0167.310X219 | POM | M10 | 6,5 | 21,9 | 9 | 2,5 | 5 | | | 3.08 € | | | B0167.310X269 | POM | M10 | 6,5 | 26,9 | 9 | 2,5 | 5 | | | 3.21 € | | | B0167.310X339 | POM | M10 | 6,5 | 33,9 | 9 | 2,5 | 5 | | | 3.45 € | | | B0167.310X419 | POM | M10 | 6,5 | 41,9 | 9 | 2,5 | 5 | | | 3.94 € | | | B0167.310X519 | POM | M10 | 6,5 | 51,9 | 9 | 2,5 | 5 | | | 4.37 € | | | B0167.310X619 | POM | M10 | 6,5 | 61,9 | 9 | 2,5 | 5 | | | 4.39 € | | | B0167.310X819 | POM | M10 | 6,5 | 81,9 | 9 | 2,5 | 5 | | | 5.01 € | | | B0167.312X221 | POM | M12 | 8 | 22,1 | 10 | 2,9 | 6 | | | 4.17 € | | | B0167.312X271 | POM | M12 | 8 | 27,1 | 10 | 2,9 | 6 | | | 4.17 € | | | B0167.312X341 | POM | M12 | 8 | 34,1 | 10 | 2,9 | 6 | | | 4.17 € | | | B0167.312X421 | POM | M12 | 8 | 42,1 | 10 | 2,9 | 6 | | | 4.17 € | | | B0167.312X521 | POM | M12 | 8 | 52,1 | 10 | 2,9 | 6 | | | 4.83 € | | | B0167.312X621 | POM | M12 | 8 | 62,1 | 10 | 2,9 | 6 | | | 5.28 € | | | B0167.312X821 | POM | M12 | 8 | 82,1 | 10 | 2,9 | 6 | | | 5.55 € | |
