B0163Ball-end thrust screws without head with full ball, with thread... |
go back |
|

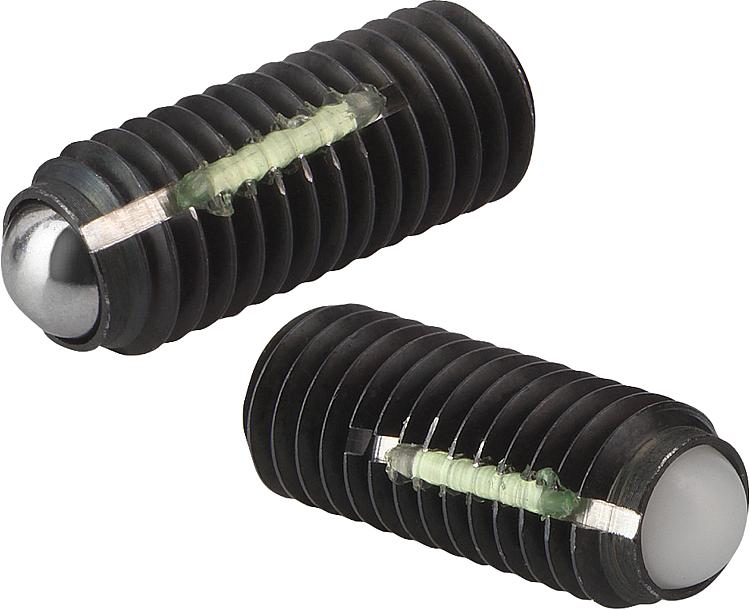

Item description/product images |
|
|
DescriptionMaterial:Screw carbon steel, grade 10.9
Ball, ball-bearing steel or POM.
Thread lock nylon.Version:Screw black.

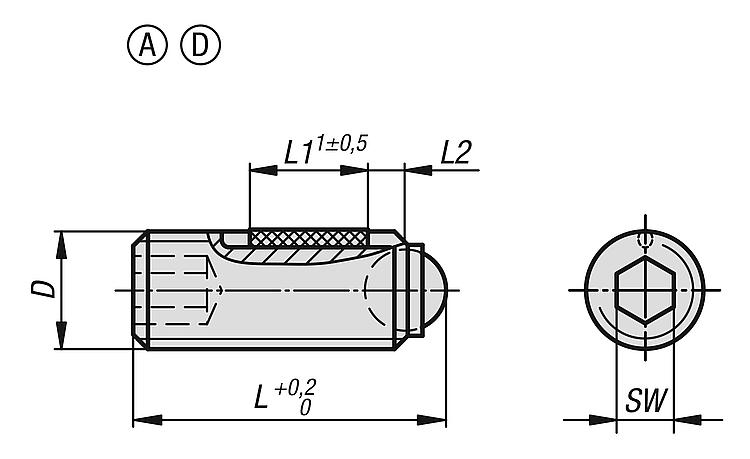

Ball hardened, bright.Note:Ball-end thrust screws with full ball are used when a clean, polished contact surface is required.Drawing reference:Form A: steel ball
Form D: POM ball
L2 = approx. 2x pitch DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Form | Component
material | D | L | L1 | Ball-Ø | SW | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0163.1046 | A | ball-bearing steel | M4 | 6 | 2,5 | 2,5 | 2 | 3,5 |  | | 2.55 € | | | B0163.10410 | A | ball-bearing steel | M4 | 10 | 3,5 | 2,5 | 2 | 3,5 | | | 2.55 € | | | B0163.10416 | A | ball-bearing steel | M4 | 16 | 5 | 2,5 | 2 | 3,5 | | | 2.55 € | | | B0163.1058 | A | ball-bearing steel | M5 | 8 | 3,5 | 3 | 2,5 | 4,5 | | | 2.42 € | | | B0163.10512 | A | ball-bearing steel | M5 | 12 | 5 | 3 | 2,5 | 4,5 | | | 2.42 € | | | B0163.10520 | A | ball-bearing steel | M5 | 20 | 6 | 3 | 2,5 | 4,5 | | | 2.51 € | | | B0163.10610 | A | ball-bearing steel | M6 | 10,8 | 3,5 | 4 | 3 | 9 | | | 2.42 € | | | B0163.10616 | A | ball-bearing steel | M6 | 16,8 | 7 | 4 | 3 | 9 | | | 2.42 € | | | B0163.10620 | A | ball-bearing steel | M6 | 20,8 | 7 | 4 | 3 | 9 | | | 2.51 € | | | B0163.10625 | A | ball-bearing steel | M6 | 25,8 | 7 | 4 | 3 | 9 | | | 2.51 € | | | B0163.10650 | A | ball-bearing steel | M6 | 50,8 | 7 | 4 | 3 | 9 | | | 3.65 € | | | B0163.10660 | A | ball-bearing steel | M6 | 60,8 | 7 | 4 | 3 | 9 | | | 3.80 € | | | B0163.10810 | A | ball-bearing steel | M8 | 11,2 | 3,5 | 5,5 | 4 | 10 | | | 2.42 € | | | B0163.10812 | A | ball-bearing steel | M8 | 13,2 | 5 | 5,5 | 4 | 10 | | | 2.42 € | | | B0163.10820 | A | ball-bearing steel | M8 | 21,2 | 8 | 5,5 | 4 | 15 | | | 2.42 € | | | B0163.10825 | A | ball-bearing steel | M8 | 26,2 | 8 | 5,5 | 4 | 15 | | | 2.46 € | | | B0163.10830 | A | ball-bearing steel | M8 | 31,2 | 8 | 5,5 | 4 | 15 | | | 2.52 € | | | B0163.10850 | A | ball-bearing steel | M8 | 51,2 | 8 | 5,5 | 4 | 15 | | | 3.74 € | | | B0163.10860 | A | ball-bearing steel | M8 | 61,2 | 8 | 5,5 | 4 | 15 | | | 3.83 € | | | B0163.10880 | A | ball-bearing steel | M8 | 81,2 | 8 | 5,5 | 4 | 15 | | | 3.94 € | | | B0163.11012 | A | ball-bearing steel | M10 | 13,7 | 5 | 7 | 5 | 20 | | | 2.81 € | | | B0163.11016 | A | ball-bearing steel | M10 | 17,7 | 9 | 7 | 5 | 20 | | | 2.81 € | | | B0163.11020 | A | ball-bearing steel | M10 | 21,7 | 9 | 7 | 5 | 20 | | | 2.99 € | | | B0163.11025 | A | ball-bearing steel | M10 | 26,7 | 9 | 7 | 5 | 20 | | | 2.99 € | | | B0163.11035 | A | ball-bearing steel | M10 | 36,7 | 9 | 7 | 5 | 20 | | | 3.08 € | | | B0163.11216 | A | ball-bearing steel | M12 | 18 | 8 | 8,5 | 6 | 30 | | | 3.22 € | | | B0163.11220 | A | ball-bearing steel | M12 | 22 | 10 | 8,5 | 6 | 30 | | | 3.22 € | | | B0163.11230 | A | ball-bearing steel | M12 | 32 | 10 | 8,5 | 6 | 30 | | | 3.45 € | | | B0163.11240 | A | ball-bearing steel | M12 | 42 | 10 | 8,5 | 6 | 30 | | | 3.83 € | | | B0163.11620 | A | ball-bearing steel | M16 | 23,3 | 10 | 12 | 8 | 60 | | | 5.15 € | | | B0163.11625 | A | ball-bearing steel | M16 | 28,3 | 14 | 12 | 8 | 60 | | | 5.15 € | | | B0163.11635 | A | ball-bearing steel | M16 | 38,3 | 14 | 12 | 8 | 60 | | | 5.47 € | | | B0163.11650 | A | ball-bearing steel | M16 | 53,3 | 14 | 12 | 8 | 60 | | | 5.74 € | | | B0163.3046 | D | polyacetal | M4 | 6 | 2,5 | 2,5 | 2 | 0,3 | | | 2.84 € | | | B0163.30410 | D | polyacetal | M4 | 10 | 3,5 | 2,5 | 2 | 0,3 | | | 2.84 € | | | B0163.30416 | D | polyacetal | M4 | 16 | 5 | 2,5 | 2 | 0,3 | | | 2.84 € | | | B0163.3058 | D | polyacetal | M5 | 8 | 3,5 | 3 | 2,5 | 0,5 | | | 2.68 € | | | B0163.30512 | D | polyacetal | M5 | 12 | 5 | 3 | 2,5 | 0,5 | | | 2.68 € | | | B0163.30520 | D | polyacetal | M5 | 20 | 6 | 3 | 2,5 | 0,5 | | | 2.74 € | | | B0163.30610 | D | polyacetal | M6 | 10,8 | 3,5 | 4 | 3 | 0,9 | | | 2.68 € | | | B0163.30616 | D | polyacetal | M6 | 16,8 | 7 | 4 | 3 | 0,9 | | | 2.74 € | | | B0163.30620 | D | polyacetal | M6 | 20,8 | 7 | 4 | 3 | 0,9 | | | 2.84 € | | | B0163.30625 | D | polyacetal | M6 | 25,8 | 7 | 4 | 3 | 0,9 | | | 2.84 € | | | B0163.30810 | D | polyacetal | M8 | 11,2 | 3,5 | 5,5 | 4 | 1,5 | | | 2.84 € | | | B0163.30812 | D | polyacetal | M8 | 13,2 | 5 | 5,5 | 4 | 1,5 | | | 2.84 € | | | B0163.30820 | D | polyacetal | M8 | 21,2 | 8 | 5,5 | 4 | 1,5 | | | 2.84 € | | | B0163.30825 | D | polyacetal | M8 | 26,2 | 8 | 5,5 | 4 | 1,5 | | | 2.94 € | | | B0163.30830 | D | polyacetal | M8 | 31,2 | 8 | 5,5 | 4 | 1,5 | | | 2.94 € | | | B0163.31012 | D | polyacetal | M10 | 13,7 | 5 | 7 | 5 | 2 | | | 3.14 € | | | B0163.31016 | D | polyacetal | M10 | 17,7 | 9 | 7 | 5 | 2 | | | 3.14 € | | | B0163.31020 | D | polyacetal | M10 | 21,7 | 9 | 7 | 5 | 2 | | | 3.33 € | | | B0163.31025 | D | polyacetal | M10 | 26,7 | 9 | 7 | 5 | 2 | | | 3.33 € | | | B0163.31035 | D | polyacetal | M10 | 36,7 | 9 | 7 | 5 | 2 | | | 3.42 € | | | B0163.31216 | D | polyacetal | M12 | 18 | 8 | 8,5 | 6 | 3 | | | 3.98 € | | | B0163.31220 | D | polyacetal | M12 | 22 | 10 | 8,5 | 6 | 3 | | | 3.98 € | | | B0163.31230 | D | polyacetal | M12 | 32 | 10 | 8,5 | 6 | 3 | | | 4.26 € | | | B0163.31240 | D | polyacetal | M12 | 42 | 10 | 8,5 | 6 | 3 | | | 4.53 € | |
