B0141Threaded inserts self-tapping with cutting slot |
go back |
|

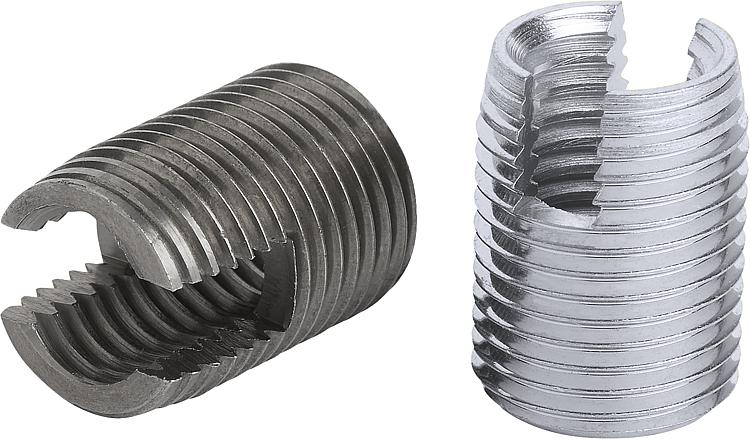

Item description/product images |
|
|
DescriptionMaterial:Steel or 1.4305 stainless steel. Version:Steel case hardened, electro zinc-plated.
Stainless steel bright.Note:Self-tapping threaded inserts for making high-strength, wear-free, vibration resistant screw connections in materials with low shear strength such as aluminium and aluminium alloys, brass, bronze, cast iron, duro and thermoplastics.
The threaded inserts are tapered at the bottom and have a cutting slot. By screwing in they cut their own threads inside a receiver hole. This guarantees a completely secure and firm anchoring in the host material.
Internal thread D1 acc. to ISO 6H.
The threaded inserts with cutting slot spring slightly inwards in the slot region in some materials. This results in a screw locking effect. If this is not desired, we recommend the threaded inserts with a cutting bore. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

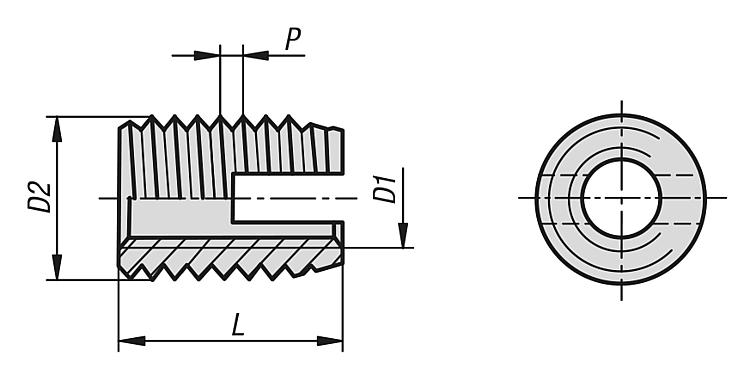

Order No.
| Main
material | D1
internal
thread | D2 | L
length | P | T
min. | R min.
light metal | R min.
cast iron | R min.
plastics | Order No.
Hand ass. tool | Order No.
M/C ass. tool | CAD | Acc. | Price | Order |
|---|
| B0141.03 | steel | M3 | 5 | 6 | 0,5 | 8 | 1 | 1,5 | 1,25 | B0142.803 | B0142.903 |  | | 0.32 € | | | B0141.04 | steel | M4 | 6,5 | 8 | 0,75 | 10 | 1,3 | 1,95 | 1,6 | B0142.804 | B0142.904 | | | 0.38 € | | | B0141.05 | steel | M5 | 8 | 10 | 1 | 13 | 1,6 | 2,4 | 2 | B0142.805 | B0142.905 | | | 0.38 € | | | B0141.06 | steel | M6 | 10 | 14 | 1,5 | 17 | 2 | 3 | 2,5 | B0142.806 | B0142.906 | | | 0.45 € | | | B0141.08 | steel | M8 | 12 | 15 | 1,5 | 18 | 2,4 | 3,6 | 3 | B0142.808 | B0142.908 | | | 0.60 € | | | B0141.10 | steel | M10 | 14 | 18 | 1,5 | 22 | 2,8 | 4,2 | 3,5 | B0142.810 | B0142.910 | | | 0.71 € | | | B0141.12 | steel | M12 | 16 | 22 | 1,5 | 26 | 3,2 | 4,8 | 4 | B0142.812 | B0142.912 | | | 0.97 € | | | B0141.16 | steel | M16 | 20 | 22 | 1,5 | 27 | 4 | 6 | 5 | - | B0142.916 | | | 2.81 € | | | B0141.103 | stainless steel | M3 | 5 | 6 | 0,5 | 8 | 1 | 1,5 | 1,25 | B0142.803 | B0142.903 | | | 1.13 € | | | B0141.104 | stainless steel | M4 | 6,5 | 8 | 0,75 | 10 | 1,3 | 1,95 | 1,6 | B0142.804 | B0142.904 | | | 1.36 € | | | B0141.105 | stainless steel | M5 | 8 | 10 | 1 | 13 | 1,6 | 2,4 | 2 | B0142.805 | B0142.905 | | | 1.49 € | | | B0141.106 | stainless steel | M6 | 10 | 14 | 1,5 | 17 | 2 | 3 | 2,5 | B0142.806 | B0142.906 | | | 1.35 € | | | B0141.108 | stainless steel | M8 | 12 | 15 | 1,5 | 18 | 2,4 | 3,6 | 3 | B0142.808 | B0142.908 | | | 1.87 € | | | B0141.110 | stainless steel | M10 | 14 | 18 | 1,5 | 22 | 2,8 | 4,2 | 3,5 | B0142.810 | B0142.910 | | | 2.65 € | | | B0141.112 | stainless steel | M12 | 16 | 22 | 1,5 | 26 | 3,2 | 4,8 | 4 | B0142.812 | B0142.912 | | | 3.18 € | | | B0141.116 | stainless steel | M16 | 20 | 22 | 1,5 | 27 | 4 | 6 | 5 | - | B0142.916 | | | 6.43 € | |
