B0136Threaded inserts solid body |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Threaded insert in steel.Version:Passivated.Note:Solid body threaded inserts allow threaded holes which have been damaged, torn out or jammed to be used again or to be repaired. This makes it possible to recover scrap and rejects of expensive products.
Solid body threaded inserts are suitable for use in various materials, including light metals and castings.
Permissible deviations:
The medium tolerance class applies to the threads listed, i.e. 6g for bolt threads.
Other dimensions ±0.25 mm.
Solid body threaded inserts are used where threaded holes that have been drilled too large or drill hole spacings that have not been observed in workpieces need to be redone.
Technical information see operating instructions for threaded inserts.Advantages:- Quick and easy installation.
- The insert is fixed with pins in order to prevent torsion due to twisting or vibrations.

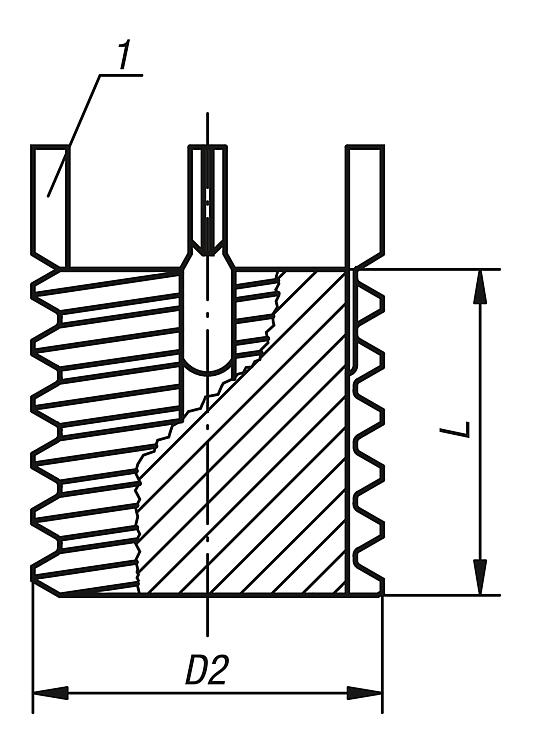

- No other special tools are required besides the assembly tool.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | D2
external
thread | L
length | Core
drill Ø | Counter-
sink Ø
+0.25 | Tap
size | Min.
thread
depth | Removal
drill
Ø | Removal
drilling
depth | Order No.
assembly tools | CAD | Acc. | Price | Order |
|---|
| B0136.08 | M8 | 8 | 6,9 | 8,3 | M8 | 9,5 | 5,5 | 4 | B0137.808 |  |  | 12.56 € | | | B0136.10X125 | M10x1,25 | 10 | 8,8 | 10,3 | M10x1,25 | 12,5 | 7,5 | 4,8 | B0137.810 | | | 13.24 € | | | B0136.12X125 | M12x1,25 | 12 | 10,8 | 12,3 | M12x1,25 | 14,5 | 9,5 | 4,8 | B0137.812 | | | 13.92 € | | | B0136.14X15 | M14x1,5 | 14 | 12,8 | 14,3 | M14x1,5 | 16,5 | 11,5 | 4,8 | B0137.814 | | | 19.02 € | | | B0136.16X15 | M16x1,5 | 16 | 14,8 | 16,3 | M16x1,5 | 18,5 | 13,5 | 4,8 | B0137.816 | | | 20.13 € | | | B0136.18X15 | M18x1,5 | 18 | 16,8 | 18,3 | M18x1,5 | 20,5 | 15,5 | 4,8 | B0137.818 | | | 21.67 € | | | B0136.20X15 | M20x1,5 | 20 | 18,8 | 20,3 | M20x1,5 | 22,5 | 17,5 | 4,8 | B0137.820 | | | 24.17 € | | | B0136.22X15 | M22x1,5 | 22 | 20,7 | 22,3 | M22x1,5 | 24,5 | 17,8 | 6,4 | B0137.822 | | | 27.54 € | | | B0136.24X15 | M24x1,5 | 24 | 22,5 | 24,3 | M24x1,5 | 26,5 | 19,8 | 6,4 | B0137.824 | | | 35.02 € | | | B0136.30X2 | M30x2 | 30 | 28 | 30,3 | M30x2 | 34,5 | 25,8 | 6,4 | B0137.830 | | | 37.04 € | |
