B0134

Threaded inserts reinforced

go back

Products
- Product overview
  - Machine and fixture components
    - Threaded Inserts
      - Threaded inserts reinforced

Item description/product images

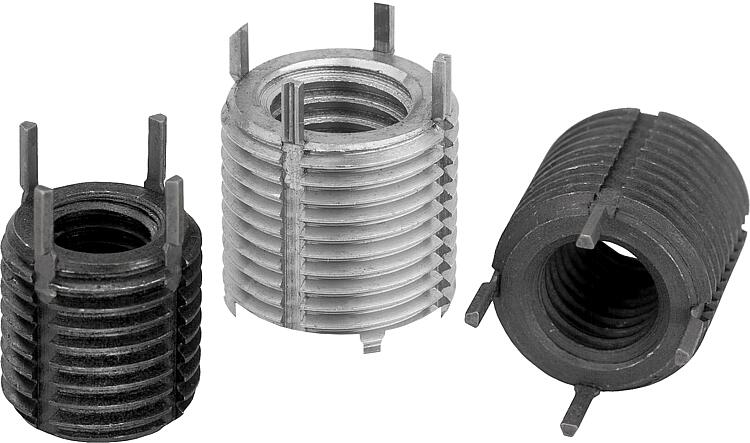

DescriptionMaterial:Threaded insert in steel or stainless steel.Version:Passivated.Note:Reinforced threaded inserts allow threaded holes which have been damaged, torn out or jammed to be used again or to be repaired. This makes it possible to recover scrap and rejects of expensive products.
Reinforced threaded inserts are suitable for use in various materials, including light metals and casting.
Inserts with internal threads larger than M6 are supplied with four locking pins instead of two.
Permissible deviations:
The medium tolerance class applies to the threads listed, i.e. 6H for nut threads and 6g for bolt threads. Other dimensions ±0.25 mm.

With reinforced threaded inserts we also offer a version with a stronger cross-section for use in applications with greater stress.

Technical information see operating instructions for threaded inserts.Advantages:- Easier and quicker installation.
- The insert is fixated with wedges to prevent torsion due to twisting or vibrations.
- No other special tools are needed besides the assembly tool.Drawing reference:

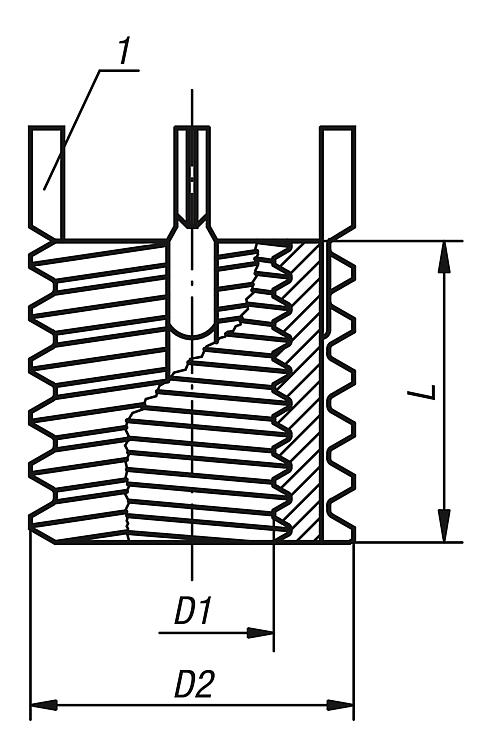

1) locking pin

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0134 Threaded inserts reinforced

244 kB

BLOHM_TH_003_Gewindeeinsaetze_DE

724 kB

Drawings

Item selection/filter

Order No.	Main material	D1 internal thread	D2 external thread	L length	Core drill Ø	Counter- sink Ø +0.25	Tap size	Min. thread depth	Removal drill Ø	Removal drilling depth	Order No. assembly tools	Price
B0134.04	steel	M4	M8	8	6,9	8,3	M8	9,5	5,5	4	B0135.804	6.37 €
B0134.05	steel	M5	M10x1,25	10	8,8	10,3	M10x1,25	12,5	7,5	4,8	B0135.805	3.31 €
B0134.06	steel	M6	M12x1,25	12	10,8	12,3	M12x1,25	14,5	9,5	4,8	B0135.806	3.54 €
B0134.08	steel	M8	M14x1,5	14	12,8	14,3	M14x1,5	16,5	11,5	4,8	B0135.808	3.94 €
B0134.08X1	steel	M8x1	M14x1,5	14	12,8	14,3	M14x1,5	16,5	11,5	4,8	B0135.808	3.94 €
B0134.10	steel	M10	M16x1,5	16	14,8	16,3	M16x1,5	18,5	13,5	4,8	B0135.810	4.90 €
B0134.10X125	steel	M10x1,25	M16x1,5	16	14,8	16,3	M16x1,5	18,5	13,5	4,8	B0135.810	8.05 €
B0134.12	steel	M12	M18x1,5	18	16,8	18,3	M18x1,5	20,5	15,5	4,8	B0135.812	6.29 €
B0134.12X125	steel	M12x1,25	M18x1,5	18	16,8	18,3	M18x1,5	20,5	15,5	4,8	B0135.812	6.29 €
B0134.14	steel	M14	M20x1,5	20	18,8	20,3	M20x1,5	22,5	17,5	4,8	B0135.814	7.80 €
B0134.14X15	steel	M14x1,5	M20x1,5	20	18,8	20,3	M20x1,5	22,5	17,5	4,8	B0135.814	7.80 €
B0134.16	steel	M16	M22x1,5	22	20,7	22,3	M22x1,5	24,5	17,8	6,4	B0135.816	9.06 €
B0134.16X15	steel	M16x1,5	M22x1,5	22	20,7	22,3	M22x1,5	24,5	17,8	6,4	B0135.816	9.06 €
B0134.18X15	steel	M18x1,5	M24x1,5	24	22,5	24,3	M24x1,5	26,5	19,8	6,4	B0135.818	13.37 €
B0134.20	steel	M20	M30x2	30	28	30,3	M30x2	34,5	25,8	6,4	B0135.820	15.70 €
B0134.20X15	steel	M20x1,5	M30x2	30	28	30,3	M30x2	34,5	25,8	6,4	B0135.820	15.70 €
B0134.22X15	steel	M22x1,5	M32x2	32	30	32,3	M32x2	36,5	27,8	6,4	B0135.822	20.04 €
B0134.24	steel	M24	M33x2	33	31	33,3	M33x2	37,5	28,8	6,4	B0135.824	28.47 €
B0134.24X2	steel	M24x2	M33x2	33	31	33,3	M33x2	37,5	28,8	6,4	B0135.824	28.47 €
B0134.104	stainless steel	M4	M8	8	6,9	8,3	M8	9,5	5,5	4	B0135.804	7.25 €
B0134.105	stainless steel	M5	M10x1,25	10	8,8	10,3	M10x1,25	12,5	7,5	4,8	B0135.805	6.66 €
B0134.106	stainless steel	M6	M12x1,25	12	10,8	12,3	M12x1,25	14,5	9,5	4,8	B0135.806	6.49 €
B0134.108	stainless steel	M8	M14x1,5	14	12,8	14,3	M14x1,5	16,5	11,5	4,8	B0135.808	6.84 €
B0134.108X1	stainless steel	M8x1	M14x1,5	14	12,8	14,3	M14x1,5	16,5	11,5	4,8	B0135.808	6.84 €
B0134.110	stainless steel	M10	M16x1,5	16	14,8	16,3	M16x1,5	18,5	13,5	4,8	B0135.810	7.84 €
B0134.110X125	stainless steel	M10x1,25	M16x1,5	16	14,8	16,3	M16x1,5	18,5	13,5	4,8	B0135.810	7.84 €
B0134.112	stainless steel	M12	M18x1,5	18	16,8	18,3	M18x1,5	20,5	15,5	4,8	B0135.812	9.99 €
B0134.112X125	stainless steel	M12x1,25	M18x1,5	18	16,8	18,3	M18x1,5	20,5	15,5	4,8	B0135.812	9.99 €
B0134.114	stainless steel	M14	M20x1,5	20	18,8	20,3	M20x1,5	22,5	17,5	4,8	B0135.814	13.01 €
B0134.114X15	stainless steel	M14x1,5	M20x1,5	20	18,8	20,3	M20x1,5	22,5	17,5	4,8	B0135.814	13.01 €
B0134.116	stainless steel	M16	M22x1,5	22	20,7	22,3	M22x1,5	24,5	17,8	6,4	B0135.816	14.41 €
B0134.116X15	stainless steel	M16x1,5	M22x1,5	22	20,7	22,3	M22x1,5	24,5	17,8	6,4	B0135.816	14.41 €
B0134.118X15	stainless steel	M18x1,5	M24x1,5	24	22,5	24,3	M24x1,5	26,5	19,8	6,4	B0135.818	20.73 €
B0134.120	stainless steel	M20	M30x2	30	28	30,3	M30x2	34,5	25,8	6,4	B0135.820	25.65 €
B0134.120X15	stainless steel	M20x1,5	M30x2	30	28	30,3	M30x2	34,5	25,8	6,4	B0135.820	25.65 €
B0134.122X15	stainless steel	M22x1,5	M32x2	32	30	32,3	M32x2	36,5	27,8	6,4	B0135.822	44.11 €
B0134.124	stainless steel	M24	M33x2	33	31	33,3	M33x2	37,5	28,8	6,4	B0135.824	55.62 €
B0134.124X2	stainless steel	M24x2	M33x2	33	31	33,3	M33x2	37,5	28,8	6,4	B0135.824	55.62 €
