K0638_AMounting bracket aluminium Form A |
go back |
|
Item description/product images |
|
|

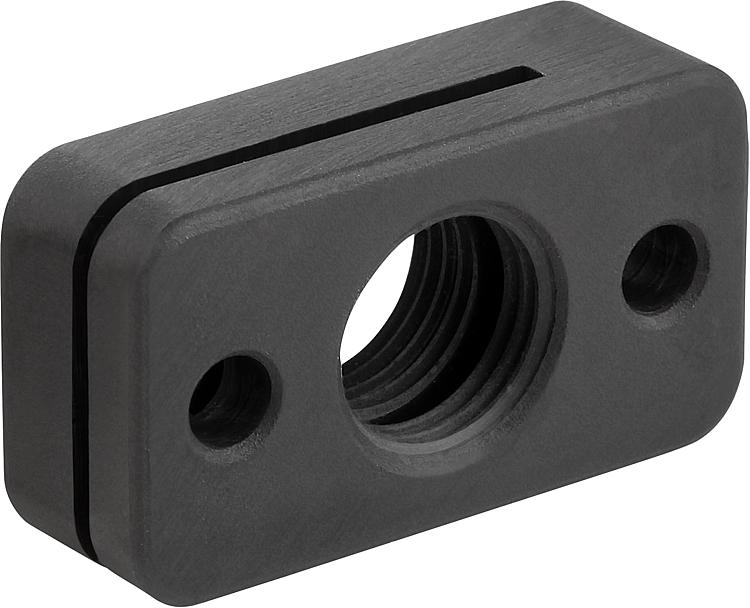

DescriptionMaterial:Aluminium 3.2163.Version:Black.Note:These mounting brackets are an assembly aid for cam-action and other indexing plungers and expand the application field. They can also be used with other elements that have a suitable thread. Fastened using DIN 912 / ISO 4762 cap screws.Special features: |
| | -
- M6
- M6x0,75
- M8
- M8x1
- M10
- M10x1
- M12
- M12x1,5
- M16
- M16x1,5
- M20
- M20x1,5
| | | | | | | | | | | | Reset |
---|
Order No. | Form | D1 | D2 | D3 | A | B | H | H1 | L | T | CAD | Acc. | Price | Order |
---|
B0066.306 | A | M6 | 4,5 | 8 | 20 | 10 | 13 | - | 30 | 3,2 | | | 2.69 €![Scaled prices](/xs_db/BILD_DB/website_norelem/www/18/www_button_price_info_off.gif) | | B0066.3061 | A | M6x0,75 | 4,5 | 8 | 20 | 10 | 13 | - | 30 | 3,2 | | | 2.69 €![Scaled prices](/xs_db/BILD_DB/website_norelem/www/18/www_button_price_info_off.gif) | | B0066.308 | A | M8 | 4,5 | 8 | 20 | 10 | 13 | - | 30 | 3,2 | | | 2.69 €![Scaled prices](/xs_db/BILD_DB/website_norelem/www/18/www_button_price_info_off.gif) | | B0066.3081 | A | M8x1 | 4,5 | 8 | 20 | 10 | 13 | - | 30 | 3,2 | | | 2.69 €![Scaled prices](/xs_db/BILD_DB/website_norelem/www/18/www_button_price_info_off.gif) | | B0066.310 | A | M10 | 5,5 | 10 | 24 | 12 | 18 | - | 37 | 3,9 | | | 3.21 €![Scaled prices](/xs_db/BILD_DB/website_norelem/www/18/www_button_price_info_off.gif) | | B0066.3101 | A | M10x1 | 5,5 | 10 | 24 | 12 | 18 | - | 37 | 3,9 | | | 3.21 €![Scaled prices](/xs_db/BILD_DB/website_norelem/www/18/www_button_price_info_off.gif) | | B0066.312 | A | M12 | 5,5 | 10 | 24 | 12 | 18 | - | 37 | 3,9 | | | 3.21 €![Scaled prices](/xs_db/BILD_DB/website_norelem/www/18/www_button_price_info_off.gif) | | B0066.3121 | A | M12x1,5 | 5,5 | 10 | 24 | 12 | 18 | - | 37 | 3,9 | | | 3.21 €![Scaled prices](/xs_db/BILD_DB/website_norelem/www/18/www_button_price_info_off.gif) | | B0066.316 | A | M16 | 5,5 | 10 | 32 | 15 | 25 | - | 46 | 3,9 | | | 4.21 €![Scaled prices](/xs_db/BILD_DB/website_norelem/www/18/www_button_price_info_off.gif) | | B0066.3161 | A | M16x1,5 | 5,5 | 10 | 32 | 15 | 25 | - | 46 | 3,9 | | | 4.21 €![Scaled prices](/xs_db/BILD_DB/website_norelem/www/18/www_button_price_info_off.gif) | | B0066.320 | A | M20 | 5,5 | 10 | 32 | 15 | 25 | - | 46 | 3,9 | | | 4.21 €![Scaled prices](/xs_db/BILD_DB/website_norelem/www/18/www_button_price_info_off.gif) | | B0066.3201 | A | M20x1,5 | 5,5 | 10 | 32 | 15 | 25 | - | 46 | 3,9 | | | 4.21 €![Scaled prices](/xs_db/BILD_DB/website_norelem/www/18/www_button_price_info_off.gif) | |
