B0535Cam-action indexing plungers with stop, stainless steel |
go back |
|
|
DescriptionProduct description:Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.
A stop at 180° prevents the lever rotating further and the indexing pin from extending again.
The rotation direction is defined by selecting a left or right stop side.Material:Grip 1.4308.
Threaded sleeve and indexing pin 1.4305.
Spring 1.4310.
Grip cap thermoplast PA.Version:Threaded sleeve and grip bright.
Indexing pin ground and left bright.
Spring bright.
Grip cap in various colours:
-black grey RAL 7021
-pure orange RAL 2004
-colza yellow RAL 1021
-traffic red RAL 3020
-signal green RAL 6032
-traffic blue RAL 5017
-light grey RAL 7035Advantages:Turning the grip through 180° retracts the pin.
Optionally available with coloured plastic grip caps.
180° stop with rotation in one direction.On request:Special versions.
Accessory:Mounting bracket B0065.
Positioning bush B0063.
Drawing reference:Form A: without grip cap or locknut

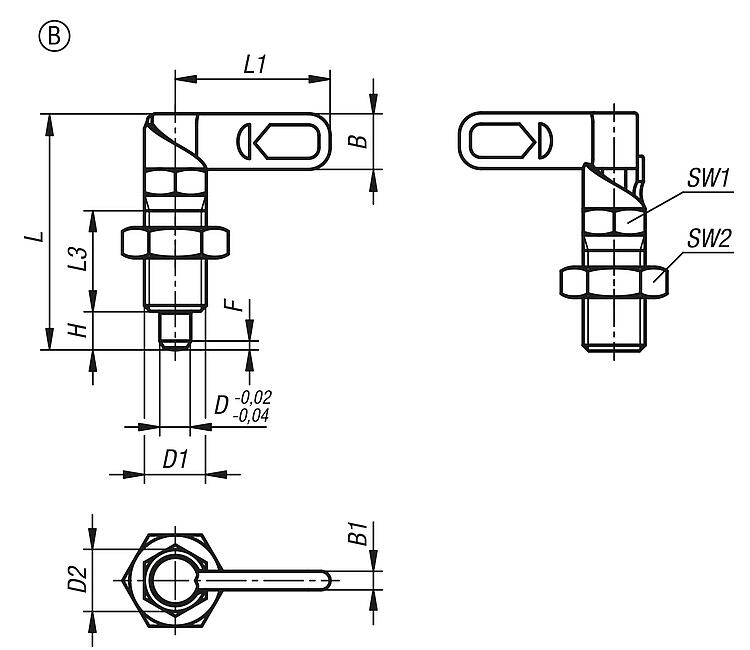

Form B: without grip cap, with locknut
Form C: with grip cap, without locknut
Form D: with grip cap and locknut

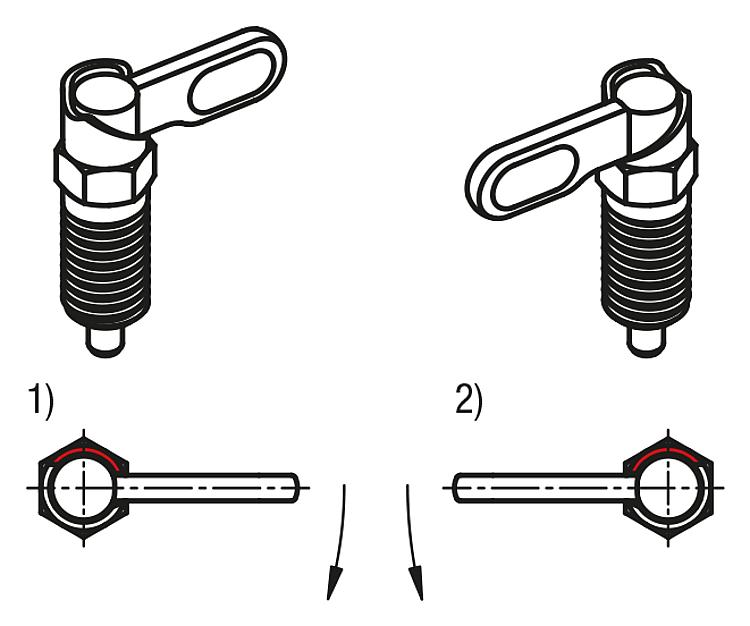

1) Stop left
2) Stop right DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

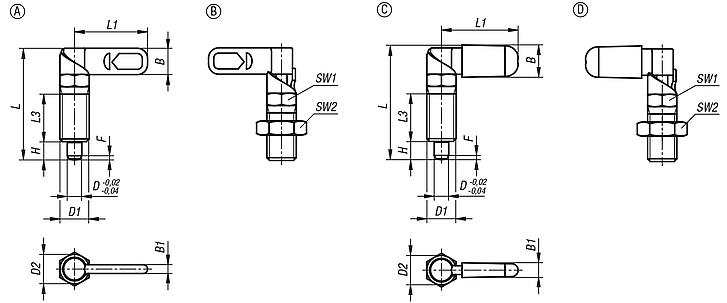

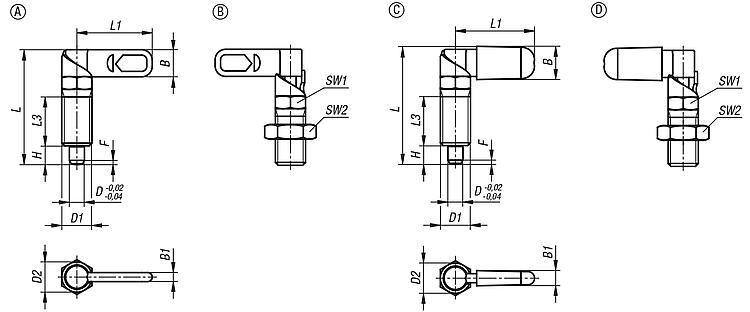

Drawings (total overview) |

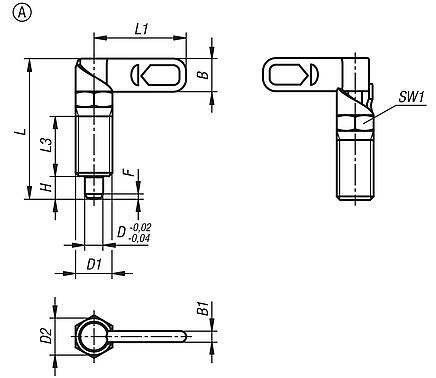

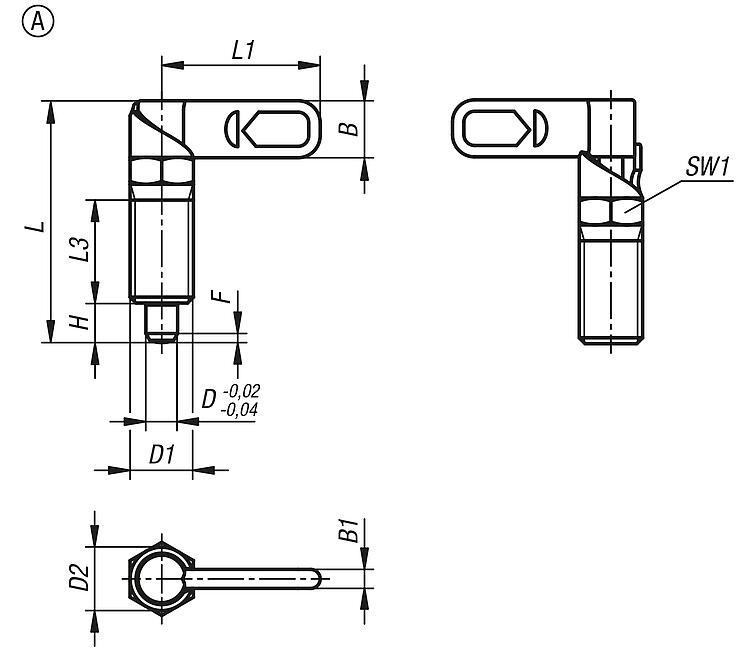

Cam-action indexing plungers with stop, stainless steel, Form A, without grip cap or nut |
More information |
| Order No. | Form | Version 2 | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0535.11040410 | A | left | 4 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 1 | 8 | 14 |  | | 16.29 € | | | B0535.11040510 | A | left | 5 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 1,3 | 8 | 14 | | | 16.29 € | | | B0535.11040610 | A | left | 6 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 1,8 | 8 | 14 | | | 16.29 € | | | B0535.11040512 | A | left | 5 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 1,3 | 5 | 15 | | | 17.78 € | | | B0535.11040612 | A | left | 6 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 1,8 | 5 | 15 | | | 17.78 € | | | B0535.11040812 | A | left | 8 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 2,3 | 5 | 15 | | | 17.78 € | | | B0535.11040616 | A | left | 6 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 1,8 | 15 | 35 | | | 19.53 € | | | B0535.11040816 | A | left | 8 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 2,3 | 15 | 35 | | | 19.53 € | | | B0535.11041016 | A | left | 10 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 2,8 | 15 | 35 | | | 19.53 € | | | B0535.110408201 | A | left | 8 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 2,3 | 20 | 60 | | | 23.22 € | | | B0535.110410201 | A | left | 10 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 2,8 | 20 | 60 | | | 23.22 € | | | B0535.110412201 | A | left | 12 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 3 | 20 | 60 | | | 23.22 € | | | B0535.21040410 | A | right | 4 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 1 | 8 | 14 | | | 16.29 € | | | B0535.21040510 | A | right | 5 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 1,3 | 8 | 14 | | | 16.29 € | | | B0535.21040610 | A | right | 6 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 1,8 | 8 | 14 | | | 16.29 € | | | B0535.21040512 | A | right | 5 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 1,3 | 5 | 15 | | | 17.78 € | | | B0535.21040612 | A | right | 6 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 1,8 | 5 | 15 | | | 17.78 € | | | B0535.21040812 | A | right | 8 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 2,3 | 5 | 15 | | | 17.78 € | | | B0535.21040616 | A | right | 6 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 1,8 | 15 | 35 | | | 19.53 € | | | B0535.21040816 | A | right | 8 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 2,3 | 15 | 35 | | | 19.53 € | | | B0535.21041016 | A | right | 10 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 2,8 | 15 | 35 | | | 19.53 € | | | B0535.210408201 | A | right | 8 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 2,3 | 20 | 60 | | | 23.22 € | | | B0535.210410201 | A | right | 10 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 2,8 | 20 | 60 | | | 23.22 € | | | B0535.210412201 | A | right | 12 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 3 | 20 | 60 | | | 23.22 € | |
|

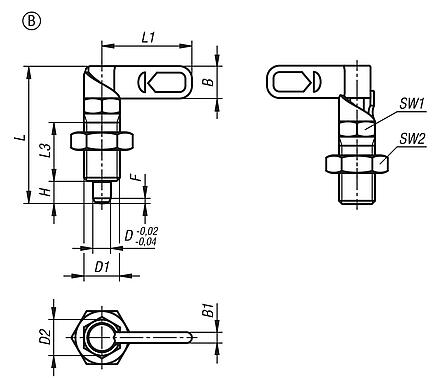

Cam-action indexing plungers with stop, stainless steel, Form B, without grip cap, with nut |
More information |
| Order No. | Form | Version 2 | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0535.11050410 | B | left | 4 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 17 | 1 | 8 | 14 | | | 16.66 € | | | B0535.11050510 | B | left | 5 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 16.66 € | | | B0535.11050610 | B | left | 6 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 16.66 € | | | B0535.11050512 | B | left | 5 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.38 € | | | B0535.11050612 | B | left | 6 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.38 € | | | B0535.11050812 | B | left | 8 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.38 € | | | B0535.11050616 | B | left | 6 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 20.63 € | | | B0535.11050816 | B | left | 8 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 20.63 € | | | B0535.11051016 | B | left | 10 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 20.63 € | | | B0535.110508201 | B | left | 8 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 25.65 € | | | B0535.110510201 | B | left | 10 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 25.65 € | | | B0535.110512201 | B | left | 12 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 30 | 3 | 20 | 60 | | | 25.65 € | | | B0535.21050410 | B | right | 4 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 17 | 1 | 8 | 14 | | | 16.66 € | | | B0535.21050510 | B | right | 5 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 16.66 € | | | B0535.21050610 | B | right | 6 | M10 | 10 | 38,5 | 25 | 15 | 9 | 3 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 16.66 € | | | B0535.21050512 | B | right | 5 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.38 € | | | B0535.21050612 | B | right | 6 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.38 € | | | B0535.21050812 | B | right | 8 | M12 | 12 | 47,4 | 30 | 19 | 10,8 | 3,6 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.38 € | | | B0535.21050616 | B | right | 6 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 20.63 € | | | B0535.21050816 | B | right | 8 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 20.63 € | | | B0535.21051016 | B | right | 10 | M16 | 16 | 61,2 | 40 | 26 | 14,4 | 4,8 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 20.63 € | | | B0535.210508201 | B | right | 8 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 25.65 € | | | B0535.210510201 | B | right | 10 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 25.65 € | | | B0535.210512201 | B | right | 12 | M20x1,5 | 20 | 71 | 50 | 30 | 18 | 6 | 12 | 20 | 30 | 3 | 20 | 60 | | | 25.65 € | |
|

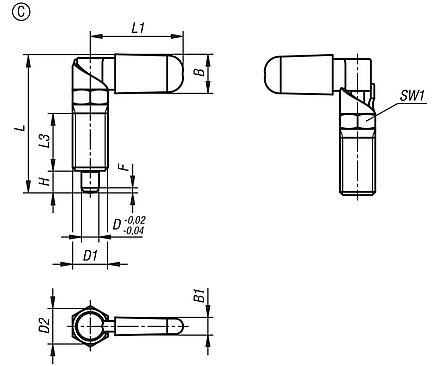

Cam-action indexing plungers with stop, stainless steel, Form C, with grip cap, without nut |
More information |
| Order No. | Form | Version 2 | Component
colour | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW1 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0535.11060410 | C | left | black grey RAL 7021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 16.90 € | | | B0535.11060510 | C | left | black grey RAL 7021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 16.90 € | | | B0535.11060610 | C | left | black grey RAL 7021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 16.90 € | | | B0535.11060512 | C | left | black grey RAL 7021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 18.39 € | | | B0535.11060612 | C | left | black grey RAL 7021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 18.39 € | | | B0535.11060812 | C | left | black grey RAL 7021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 18.39 € | | | B0535.11060616 | C | left | black grey RAL 7021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 20.15 € | | | B0535.11060816 | C | left | black grey RAL 7021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 20.15 € | | | B0535.11061016 | C | left | black grey RAL 7021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 20.15 € | | | B0535.110608201 | C | left | black grey RAL 7021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 23.82 € | | | B0535.110610201 | C | left | black grey RAL 7021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 23.82 € | | | B0535.110612201 | C | left | black grey RAL 7021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 23.82 € | | | B0535.110604102 | C | left | orange RAL 2004 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 16.90 € | | | B0535.110605102 | C | left | orange RAL 2004 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 16.90 € | | | B0535.110606102 | C | left | orange RAL 2004 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 16.90 € | | | B0535.110605122 | C | left | orange RAL 2004 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 18.39 € | | | B0535.110606122 | C | left | orange RAL 2004 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 18.39 € | | | B0535.110608122 | C | left | orange RAL 2004 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 18.39 € | | | B0535.110606162 | C | left | orange RAL 2004 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 20.15 € | | | B0535.110608162 | C | left | orange RAL 2004 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 20.15 € | | | B0535.110610162 | C | left | orange RAL 2004 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 20.15 € | | | B0535.1106082012 | C | left | orange RAL 2004 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 23.82 € | | | B0535.1106102012 | C | left | orange RAL 2004 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 23.82 € | | | B0535.1106122012 | C | left | orange RAL 2004 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 23.82 € | | | B0535.1106041016 | C | left | colza yellow RAL 1021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 16.90 € | | | B0535.1106051016 | C | left | colza yellow RAL 1021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 16.90 € | | | B0535.1106061016 | C | left | colza yellow RAL 1021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 16.90 € | | | B0535.1106051216 | C | left | colza yellow RAL 1021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 18.39 € | | | B0535.1106061216 | C | left | colza yellow RAL 1021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 18.39 € | | | B0535.1106081216 | C | left | colza yellow RAL 1021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 18.39 € | | | B0535.1106061616 | C | left | colza yellow RAL 1021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 20.15 € | | | B0535.1106081616 | C | left | colza yellow RAL 1021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 20.15 € | | | B0535.1106101616 | C | left | colza yellow RAL 1021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 20.15 € | | | B0535.11060820116 | C | left | colza yellow RAL 1021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 23.82 € | | | B0535.11061020116 | C | left | colza yellow RAL 1021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 23.82 € | | | B0535.11061220116 | C | left | colza yellow RAL 1021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 23.82 € | | | B0535.1106041084 | C | left | traffic red RAL 3020 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 16.90 € | | | B0535.1106051084 | C | left | traffic red RAL 3020 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 16.90 € | | | B0535.1106061084 | C | left | traffic red RAL 3020 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 16.90 € | | | B0535.1106051284 | C | left | traffic red RAL 3020 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 18.39 € | | | B0535.1106061284 | C | left | traffic red RAL 3020 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 18.39 € | | | B0535.1106081284 | C | left | traffic red RAL 3020 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 18.39 € | | | B0535.1106061684 | C | left | traffic red RAL 3020 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 20.15 € | | | B0535.1106081684 | C | left | traffic red RAL 3020 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 20.15 € | | | B0535.1106101684 | C | left | traffic red RAL 3020 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 20.15 € | | | B0535.11060820184 | C | left | traffic red RAL 3020 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 23.82 € | | | B0535.11061020184 | C | left | traffic red RAL 3020 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 23.82 € | | | B0535.11061220184 | C | left | traffic red RAL 3020 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 23.82 € | | | B0535.1106041086 | C | left | signal green RAL 6032 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 16.90 € | | | B0535.1106051086 | C | left | signal green RAL 6032 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 16.90 € | | | B0535.1106061086 | C | left | signal green RAL 6032 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 16.90 € | | | B0535.1106051286 | C | left | signal green RAL 6032 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 18.39 € | | | B0535.1106061286 | C | left | signal green RAL 6032 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 18.39 € | | | B0535.1106081286 | C | left | signal green RAL 6032 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 18.39 € | | | B0535.1106061686 | C | left | signal green RAL 6032 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 20.15 € | | | B0535.1106081686 | C | left | signal green RAL 6032 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 20.15 € | | | B0535.1106101686 | C | left | signal green RAL 6032 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 20.15 € | | | B0535.11060820186 | C | left | signal green RAL 6032 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 23.82 € | | | B0535.11061020186 | C | left | signal green RAL 6032 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 23.82 € | | | B0535.11061220186 | C | left | signal green RAL 6032 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 23.82 € | | | B0535.1106041087 | C | left | traffic blue RAL 5017 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 16.90 € | | | B0535.1106051087 | C | left | traffic blue RAL 5017 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 16.90 € | | | B0535.1106061087 | C | left | traffic blue RAL 5017 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 16.90 € | | | B0535.1106051287 | C | left | traffic blue RAL 5017 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 18.39 € | | | B0535.1106061287 | C | left | traffic blue RAL 5017 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 18.39 € | | | B0535.1106081287 | C | left | traffic blue RAL 5017 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 18.39 € | | | B0535.1106061687 | C | left | traffic blue RAL 5017 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 20.15 € | | | B0535.1106081687 | C | left | traffic blue RAL 5017 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 20.15 € | | | B0535.1106101687 | C | left | traffic blue RAL 5017 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 20.15 € | | | B0535.11060820187 | C | left | traffic blue RAL 5017 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 23.82 € | | | B0535.11061020187 | C | left | traffic blue RAL 5017 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 23.82 € | | | B0535.11061220187 | C | left | traffic blue RAL 5017 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 23.82 € | | | B0535.1106041088 | C | left | light grey RAL 7035 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 16.90 € | | | B0535.1106051088 | C | left | light grey RAL 7035 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 16.90 € | | | B0535.1106061088 | C | left | light grey RAL 7035 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 16.90 € | | | B0535.1106051288 | C | left | light grey RAL 7035 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 18.39 € | | | B0535.1106061288 | C | left | light grey RAL 7035 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 18.39 € | | | B0535.1106081288 | C | left | light grey RAL 7035 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 18.39 € | | | B0535.1106061688 | C | left | light grey RAL 7035 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 20.15 € | | | B0535.1106081688 | C | left | light grey RAL 7035 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 20.15 € | | | B0535.1106101688 | C | left | light grey RAL 7035 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 20.15 € | | | B0535.11060820188 | C | left | light grey RAL 7035 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 23.82 € | | | B0535.11061020188 | C | left | light grey RAL 7035 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 23.82 € | | | B0535.11061220188 | C | left | light grey RAL 7035 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 23.82 € | | | B0535.21060410 | C | right | black grey RAL 7021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 16.90 € | | | B0535.21060510 | C | right | black grey RAL 7021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 16.90 € | | | B0535.21060610 | C | right | black grey RAL 7021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 16.90 € | | | B0535.21060512 | C | right | black grey RAL 7021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 18.39 € | | | B0535.21060612 | C | right | black grey RAL 7021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 18.39 € | | | B0535.21060812 | C | right | black grey RAL 7021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 18.39 € | | | B0535.21060616 | C | right | black grey RAL 7021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 20.15 € | | | B0535.21060816 | C | right | black grey RAL 7021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 20.15 € | | | B0535.21061016 | C | right | black grey RAL 7021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 20.15 € | | | B0535.210608201 | C | right | black grey RAL 7021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 23.82 € | | | B0535.210610201 | C | right | black grey RAL 7021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 23.82 € | | | B0535.210612201 | C | right | black grey RAL 7021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 23.82 € | | | B0535.210604102 | C | right | orange RAL 2004 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 16.90 € | | | B0535.210605102 | C | right | orange RAL 2004 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 16.90 € | | | B0535.210606102 | C | right | orange RAL 2004 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 16.90 € | | | B0535.210605122 | C | right | orange RAL 2004 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 18.39 € | | | B0535.210606122 | C | right | orange RAL 2004 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 18.39 € | | | B0535.210608122 | C | right | orange RAL 2004 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 18.39 € | | | B0535.210606162 | C | right | orange RAL 2004 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 20.15 € | | | B0535.210608162 | C | right | orange RAL 2004 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 20.15 € | | | B0535.210610162 | C | right | orange RAL 2004 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 20.15 € | | | B0535.2106082012 | C | right | orange RAL 2004 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 23.82 € | | | B0535.2106102012 | C | right | orange RAL 2004 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 23.82 € | | | B0535.2106122012 | C | right | orange RAL 2004 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 23.82 € | | | B0535.2106041016 | C | right | colza yellow RAL 1021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 16.90 € | | | B0535.2106051016 | C | right | colza yellow RAL 1021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 16.90 € | | | B0535.2106061016 | C | right | colza yellow RAL 1021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 16.90 € | | | B0535.2106051216 | C | right | colza yellow RAL 1021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 18.39 € | | | B0535.2106061216 | C | right | colza yellow RAL 1021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 18.39 € | | | B0535.2106081216 | C | right | colza yellow RAL 1021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 18.39 € | | | B0535.2106061616 | C | right | colza yellow RAL 1021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 20.15 € | | | B0535.2106081616 | C | right | colza yellow RAL 1021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 20.15 € | | | B0535.2106101616 | C | right | colza yellow RAL 1021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 20.15 € | | | B0535.21060820116 | C | right | colza yellow RAL 1021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 23.82 € | | | B0535.21061020116 | C | right | colza yellow RAL 1021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 23.82 € | | | B0535.21061220116 | C | right | colza yellow RAL 1021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 23.82 € | | | B0535.2106041084 | C | right | traffic red RAL 3020 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 16.90 € | | | B0535.2106051084 | C | right | traffic red RAL 3020 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 16.90 € | | | B0535.2106061084 | C | right | traffic red RAL 3020 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 16.90 € | | | B0535.2106051284 | C | right | traffic red RAL 3020 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 18.39 € | | | B0535.2106061284 | C | right | traffic red RAL 3020 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 18.39 € | | | B0535.2106081284 | C | right | traffic red RAL 3020 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 18.39 € | | | B0535.2106061684 | C | right | traffic red RAL 3020 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 20.15 € | | | B0535.2106081684 | C | right | traffic red RAL 3020 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 20.15 € | | | B0535.2106101684 | C | right | traffic red RAL 3020 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 20.15 € | | | B0535.21060820184 | C | right | traffic red RAL 3020 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 23.82 € | | | B0535.21061020184 | C | right | traffic red RAL 3020 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 23.82 € | | | B0535.21061220184 | C | right | traffic red RAL 3020 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 23.82 € | | | B0535.2106041086 | C | right | signal green RAL 6032 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 16.90 € | | | B0535.2106051086 | C | right | signal green RAL 6032 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 16.90 € | | | B0535.2106061086 | C | right | signal green RAL 6032 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 16.90 € | | | B0535.2106051286 | C | right | signal green RAL 6032 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 18.39 € | | | B0535.2106061286 | C | right | signal green RAL 6032 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 18.39 € | | | B0535.2106081286 | C | right | signal green RAL 6032 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 18.39 € | | | B0535.2106061686 | C | right | signal green RAL 6032 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 20.15 € | | | B0535.2106081686 | C | right | signal green RAL 6032 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 20.15 € | | | B0535.2106101686 | C | right | signal green RAL 6032 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 20.15 € | | | B0535.21060820186 | C | right | signal green RAL 6032 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 23.82 € | | | B0535.21061020186 | C | right | signal green RAL 6032 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 23.82 € | | | B0535.21061220186 | C | right | signal green RAL 6032 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 23.82 € | | | B0535.2106041087 | C | right | traffic blue RAL 5017 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 16.90 € | | | B0535.2106051087 | C | right | traffic blue RAL 5017 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 16.90 € | | | B0535.2106061087 | C | right | traffic blue RAL 5017 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 16.90 € | | | B0535.2106051287 | C | right | traffic blue RAL 5017 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 18.39 € | | | B0535.2106061287 | C | right | traffic blue RAL 5017 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 18.39 € | | | B0535.2106081287 | C | right | traffic blue RAL 5017 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 18.39 € | | | B0535.2106061687 | C | right | traffic blue RAL 5017 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 20.15 € | | | B0535.2106081687 | C | right | traffic blue RAL 5017 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 20.15 € | | | B0535.2106101687 | C | right | traffic blue RAL 5017 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 20.15 € | | | B0535.21060820187 | C | right | traffic blue RAL 5017 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 23.82 € | | | B0535.21061020187 | C | right | traffic blue RAL 5017 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 23.82 € | | | B0535.21061220187 | C | right | traffic blue RAL 5017 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 23.82 € | | | B0535.2106041088 | C | right | light grey RAL 7035 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1 | 8 | 14 | | | 16.90 € | | | B0535.2106051088 | C | right | light grey RAL 7035 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,3 | 8 | 14 | | | 16.90 € | | | B0535.2106061088 | C | right | light grey RAL 7035 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 1,8 | 8 | 14 | | | 16.90 € | | | B0535.2106051288 | C | right | light grey RAL 7035 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,3 | 5 | 15 | | | 18.39 € | | | B0535.2106061288 | C | right | light grey RAL 7035 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 1,8 | 5 | 15 | | | 18.39 € | | | B0535.2106081288 | C | right | light grey RAL 7035 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 2,3 | 5 | 15 | | | 18.39 € | | | B0535.2106061688 | C | right | light grey RAL 7035 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 1,8 | 15 | 35 | | | 20.15 € | | | B0535.2106081688 | C | right | light grey RAL 7035 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,3 | 15 | 35 | | | 20.15 € | | | B0535.2106101688 | C | right | light grey RAL 7035 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 2,8 | 15 | 35 | | | 20.15 € | | | B0535.21060820188 | C | right | light grey RAL 7035 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,3 | 20 | 60 | | | 23.82 € | | | B0535.21061020188 | C | right | light grey RAL 7035 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 2,8 | 20 | 60 | | | 23.82 € | | | B0535.21061220188 | C | right | light grey RAL 7035 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 3 | 20 | 60 | | | 23.82 € | |
|

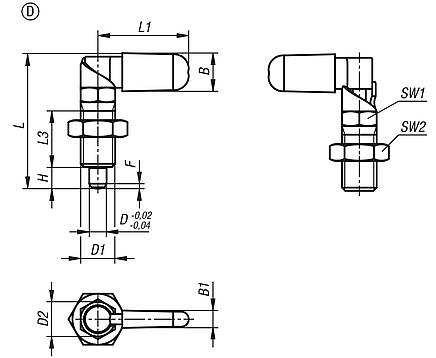

Cam-action indexing plungers with stop, stainless steel, Form D, with grip cap and nut |
More information |
| Order No. | Form | Version 2 | Component
colour | D | D1 | D2 | L | L1 | L3 | B | B1 | H | SW1 | SW2 | Fx30° | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0535.11070410 | D | left | black grey RAL 7021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.11070510 | D | left | black grey RAL 7021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.11070610 | D | left | black grey RAL 7021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.11070512 | D | left | black grey RAL 7021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.11070612 | D | left | black grey RAL 7021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.11070812 | D | left | black grey RAL 7021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.11070616 | D | left | black grey RAL 7021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.11070816 | D | left | black grey RAL 7021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.11071016 | D | left | black grey RAL 7021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.110708201 | D | left | black grey RAL 7021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.110710201 | D | left | black grey RAL 7021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.110712201 | D | left | black grey RAL 7021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.110704102 | D | left | orange RAL 2004 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.110705102 | D | left | orange RAL 2004 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.110706102 | D | left | orange RAL 2004 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.110705122 | D | left | orange RAL 2004 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.110706122 | D | left | orange RAL 2004 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.110708122 | D | left | orange RAL 2004 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.110706162 | D | left | orange RAL 2004 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.110708162 | D | left | orange RAL 2004 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.110710162 | D | left | orange RAL 2004 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.1107082012 | D | left | orange RAL 2004 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.1107102012 | D | left | orange RAL 2004 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.1107122012 | D | left | orange RAL 2004 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.1107041016 | D | left | colza yellow RAL 1021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.1107051016 | D | left | colza yellow RAL 1021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.1107061016 | D | left | colza yellow RAL 1021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.1107051216 | D | left | colza yellow RAL 1021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061216 | D | left | colza yellow RAL 1021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.1107081216 | D | left | colza yellow RAL 1021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061616 | D | left | colza yellow RAL 1021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.1107081616 | D | left | colza yellow RAL 1021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.1107101616 | D | left | colza yellow RAL 1021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.11070820116 | D | left | colza yellow RAL 1021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.11071020116 | D | left | colza yellow RAL 1021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.11071220116 | D | left | colza yellow RAL 1021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.1107041084 | D | left | traffic red RAL 3020 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.1107051084 | D | left | traffic red RAL 3020 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.1107061084 | D | left | traffic red RAL 3020 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.1107051284 | D | left | traffic red RAL 3020 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061284 | D | left | traffic red RAL 3020 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.1107081284 | D | left | traffic red RAL 3020 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061684 | D | left | traffic red RAL 3020 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.1107081684 | D | left | traffic red RAL 3020 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.1107101684 | D | left | traffic red RAL 3020 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.11070820184 | D | left | traffic red RAL 3020 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.11071020184 | D | left | traffic red RAL 3020 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.11071220184 | D | left | traffic red RAL 3020 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.1107041086 | D | left | signal green RAL 6032 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.1107051086 | D | left | signal green RAL 6032 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.1107061086 | D | left | signal green RAL 6032 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.1107051286 | D | left | signal green RAL 6032 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061286 | D | left | signal green RAL 6032 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.1107081286 | D | left | signal green RAL 6032 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061686 | D | left | signal green RAL 6032 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.1107081686 | D | left | signal green RAL 6032 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.1107101686 | D | left | signal green RAL 6032 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.11070820186 | D | left | signal green RAL 6032 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.11071020186 | D | left | signal green RAL 6032 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.11071220186 | D | left | signal green RAL 6032 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.1107041087 | D | left | traffic blue RAL 5017 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.1107051087 | D | left | traffic blue RAL 5017 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.1107061087 | D | left | traffic blue RAL 5017 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.1107051287 | D | left | traffic blue RAL 5017 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061287 | D | left | traffic blue RAL 5017 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.1107081287 | D | left | traffic blue RAL 5017 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061687 | D | left | traffic blue RAL 5017 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.1107081687 | D | left | traffic blue RAL 5017 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.1107101687 | D | left | traffic blue RAL 5017 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.11070820187 | D | left | traffic blue RAL 5017 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.11071020187 | D | left | traffic blue RAL 5017 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.11071220187 | D | left | traffic blue RAL 5017 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.1107041088 | D | left | light grey RAL 7035 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.1107051088 | D | left | light grey RAL 7035 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.1107061088 | D | left | light grey RAL 7035 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.1107051288 | D | left | light grey RAL 7035 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061288 | D | left | light grey RAL 7035 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.1107081288 | D | left | light grey RAL 7035 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.1107061688 | D | left | light grey RAL 7035 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.1107081688 | D | left | light grey RAL 7035 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.1107101688 | D | left | light grey RAL 7035 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.11070820188 | D | left | light grey RAL 7035 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.11071020188 | D | left | light grey RAL 7035 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.11071220188 | D | left | light grey RAL 7035 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.21070410 | D | right | black grey RAL 7021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.21070510 | D | right | black grey RAL 7021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.21070610 | D | right | black grey RAL 7021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.21070512 | D | right | black grey RAL 7021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.21070612 | D | right | black grey RAL 7021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.21070812 | D | right | black grey RAL 7021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.21070616 | D | right | black grey RAL 7021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.21070816 | D | right | black grey RAL 7021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.21071016 | D | right | black grey RAL 7021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.210708201 | D | right | black grey RAL 7021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.210710201 | D | right | black grey RAL 7021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.210712201 | D | right | black grey RAL 7021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.210704102 | D | right | orange RAL 2004 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.210705102 | D | right | orange RAL 2004 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.210706102 | D | right | orange RAL 2004 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.210705122 | D | right | orange RAL 2004 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.210706122 | D | right | orange RAL 2004 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.210708122 | D | right | orange RAL 2004 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.210706162 | D | right | orange RAL 2004 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.210708162 | D | right | orange RAL 2004 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.210710162 | D | right | orange RAL 2004 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.2107082012 | D | right | orange RAL 2004 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.2107102012 | D | right | orange RAL 2004 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.2107122012 | D | right | orange RAL 2004 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.2107041016 | D | right | colza yellow RAL 1021 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.2107051016 | D | right | colza yellow RAL 1021 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.2107061016 | D | right | colza yellow RAL 1021 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.2107051216 | D | right | colza yellow RAL 1021 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061216 | D | right | colza yellow RAL 1021 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.2107081216 | D | right | colza yellow RAL 1021 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061616 | D | right | colza yellow RAL 1021 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.2107081616 | D | right | colza yellow RAL 1021 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.2107101616 | D | right | colza yellow RAL 1021 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.21070820116 | D | right | colza yellow RAL 1021 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.21071020116 | D | right | colza yellow RAL 1021 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.21071220116 | D | right | colza yellow RAL 1021 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.2107041084 | D | right | traffic red RAL 3020 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.2107051084 | D | right | traffic red RAL 3020 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.2107061084 | D | right | traffic red RAL 3020 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.2107051284 | D | right | traffic red RAL 3020 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061284 | D | right | traffic red RAL 3020 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.2107081284 | D | right | traffic red RAL 3020 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061684 | D | right | traffic red RAL 3020 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.2107081684 | D | right | traffic red RAL 3020 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.2107101684 | D | right | traffic red RAL 3020 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.21070820184 | D | right | traffic red RAL 3020 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.21071020184 | D | right | traffic red RAL 3020 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.21071220184 | D | right | traffic red RAL 3020 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.2107041086 | D | right | signal green RAL 6032 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.2107051086 | D | right | signal green RAL 6032 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.2107061086 | D | right | signal green RAL 6032 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.2107051286 | D | right | signal green RAL 6032 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061286 | D | right | signal green RAL 6032 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.2107081286 | D | right | signal green RAL 6032 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061686 | D | right | signal green RAL 6032 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.2107081686 | D | right | signal green RAL 6032 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.2107101686 | D | right | signal green RAL 6032 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.21070820186 | D | right | signal green RAL 6032 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.21071020186 | D | right | signal green RAL 6032 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.21071220186 | D | right | signal green RAL 6032 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.2107041087 | D | right | traffic blue RAL 5017 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.2107051087 | D | right | traffic blue RAL 5017 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.2107061087 | D | right | traffic blue RAL 5017 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.2107051287 | D | right | traffic blue RAL 5017 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061287 | D | right | traffic blue RAL 5017 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.2107081287 | D | right | traffic blue RAL 5017 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061687 | D | right | traffic blue RAL 5017 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.2107081687 | D | right | traffic blue RAL 5017 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.2107101687 | D | right | traffic blue RAL 5017 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.21070820187 | D | right | traffic blue RAL 5017 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.21071020187 | D | right | traffic blue RAL 5017 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.21071220187 | D | right | traffic blue RAL 5017 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | | | B0535.2107041088 | D | right | light grey RAL 7035 | 4 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1 | 8 | 14 | | | 17.27 € | | | B0535.2107051088 | D | right | light grey RAL 7035 | 5 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,3 | 8 | 14 | | | 17.27 € | | | B0535.2107061088 | D | right | light grey RAL 7035 | 6 | M10 | 10 | 39,5 | 26,3 | 15 | 10,9 | 4,9 | 6 | 10 | 17 | 1,8 | 8 | 14 | | | 17.27 € | | | B0535.2107051288 | D | right | light grey RAL 7035 | 5 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061288 | D | right | light grey RAL 7035 | 6 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 1,8 | 5 | 15 | | | 18.99 € | | | B0535.2107081288 | D | right | light grey RAL 7035 | 8 | M12 | 12 | 48,4 | 31,1 | 19 | 12,9 | 5,7 | 8 | 12 | 19 | 2,3 | 5 | 15 | | | 18.99 € | | | B0535.2107061688 | D | right | light grey RAL 7035 | 6 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 1,8 | 15 | 35 | | | 21.24 € | | | B0535.2107081688 | D | right | light grey RAL 7035 | 8 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,3 | 15 | 35 | | | 21.24 € | | | B0535.2107101688 | D | right | light grey RAL 7035 | 10 | M16 | 16 | 62,8 | 41,5 | 26 | 16,6 | 7 | 10 | 16 | 24 | 2,8 | 15 | 35 | | | 21.24 € | | | B0535.21070820188 | D | right | light grey RAL 7035 | 8 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,3 | 20 | 60 | | | 26.25 € | | | B0535.21071020188 | D | right | light grey RAL 7035 | 10 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 2,8 | 20 | 60 | | | 26.25 € | | | B0535.21071220188 | D | right | light grey RAL 7035 | 12 | M20x1,5 | 20 | 72,3 | 51,3 | 30 | 20,5 | 8,5 | 12 | 20 | 30 | 3 | 20 | 60 | | | 26.25 € | |
|
