DescriptionMaterial:Steel.Version:Black oxidised.Note:These mounting brackets are assembly aids for cam-action indexing plungers and extend their application field. They can also be used with other indexing plungers or other elements that have a suitable thread. Fastened using cap screws.Drawing reference:

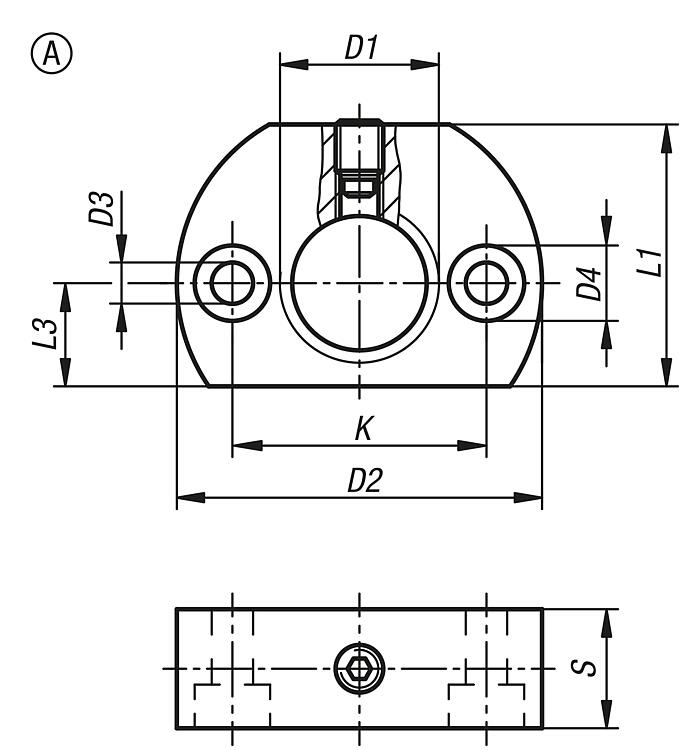

Form A: fastening holes parallel to indexing plunger

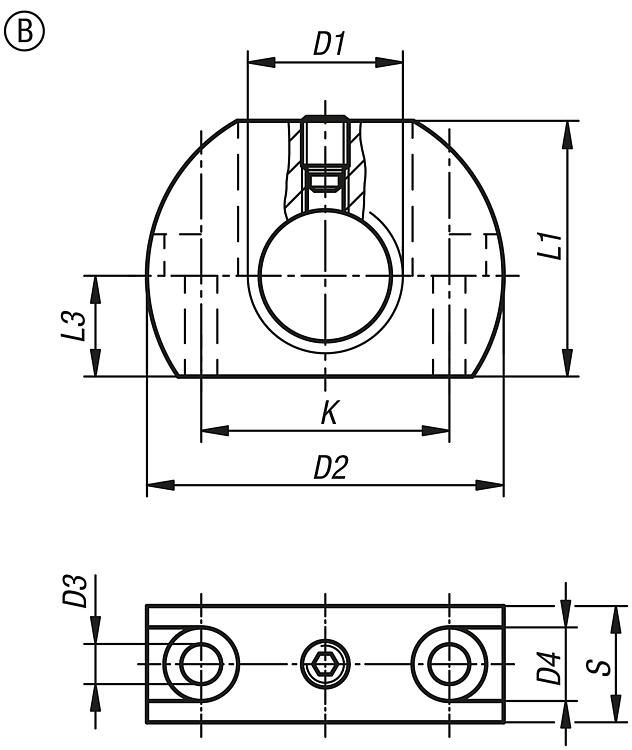

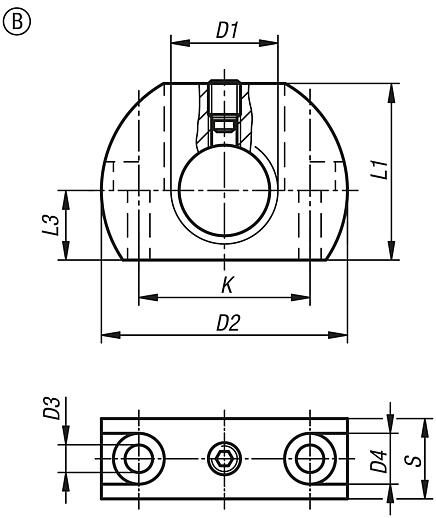

Form B: fastening holes perpendicular to indexing plunger
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0065 Mounting brackets 204 kB

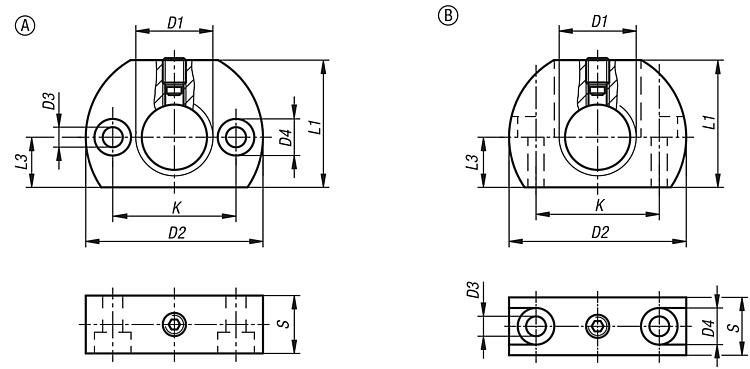

Drawings (total overview)

Mounting brackets

Mounting brackets, Form A

More information

Drawings

Mounting brackets, Form A

Item selection/filter

Order No.

FormD1D2D3D4KL1L3SCADAcc.PriceOrder
B0065.112AM12365,510242510129.41 €
B0065.1121AM12x1,5365,510242510129.41 €
B0065.116AM16465,5103233131510.21 €
B0065.1161AM16x1,5465,5103233131510.21 €
B0065.120AM20465,5103233131512.63 €
B0065.1201AM20x1,5465,5103233131510.21 €

Mounting brackets, Form B

More information

Drawings

Mounting brackets, Form B

Item selection/filter

Order No.

FormD1D2D3D4KL1L3SCADAcc.PriceOrder
B0065.212BM12365,5102425101212.42 €
B0065.2121BM12x1,5365,5102425101212.42 €
B0065.216BM16465,5103233131512.32 €
B0065.2161BM16x1,5465,5103233131512.32 €
B0065.220BM20465,5103233131514.18 €
B0065.2201BM20x1,5465,5103233131511.96 €
