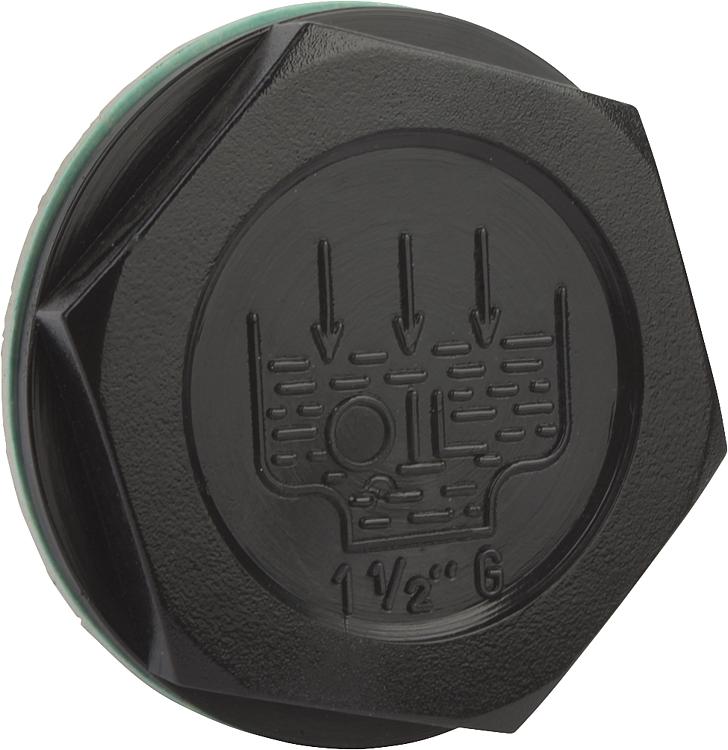

B0477Screw plugs Form A, with fill symbol |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Thermoplastic polyamide 66Version:Black. Flat seal asbestos-freeTemperature range:Temperature resistant with oil up to 100°C.Drawing reference: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | D | D1 | L | L1 | SW | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| B0477.119014 | A | 19,5 | G1/4 | 7 | 9 | 17 | 5 |  | | 0.43 € | | | B0477.122038 | A | 22 | G3/8 | 7,5 | 10 | 18 | 8 | | | 0.50 € | | | B0477.128012 | A | 28 | G1/2 | 7,5 | 11 | 24 | 9 | | | 0.57 € | | | B0477.134034 | A | 34 | G3/4 | 9 | 11 | 30 | 11 | | | 0.80 € | | | B0477.142100 | A | 42 | G1 | 10,5 | 12 | 35 | - | | | 1.13 € | | | B0477.151114 | A | 51 | G1 1/4 | 12 | 13,5 | 42 | - | | | 1.63 € | | | B0477.158112 | A | 58 | G1 1/2 | 10 | 14,5 | 50 | - | | | 1.85 € | | | B0477.174200 | A | 74 | G2 | 13,5 | 16 | 64 | - | | | 3.07 € | | | B0477.1191415 | A | 19,5 | M14X1,5 | 7 | 8 | 17 | 5 | | | 0.43 € | | | B0477.1211615 | A | 21 | M16X1,5 | 7,5 | 10 | 18 | 6 | | | 0.50 € | | | B0477.1261815 | A | 26 | M18X1,5 | 7,5 | 10 | 21 | 7 | | | 0.53 € | | | B0477.1282015 | A | 28 | M20X1,5 | 8 | 10 | 24 | 8 | | | 0.57 € | | | B0477.1282215 | A | 28 | M22X1,5 | 8 | 11 | 24 | 10 | | | 0.57 € | | | B0477.1524015 | A | 52 | M40X1,5 | 10 | 13 | 42 | - | | | 1.45 € | |
