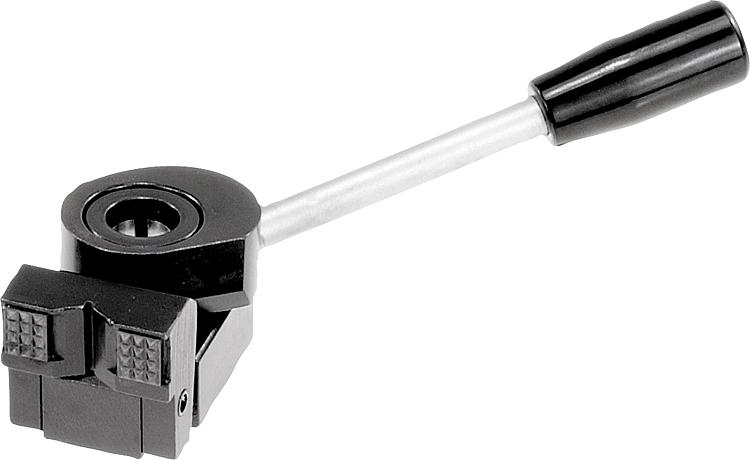

DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:This is a quick-action side clamp where workpieces are clamped by rotating a cam wheel which exerts pressure on the swivel jaw, simultaneously producing a positive down force.
Using the centring bush (see diagram), the side clamp can be mounted and positioned on a modular grid system.
The versions B0404.006010, B0404.006015, B0404.006030 and B0404.006035 have 2 round carbide inserts.Clamping force:B0404.006... = 3800 N
B0404.010... = 7200 N DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Form | Version 1 | A | B | D | D1 | D2
max. | D3
min. | E | H | H1 | K | L | L1 | L2 | L3 | R | F=Retaining
force N | CAD | Acc. | Price | Order |
|---|
| B0404.006015 | C | right | 38,5 | 25 | 12 | M6 | 9,5 | 2,5 | ø8 | 24 | 45 | 3,5 | 22 | 20 | 17 | 4 | 110 | 3800 |  | | 112.01 € | | | B0404.010015 | C | right | 58,5 | 40 | 18 | M10 | 27 | 4,5 | 12,7 | 39 | 74 | 5,5 | 37 | 31,5 | 27 | 6 | 143 | 7200 | | | 181.24 € | | | B0404.006035 | C | left | 38,5 | 25 | 12 | M6 | 9,5 | 2,5 | ø8 | 24 | 45 | 3,5 | 22 | 20 | 17 | 4 | 110 | 3800 | | | 112.01 € | | | B0404.010035 | C | left | 58,5 | 40 | 18 | M10 | 27 | 4,5 | 12,7 | 39 | 74 | 5,5 | 37 | 31,5 | 27 | 6 | 143 | 7200 | | | 181.24 € | |
