Item description/product images |
|
|

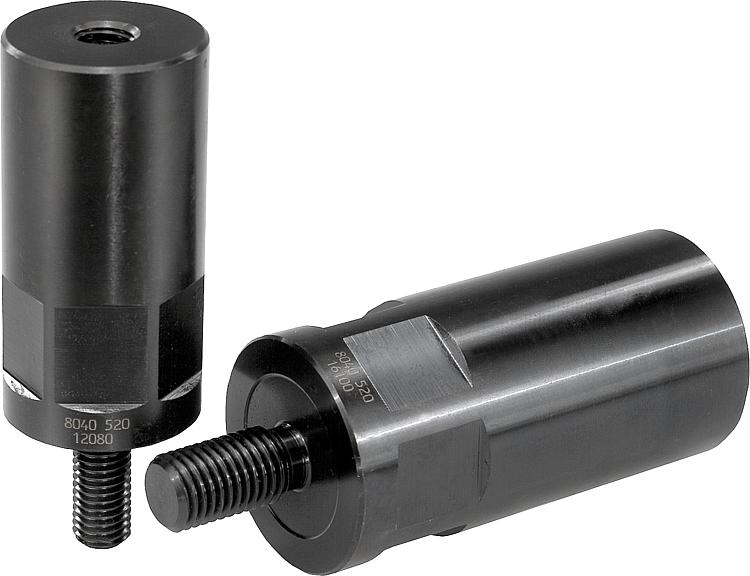

DescriptionMaterial:Carbon steel.Version:Black oxidised.Note:The height of the hook clamps and hook clamp holders can be raised using these riser bars.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

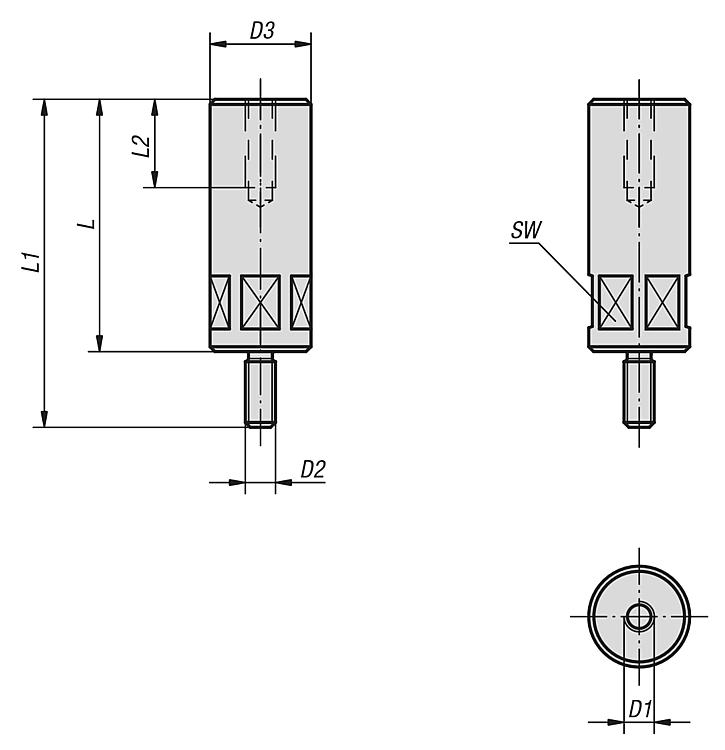

| Order No. | D1 | D2 | D3 | L
| L1 | L2 | SW | Tightening
torque
max. Nm
| CAD | Acc. | Price | Order |
|---|
| B0414.08032 | M8 | M8 | 24 | 32 | 51 | 20 | 22 | 29,4 |  | | 15.07 € | | | B0414.08040 | M8 | M8 | 24 | 40 | 59 | 20 | 22 | 29,4 | | | 15.35 € | | | B0414.08050 | M8 | M8 | 24 | 50 | 69 | 20 | 22 | 29,4 | | | 15.61 € | | | B0414.08065 | M8 | M8 | 24 | 65 | 84 | 20 | 22 | 29,4 | | | 16.02 € | | | B0414.12050 | M12 | M12 | 40 | 50 | 80 | 35 | 36 | 49 | | | 24.06 € | | | B0414.12065 | M12 | M12 | 40 | 65 | 95 | 35 | 36 | 49 | | | 24.56 € | | | B0414.12080 | M12 | M12 | 40 | 80 | 110 | 35 | 36 | 49 | | | 26.09 € | | | B0414.12100 | M12 | M12 | 40 | 100 | 130 | 35 | 36 | 49 | | | 28.26 € | | | B0414.12125 | M12 | M12 | 40 | 125 | 155 | 35 | 36 | 49 | | | 30.95 € | | | B0414.12160 | M12 | M12 | 40 | 160 | 190 | 35 | 36 | 49 | | | 34.38 € | | | B0414.12200 | M12 | M12 | 40 | 200 | 230 | 35 | 36 | 49 | | | 39.07 € | | | B0414.16050 | M16 | M16 | 50 | 50 | 80 | 35 | 46 | 78,4 | | | 27.95 € | | | B0414.16065 | M16 | M16 | 50 | 65 | 95 | 35 | 46 | 78,4 | | | 30.02 € | | | B0414.16080 | M16 | M16 | 50 | 80 | 110 | 35 | 46 | 78,4 | | | 32.36 € | | | B0414.16100 | M16 | M16 | 50 | 100 | 130 | 35 | 46 | 78,4 | | | 35.14 € | | | B0414.16125 | M16 | M16 | 50 | 125 | 155 | 35 | 46 | 78,4 | | | 39.75 € | | | B0414.16160 | M16 | M16 | 60 | 160 | 190 | 35 | 55 | 78,4 | | | 52.19 € | | | B0414.16200 | M16 | M16 | 60 | 200 | 230 | 35 | 55 | 78,4 | | | 61.24 € | |
