B0412

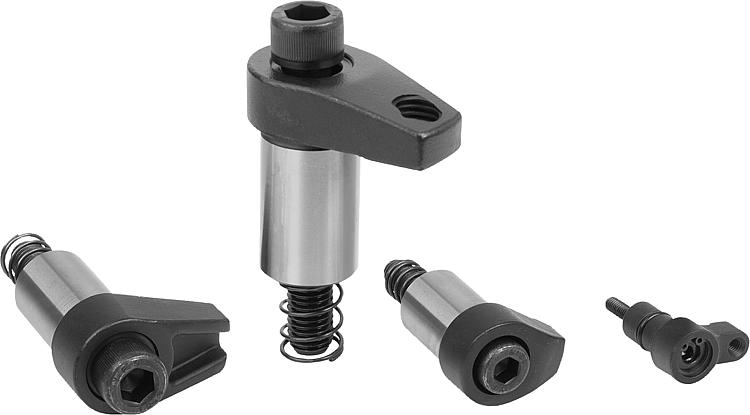

Hook clamps

go back

Products
- Product overview
  - Clamping elements
    - Hook clamps
      - Hook clamps

Item description/product images

Show/filter all items

DescriptionMaterial:Carbon steel, tempered.Version:Form A-C: black oxidised. Shaft diameter ground.

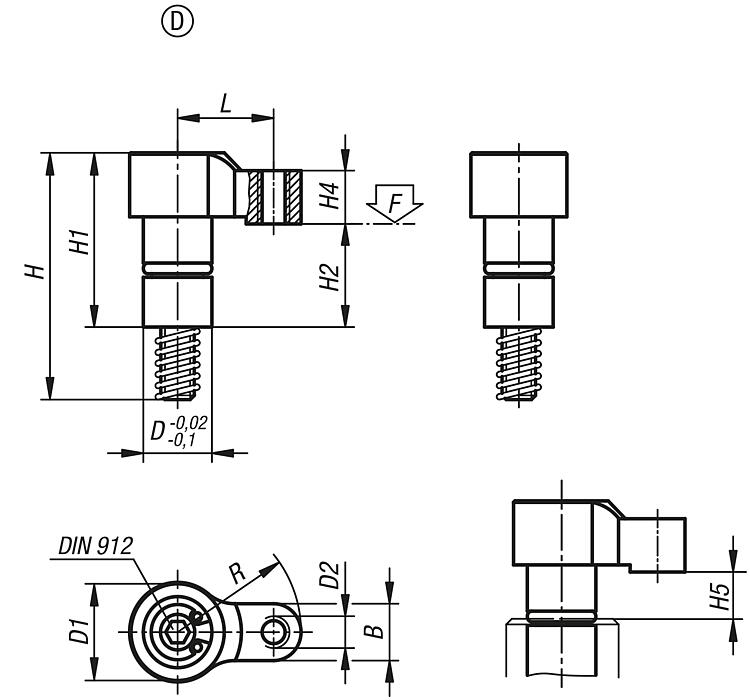

Form D: black oxidised.Note:The stated clamping forces (F max.) and tightening torques are valid within the stated clamping ranges (H5).Advantages:Compact design for use in the tightest of spaces
Diverse versions and sizesAccessory:Hook clamp holders B0413.
Hook clamp holders B0415.
Extensions for jack screws B0414.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0412 Hook clamps

260 kB

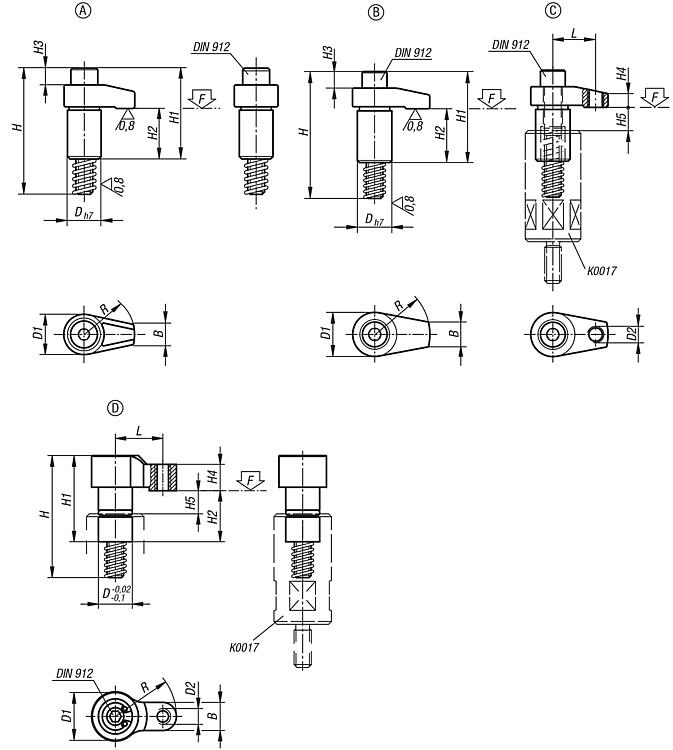

Drawings (total overview)

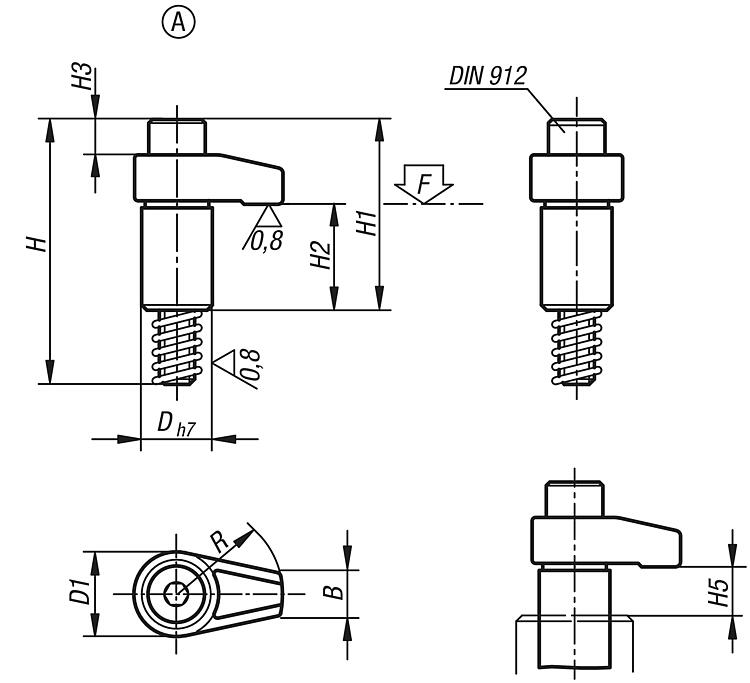

Hook clamps ground, Form A

More information

Drawings

Item selection/filter

Order No.	Form	D	D1	H	H1	H2	H3	H4	H5 max. clamping range	B	R	Socket head screw DIN 912	Tightening torque max. Nm	F max. kN	CAD	Acc.	Price	Order
B0412.110030	A	20	25	75	54	30	9	10	12	12	30	M10x65	37,2	13			43.26 €
B0412.110040	A	20	25	75	54	30	9	10	12	12	40	M10x65	31,4	9,8			43.60 €

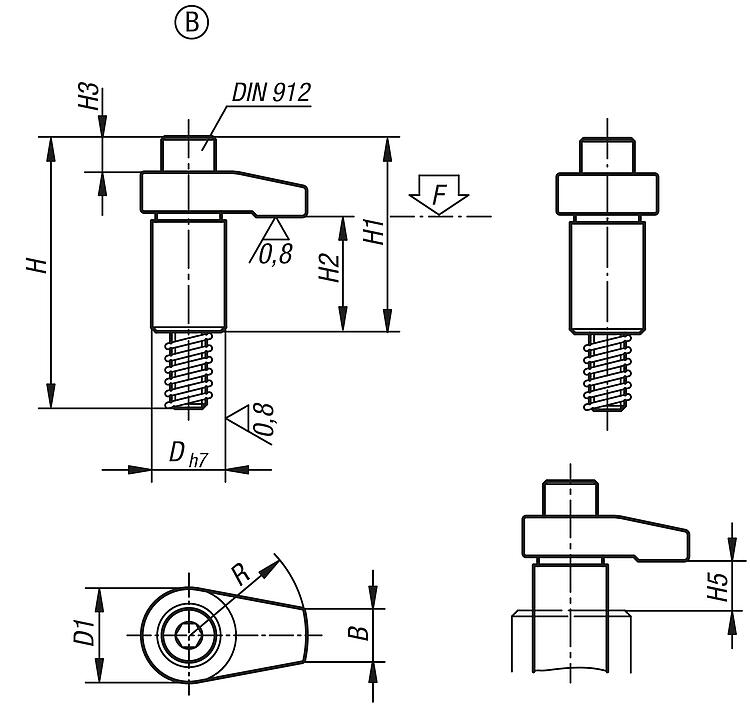

Hook clamps ground, Form B

More information

Drawings

Item selection/filter

Order No.	Form	D	D1	H	H1	H2	H3	H4	H5 max. clamping range	B	R	Socket head screw DIN 912	Tightening torque max. Nm	F max. kN	Price
B0412.208020	B	18	22	58	37	23	2	7	10	10	20	M8x50	37,2	13,6	55.36 €
B0412.208025	B	18	22	58	37	23	2	7	10	10	25	M8x50	32,3	10,9	55.92 €
B0412.208030	B	18	22	58	37	23	2	7	10	10	30	M8x50	29,4	9	56.33 €
B0412.212040	B	25	32	92	66	39	11	12	15	18	40	M12x80	58,8	17,5	55.90 €
B0412.212050	B	25	32	92	68	39	11	12	15	18	50	M12x80	49	14	59.51 €
B0412.212060	B	25	32	92	68	39	11	12	15	18	60	M12x80	45,1	11,6	60.79 €
B0412.216040	B	32	36	101	75	39	15	15	15	22	40	M16x85	166,6	37,9	75.77 €
B0412.216050	B	32	36	101	75	39	15	15	15	22	50	M16x85	147	30,4	85.60 €
B0412.216060	B	32	36	101	75	39	15	15	15	22	60	M16x85	127,4	25,2	88.12 €

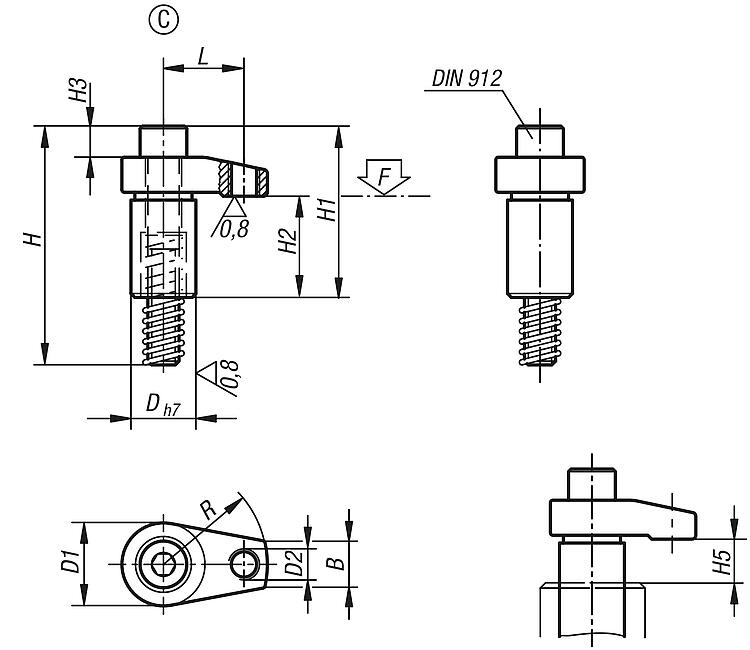

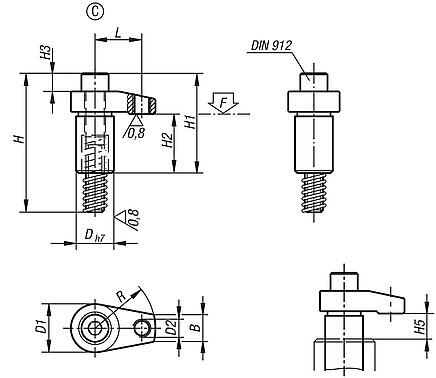

Hook clamps ground, Form C

More information

Drawings

Item selection/filter

Order No.	Form	D	D1	D2	H	H1	H2	H3	H4	H5 max. clamping range	B	L	R	Socket head screw DIN 912	Tightening torque max. Nm	F max. kN	Price
B0412.312140	C	25	32	M12	92	66	39	11	10	15	18	31	40	M12x80	58,8	22,6	62.83 €
B0412.312150	C	25	32	M12	92	68	39	11	13	15	18	38	50	M12x80	49	18,5	71.85 €
B0412.312160	C	25	32	M12	92	68	39	11	13	15	18	46	60	M12x80	45,1	15,2	75.16 €
B0412.316150	C	32	36	M12	101	75	39	15	16	15	22	38	50	M16x85	147	38	88.89 €
B0412.316160	C	32	36	M12	101	75	39	15	16	15	22	46	60	M16x85	127,4	33	93.34 €
