DescriptionMaterial:Carbon steel, tempered.Version:Black oxidised.Accessory:Springs B0410 and socket head screws B0124, B0125.
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

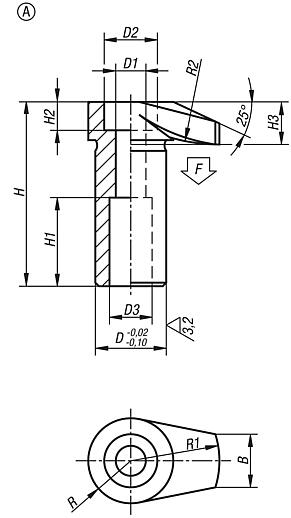

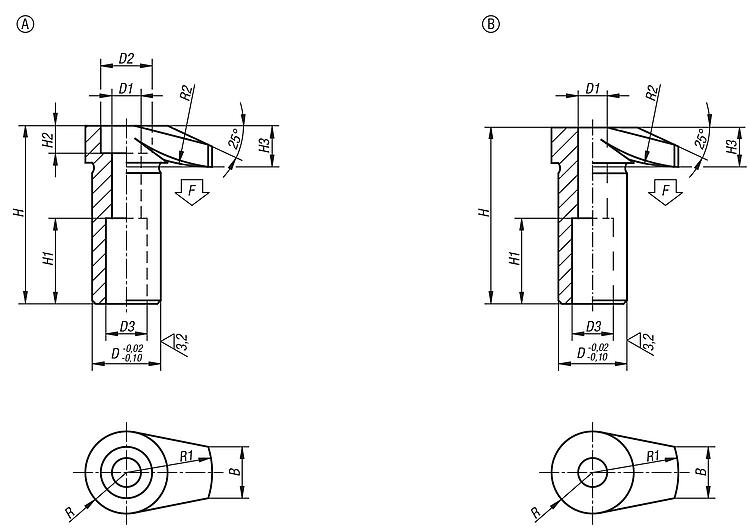

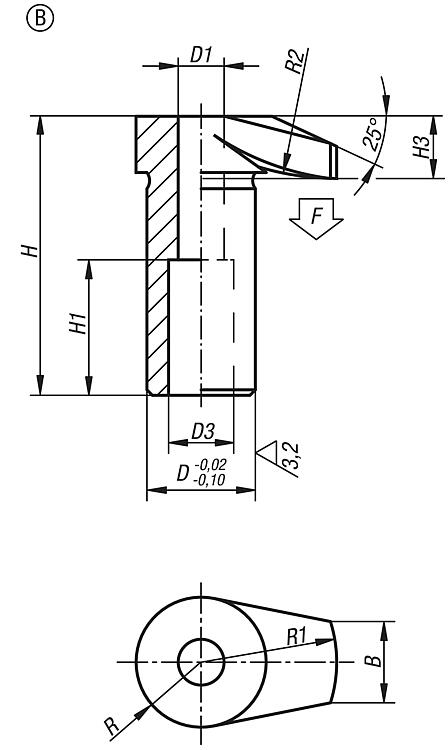

Drawings (total overview) |
|
Order No.
| Form | D | D1 | D3 | H | H1 | H3 | B | R | R1 | R2 | F
max. kN
| CAD | Acc. | Price | Order |
|---|
| B0417.106 | B | 16 | 6,5 | 10 | 41,5 | 20 | 9,5 | 11 | 9 | 20 | 30 | 4,8 |  | | 21.09 € | | | B0417.108 | B | 20 | 8,5 | 12 | 51,5 | 25 | 11,5 | 15 | 12 | 25 | 50 | 8,8 | | | 30.14 € | | | B0417.110 | B | 25 | 10,5 | 14 | 65,5 | 32 | 15,5 | 17 | 14 | 32 | 60 | 13,9 | | | 44.99 € | | | B0417.112 | B | 32 | 12,5 | 17 | 82,5 | 40 | 19,5 | 20 | 18 | 40 | 80 | 20,2 | | | 86.39 € | |
|
