B0419Hook clamps with soft pad |
go back |
|

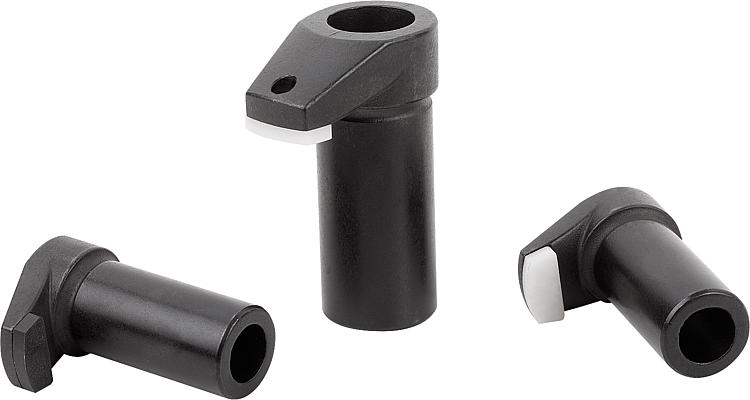

Item description/product images |
|
|
DescriptionMaterial:Carbon steel.
Soft pad POM or polyurethane 99 Shore A.Version:Tempered and black oxidised.Note:The pressed in plastic inserts offer optimal damage protection for sensitive workpiece faces.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

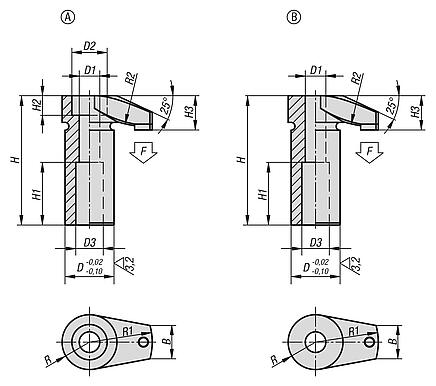

| Order No. | Form | Component
material | D | D1 | D2 | D3 | H | H1 | H2 | H3 | B | R | R1 | R2 | F
max. kN
| CAD | Acc. | Price | Order |
|---|
| B0419.206 | A | polyacetal | 16 | 6,5 | 11 | 10 | 42 | 20 | 6 | 10,5 | 11 | 9 | 20 | 30 | 4,8 |  | | 29.56 € | | | B0419.208 | A | polyacetal | 20 | 8,5 | 15 | 12 | 52 | 25 | 8 | 13,5 | 15 | 12 | 25 | 50 | 8,8 | | | 39.23 € | | | B0419.210 | A | polyacetal | 25 | 10,5 | 18 | 14 | 66 | 32 | 10 | 17,5 | 17 | 14 | 32 | 60 | 11,6 | | | 63.82 € | | | B0419.212 | A | polyacetal | 32 | 12,5 | 20 | 17 | 83 | 40 | 12 | 21 | 20 | 18 | 40 | 80 | 18,8 | | | 115.30 € | | | B0419.2106 | B | polyacetal | 16 | 6,5 | - | 10 | 41,5 | 20 | - | 10 | 11 | 9 | 20 | 30 | 4,8 | | | 34.09 € | | | B0419.2108 | B | polyacetal | 20 | 8,5 | - | 12 | 51,5 | 25 | - | 13 | 15 | 12 | 25 | 50 | 8,8 | | | 41.39 € | | | B0419.2110 | B | polyacetal | 25 | 10,5 | - | 14 | 65,5 | 32 | - | 17 | 17 | 14 | 32 | 60 | 11,6 | | | 63.99 € | | | B0419.2112 | B | polyacetal | 32 | 12,5 | - | 17 | 82,5 | 40 | - | 21 | 20 | 18 | 40 | 80 | 18,8 | | | 116.01 € | | | B0419.306 | A | polyurethane | 16 | 6,5 | 11 | 10 | 42 | 20 | 6 | 10,5 | 11 | 9 | 20 | 30 | 4,8 | | | 33.46 € | | | B0419.308 | A | polyurethane | 20 | 8,5 | 15 | 12 | 52 | 25 | 8 | 13,5 | 15 | 12 | 25 | 50 | 8,8 | | | 40.44 € | | | B0419.310 | A | polyurethane | 25 | 10,5 | 18 | 14 | 66 | 32 | 10 | 17,5 | 17 | 14 | 32 | 60 | 11,6 | | | 63.96 € | | | B0419.312 | A | polyurethane | 32 | 12,5 | 20 | 17 | 83 | 40 | 12 | 21 | 20 | 18 | 40 | 80 | 18,8 | | | 116.46 € | | | B0419.3106 | B | polyurethane | 16 | 6,5 | - | 10 | 41,5 | 20 | - | 10 | 11 | 9 | 20 | 30 | 4,8 | | | 37.03 € | | | B0419.3108 | B | polyurethane | 20 | 8,5 | - | 12 | 51,5 | 25 | - | 13 | 15 | 12 | 25 | 50 | 8,8 | | | 44.62 € | | | B0419.3110 | B | polyurethane | 25 | 10,5 | - | 14 | 65,5 | 32 | - | 17 | 17 | 14 | 32 | 60 | 11,6 | | | 65.19 € | | | B0419.3112 | B | polyurethane | 32 | 12,5 | - | 17 | 82,5 | 40 | - | 21 | 20 | 18 | 40 | 80 | 18,8 | | | 119.57 € | |
