B0302

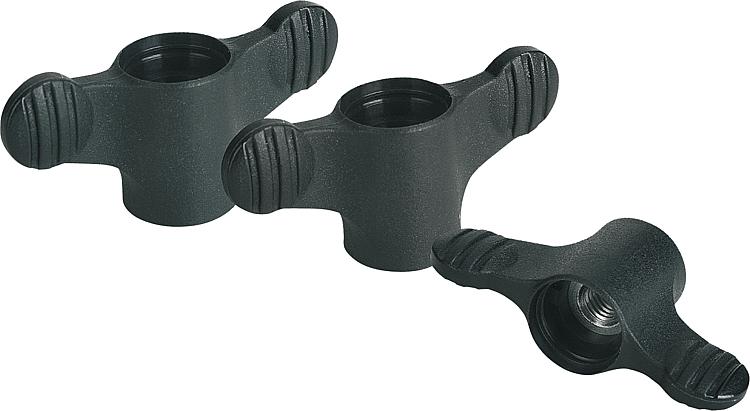

Wing grips tapped through

Item description/product images

DescriptionMaterial:

Grip thermoplastic.
Bush steel 5.8 or stainless steel 1.4305.

Version:Grip black grey.
Bush trivalent blue passivated steel or bright stainless steel.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

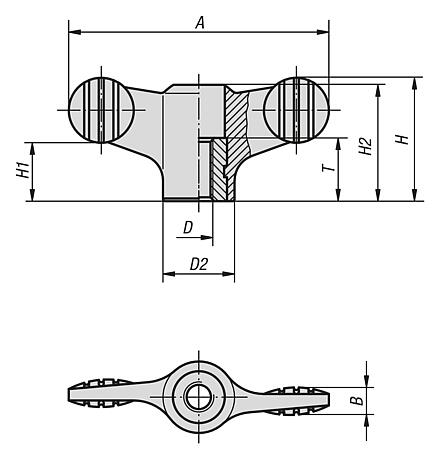

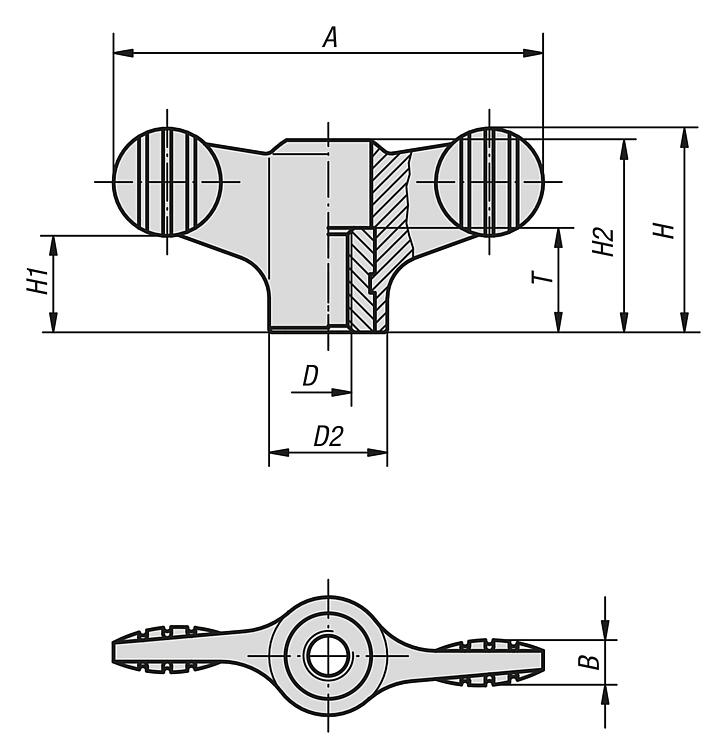

Order No.	Component material	A	B	D	D2	H	H1	H2	T	Price
B0302.1904	steel	38	4,5	M4	12	18	8,5	16,1	10	1.02 €
B0302.1905	steel	38	4,5	M5	12	18	8,5	16,1	10	1.02 €
B0302.1906	steel	38	4,5	M6	12	18	8,5	16,1	10	1.02 €
B0302.1105	steel	50	5	M5	14	24	11,5	22	10	1.09 €
B0302.1106	steel	50	5	M6	14	24	11,5	22	10	1.09 €
B0302.1208	steel	75	7	M8	21	35,6	17	33,3	14	2.00 €
B0302.1210	steel	75	7	M10	21	35,6	17	33,3	14	2.00 €
B0302.10904	stainless steel	38	4,5	M4	12	18	8,5	16,1	10	1.59 €
B0302.10905	stainless steel	38	4,5	M5	12	18	8,5	16,1	10	1.59 €
B0302.10906	stainless steel	38	4,5	M6	12	18	8,5	16,1	10	1.59 €
B0302.10105	stainless steel	50	5	M5	14	24	11,5	22	10	1.81 €
B0302.10106	stainless steel	50	5	M6	14	24	11,5	22	10	1.81 €
B0302.10208	stainless steel	75	7	M8	21	35,6	17	33,3	14	2.28 €
B0302.10210	stainless steel	75	7	M10	21	35,6	17	33,3	14	2.28 €
