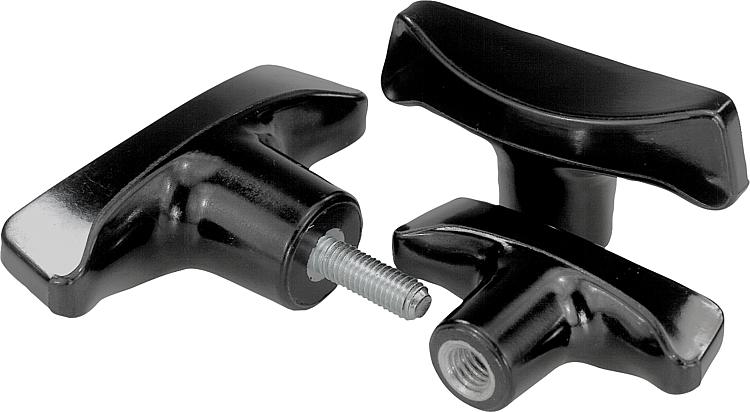

DescriptionMaterial:Thermoset PF 31, black.
Steel bush and stud, electro zinc-plated.
Version:High-gloss polished.On request:Other screw sizes, screw lengths and colours.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0305 T-grips 206 kB

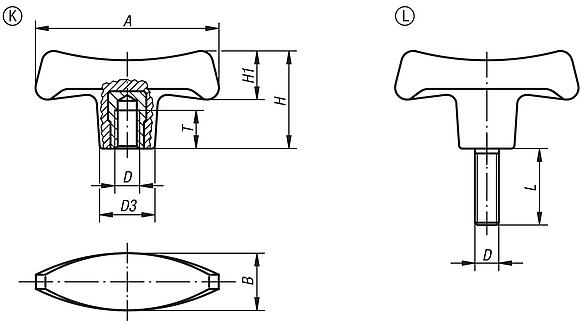

Drawings (total overview)

T-grips

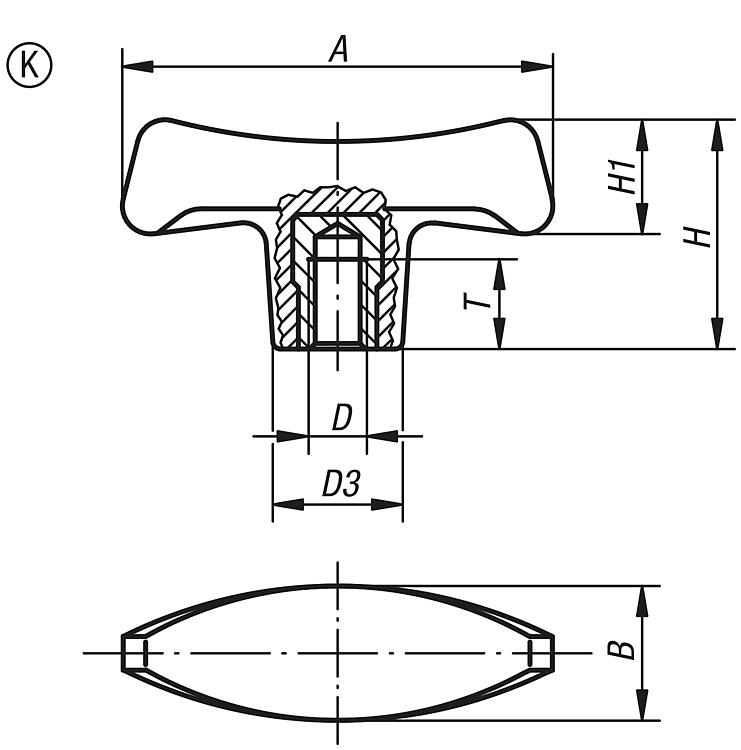

T-grips, with internal thread

More information

Drawings

T-grips, with internal thread

Item selection/filter



  •
  • K

  •
  • 70
  • 80
  • 90

  •
  • 22
  • 25
  • 28

  •
  • M6
  • M8
  • M10
  • M12

  •
  • 19,6
  • 22,3
  • 25

  •
  • 38,8
  • 44
  • 49,6

  •
  • 20,2
  • 23
  • 26

  •
  • 12
  • 14
  • 22
  • 21

Reset
Order No.

FormABDD3HH1TCADAcc.PriceOrder
B0305.17006K7022M619,638,820,212  2.42 €
B0305.17008K7022M819,638,820,214  2.42 €
B0305.17010K7022M1019,638,820,214  2.63 €
B0305.18008K8025M822,3442314  3.16 €
B0305.18010K8025M1022,3442322  3.32 €
B0305.19010K9028M102549,62622  3.92 €
B0305.19012K9028M122549,62621  4.11 €

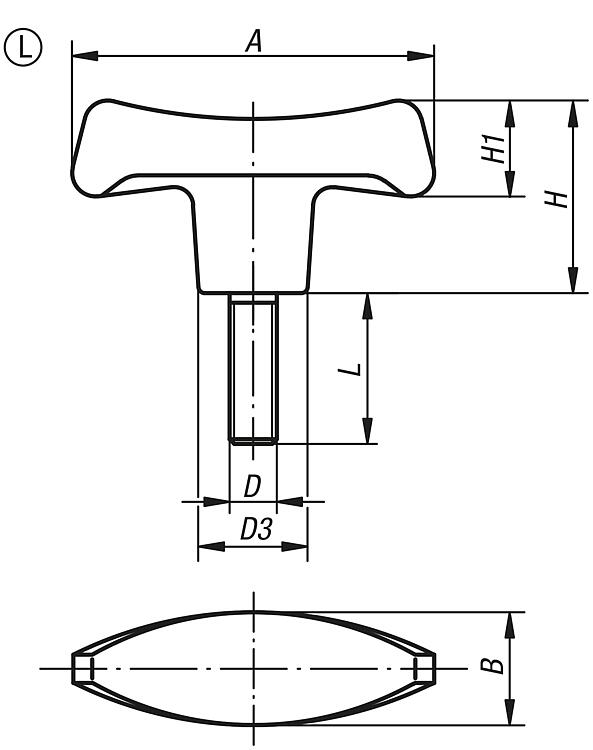

T-grips, with external thread

More information

Drawings

T-grips, with external thread

Item selection/filter



  •
  • L

  •
  • 70
  • 80
  • 90

  •
  • 22
  • 25
  • 28

  •
  • M6
  • M8
  • M10
  • M12

  •
  • 19,6
  • 22,3
  • 25

  •
  • 38,8
  • 44
  • 49,6

  •
  • 20,2
  • 23
  • 26

  •
  • 18
  • 24
  • 20
  • 30

Reset
Order No.

FormABDD3HH1LCADAcc.PriceOrder
B0305.27006X18L7022M619,638,820,218  2.44 €
B0305.27008X24L7022M819,638,820,224  2.71 €
B0305.28010X20L8025M1022,3442320  3.16 €
B0305.28010X30L8025M1022,3442330  3.16 €
B0305.29010X30L9028M102549,62630  3.85 €
B0305.29012X24L9028M122549,62624  4.91 €
