B0303

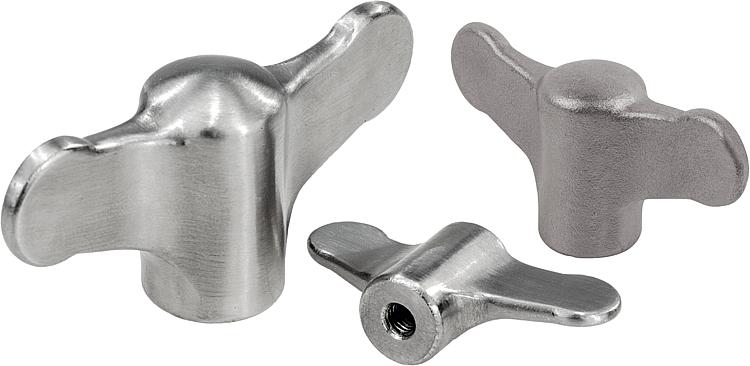

Wing grips internal thread, stainless steel

Item description/product images

DescriptionMaterial:

Stainless steel 1.4308.

Version:Polished and blasted.On request:With external threads.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

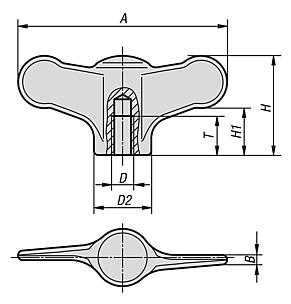

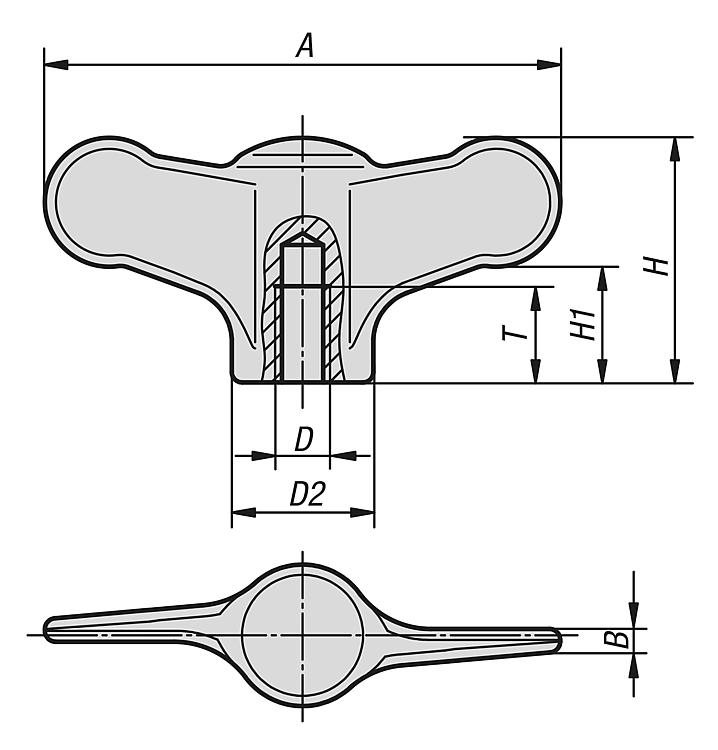

Order No.	Main colour	A	B	D	D2	H	H1	T	Price
B0303.904	polished	38	1,7	M4	10,5	18	8,5	9	7.55 €
B0303.905	polished	38	1,7	M5	10,5	18	8,5	9	7.55 €
B0303.906	polished	38	1,7	M6	10,5	18	8,5	9	7.55 €
B0303.105	polished	50	2,3	M5	14	24	11,5	12	11.28 €
B0303.106	polished	50	2,3	M6	14	24	11,5	12	11.28 €
B0303.208	polished	75	3,4	M8	21	35	16,5	15	13.87 €
B0303.210	polished	75	3,4	M10	21	35	16,5	15	13.87 €
B0303.9041	blasted	38	1,7	M4	10,5	18	8,5	9	4.10 €
B0303.9051	blasted	38	1,7	M5	10,5	18	8,5	9	4.10 €
B0303.9061	blasted	38	1,7	M6	10,5	18	8,5	9	4.10 €
B0303.1051	blasted	50	2,3	M5	14	24	11,5	12	5.42 €
B0303.1061	blasted	50	2,3	M6	14	24	11,5	12	5.42 €
B0303.2081	blasted	75	3,4	M8	21	35	16,5	15	9.25 €
B0303.2101	blasted	75	3,4	M10	21	35	16,5	15	9.25 €
