B0199

Levelling sets high version

go back

Products
- Product overview
  - Locating elements, stop elements, support elements
    - Height adjustment elements
      - Levelling sets high version

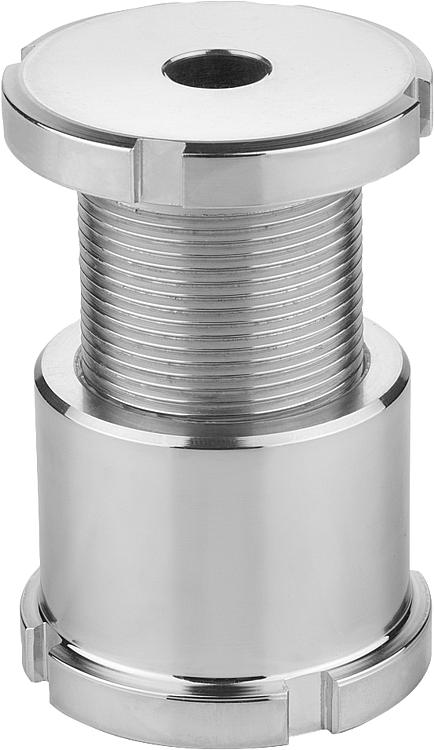

Item description/product images

DescriptionMaterial:

Steel 1.7225.
Stainless steel 1.4305.

Version:Seel version trivalent blue passivated.

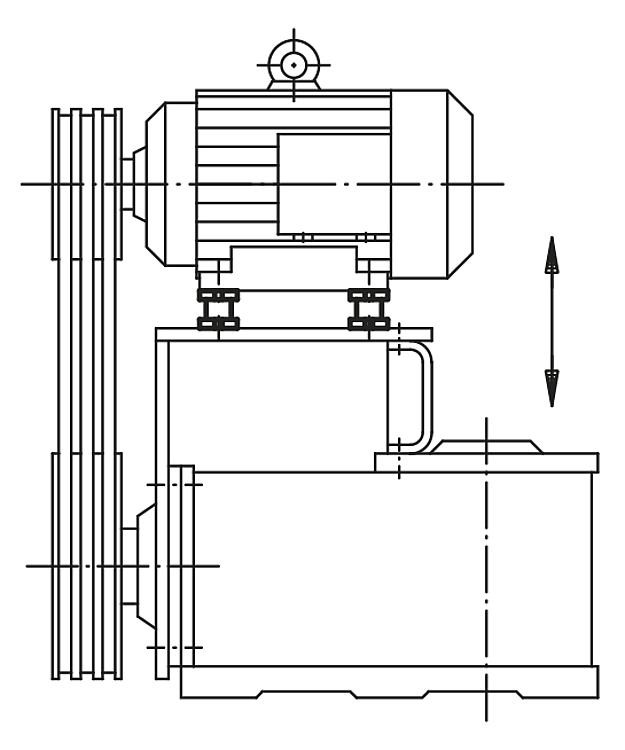

Stainless steel version bright.Note:Levelling sets are used for mounting, levelling and aligning motors, aggregates, drive units and assembly lines. They are characterised by their wide adjustment range from 15 mm to 40 mm. Other sizes available on request.
The static additional load F1 is effective after deducting the tensioning force (screw 8.8, µm = 0.125) from the total load F.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0199 Levelling sets high version

223 kB

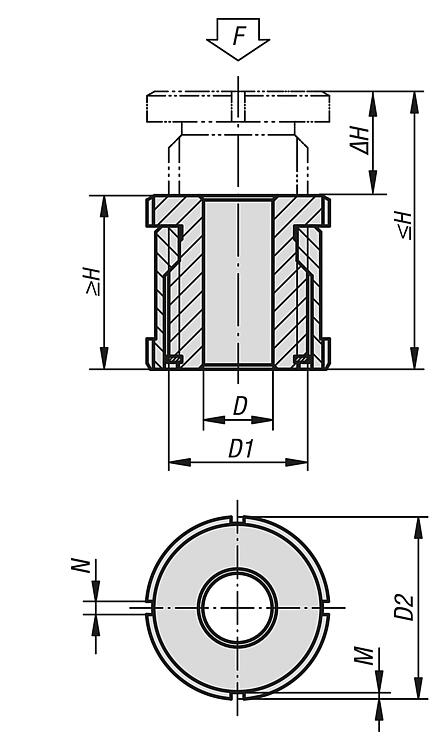

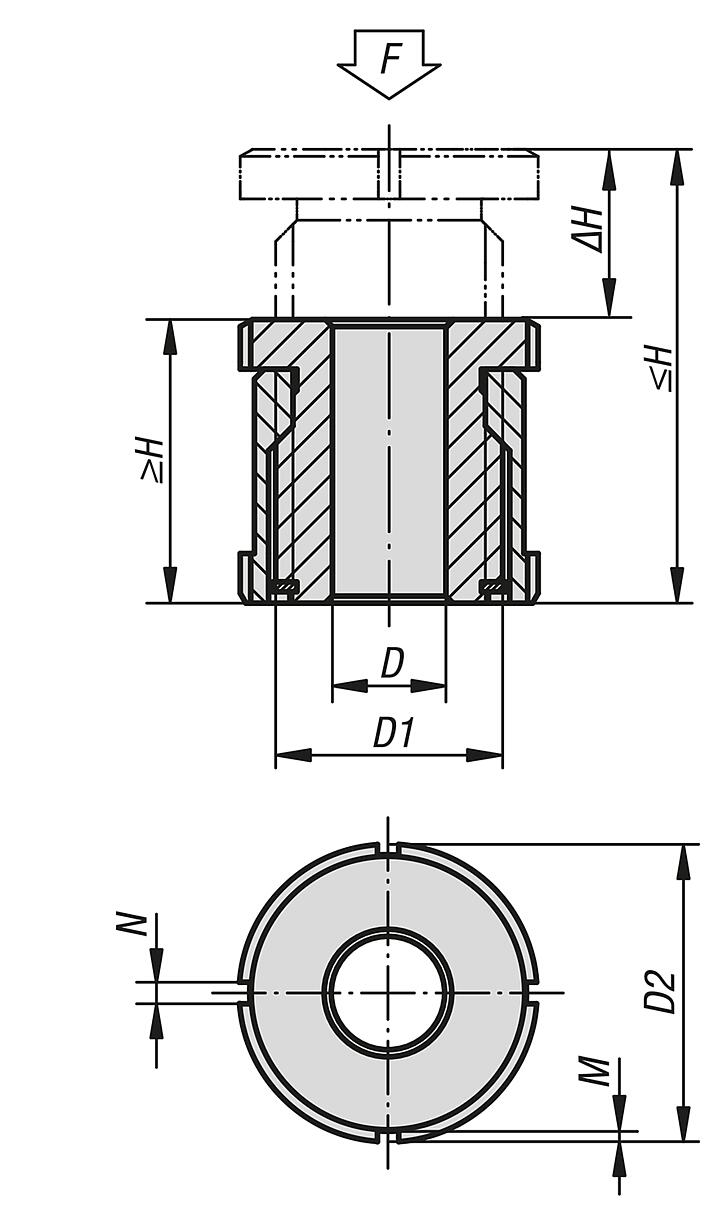

Drawings

Item selection/filter

Order No.	Main material	D	for screw	D1	D2	H min.	H max.	ΔH	N	M	F kN	F1 kN	Price
B0199.01504	QT steel	4,5	M4	M15x1	25	28	43	15	4	2	40	36	31.29 €
B0199.01505	QT steel	5,5	M5	M15x1	25	28	43	15	4	2	40	33,4	31.29 €
B0199.01506	QT steel	6,6	M6	M15x1	25	28	43	15	4	2	40	30,7	31.29 €
B0199.02006	QT steel	6,6	M6	M20x1	32	35	55	20	4	2	65	55,7	34.31 €
B0199.02008	QT steel	9	M8	M20x1	32	35	55	20	4	2	65	48	34.31 €
B0199.02010	QT steel	11	M10	M20x1	32	35	55	20	4	2	65	37,9	34.31 €
B0199.02510	QT steel	11	M10	M30x1,5	45	42	67	25	5	2	120	92,9	36.28 €
B0199.02512	QT steel	13,5	M12	M30x1,5	45	42	67	25	5	2	120	80,4	36.28 €
B0199.02516	QT steel	17,5	M16	M30x1,5	45	42	67	25	5	2	120	45,5	36.28 €
B0199.03216	QT steel	17,5	M16	M40x1,5	58	54	86	32	6	2,5	210	136	43.23 €
B0199.03220	QT steel	22	M20	M40x1,5	58	54	86	32	6	2,5	210	90	43.23 €
B0199.03224	QT steel	26	M24	M40x1,5	58	54	86	32	6	2,5	210	37	43.23 €
B0199.04020	QT steel	22	M20	M50x1,5	70	66	106	40	6	2,5	330	210	85.96 €
B0199.04024	QT steel	26	M24	M50x1,5	70	66	106	40	6	2,5	330	157	82.65 €
B0199.04030	QT steel	33	M30	M50x1,5	70	66	106	40	6	2,5	330	53	82.65 €
B0199.015041	stainless steel	4,5	M4	M15x1	25	28	43	15	4	2	27,1	24,14	50.14 €
B0199.015051	stainless steel	5,5	M5	M15x1	25	28	43	15	4	2	27,1	22,24	50.14 €
B0199.015061	stainless steel	6,6	M6	M15x1	25	28	43	15	4	2	27,1	20,26	50.14 €
B0199.020061	stainless steel	6,6	M6	M20x1	32	35	55	20	4	2	43,4	36,56	58.47 €
B0199.020081	stainless steel	9	M8	M20x1	32	35	55	20	4	2	43,4	30,86	58.47 €
B0199.020101	stainless steel	11	M10	M20x1	32	35	55	20	4	2	43,4	23,41	58.47 €
B0199.025101	stainless steel	11	M10	M30x1,5	45	42	67	25	5	2	84	64,01	68.30 €
B0199.025121	stainless steel	13,5	M12	M30x1,5	45	42	67	25	5	2	84	54,82	68.30 €
B0199.025161	stainless steel	17,5	M16	M30x1,5	45	42	67	25	5	2	84	28,9	68.30 €
B0199.032161	stainless steel	17,5	M16	M40x1,5	58	54	86	32	6	2,5	148	92,9	84.88 €
B0199.032201	stainless steel	22	M20	M40x1,5	58	54	86	32	6	2,5	148	59,08	84.88 €
B0199.032241	stainless steel	26	M24	M40x1,5	58	54	86	32	6	2,5	148	20,3	84.88 €
B0199.040201	stainless steel	22	M20	M50x1,5	70	66	106	40	6	2,5	225	136,08	149.76 €
B0199.040241	stainless steel	26	M24	M50x1,5	70	66	106	40	6	2,5	225	97,3	149.76 €
B0199.040301	stainless steel	33	M30	M50x1,5	70	66	106	40	6	2,5	225	20,6	149.76 €
