B0205Levelling sets spherical washer |
go back |
|
Item description/product images |
|
|

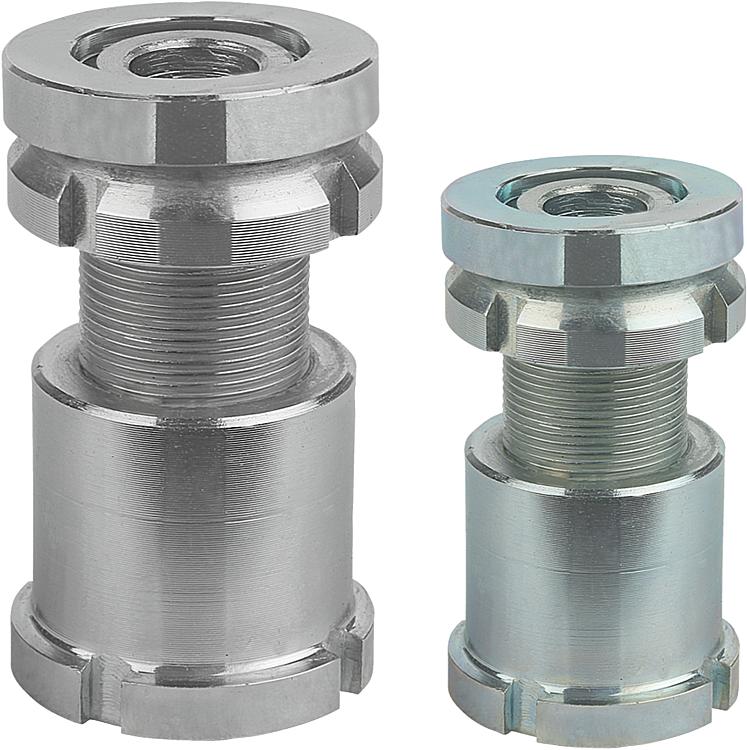

DescriptionMaterial:Steel 1.7225.
Stainless steel 1.4305.Version:Standard version trivalent blue passivated.

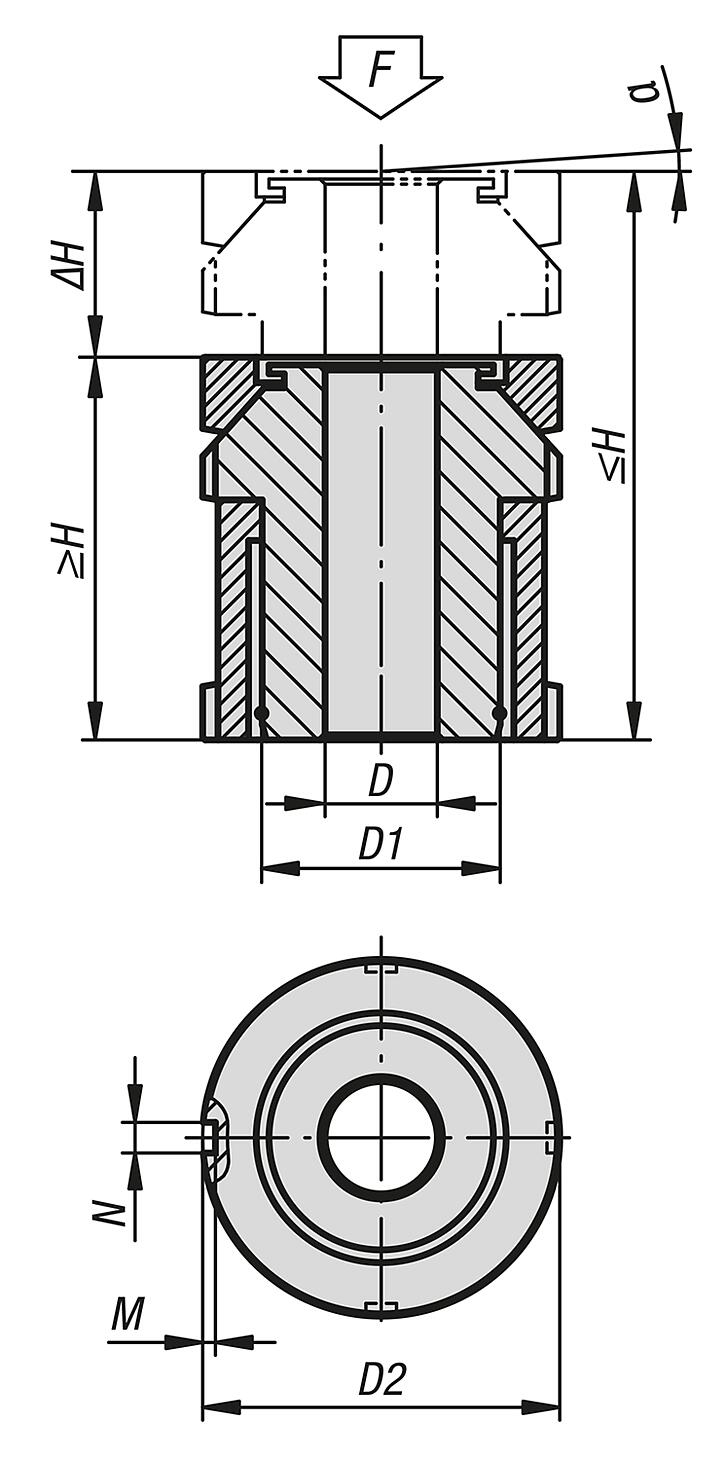

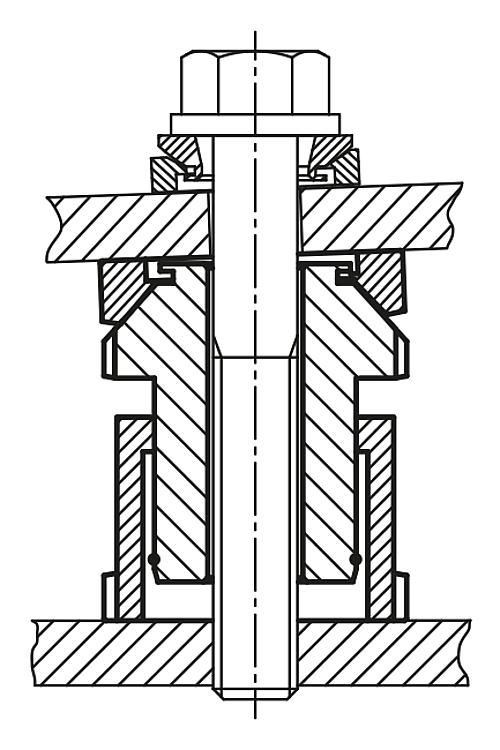

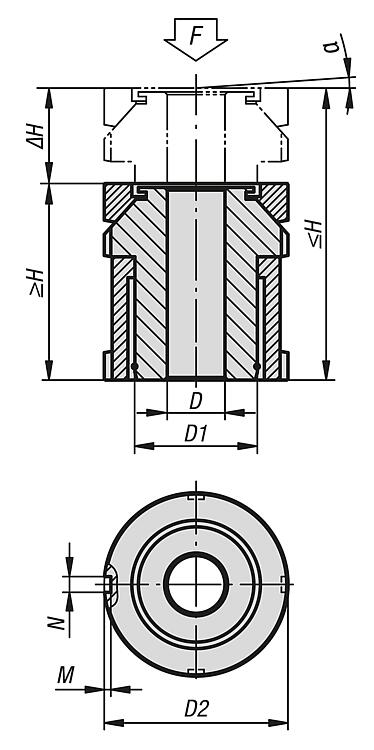

Stainless steel version bright.Note:Levelling sets with spherical washers are used for mounting, levelling and aligning motors, aggregates, drive units and assembly lines. The spherical washer permits exact alignment when mounting on sloping surfaces of up to 4°.
The are characterised by their wide adjustment range of 15 mm to 50 mm.
The static additional load F1 is effective after deducting the tensioning force (screw 8.8, µm = 0.125) from the total load F.
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
material | D | for
screw
| D1
| D2 | H
min.
| H
max.
| ΔH | N | M | α | F
kN | F1
kN | CAD | Acc. | Price | Order |
|---|
| B0205.1506 | QT steel | 6,6 | M6 | M15x1 | 25 | 35 | 50 | 15 | 4 | 2 | 4° | 40 | 36 |  |  | 52.99 € | | | B0205.2006 | QT steel | 6,6 | M6 | M20x1 | 32 | 43 | 63 | 20 | 4 | 2 | 4° | 65 | 55,7 | | | 54.78 € | | | B0205.2008 | QT steel | 9 | M8 | M20x1 | 32 | 43 | 63 | 20 | 4 | 2 | 4° | 65 | 48 | | | 54.78 € | | | B0205.2010 | QT steel | 11 | M10 | M20x1 | 32 | 43 | 63 | 20 | 4 | 2 | 4° | 65 | 37,9 | | | 54.78 € | | | B0205.2510 | QT steel | 11 | M10 | M30x1,5 | 45 | 54 | 79 | 25 | 5 | 2 | 4° | 120 | 92,9 | | | 63.61 € | | | B0205.2512 | QT steel | 13,5 | M12 | M30x1,5 | 45 | 54 | 79 | 25 | 5 | 2 | 4° | 120 | 80,4 | | | 63.61 € | | | B0205.2516 | QT steel | 17,5 | M16 | M30x1,5 | 45 | 54 | 79 | 25 | 5 | 2 | 4° | 120 | 45,5 | | | 63.61 € | | | B0205.3216 | QT steel | 17,5 | M16 | M40x1,5 | 58 | 70 | 102 | 32 | 6 | 2,5 | 4° | 210 | 136 | | | 75.96 € | | | B0205.3220 | QT steel | 22 | M20 | M40x1,5 | 58 | 70 | 102 | 32 | 6 | 2,5 | 4° | 210 | 90 | | | 75.96 € | | | B0205.3224 | QT steel | 26 | M24 | M40x1,5 | 58 | 70 | 102 | 32 | 6 | 2,5 | 4° | 210 | 37 | | | 75.96 € | | | B0205.4020 | QT steel | 22 | M20 | M50x1,5 | 70 | 83 | 123 | 40 | 6 | 2,5 | 4° | 330 | 210 | | | 104.22 € | | | B0205.4024 | QT steel | 26 | M24 | M50x1,5 | 70 | 83 | 123 | 40 | 6 | 2,5 | 4° | 330 | 157 | | | 104.22 € | | | B0205.4030 | QT steel | 33 | M30 | M50x1,5 | 70 | 83 | 123 | 40 | 6 | 2,5 | 4° | 330 | 53 | | | 104.22 € | | | B0205.5024 | QT steel | 26 | M24 | M60x2 | 80 | 94 | 144 | 50 | 7 | 3 | 4° | 495 | 322 | | | 137.79 € | | | B0205.5030 | QT steel | 33 | M30 | M60x2 | 80 | 94 | 144 | 50 | 7 | 3 | 4° | 495 | 218 | | | 137.79 € | | | B0205.15061 | stainless steel | 6,6 | M6 | M15x1 | 25 | 35 | 50 | 15 | 4 | 2 | 4° | 27,1 | 24,14 | | | 64.18 € | | | B0205.20061 | stainless steel | 6,6 | M6 | M20x1 | 32 | 43 | 63 | 20 | 4 | 2 | 4° | 43,4 | 36,56 | | | 69.24 € | | | B0205.20081 | stainless steel | 9 | M8 | M20x1 | 32 | 43 | 63 | 20 | 4 | 2 | 4° | 43,4 | 30,86 | | | 69.24 € | | | B0205.20101 | stainless steel | 11 | M10 | M20x1 | 32 | 43 | 63 | 20 | 4 | 2 | 4° | 43,4 | 23,41 | | | 69.24 € | | | B0205.25101 | stainless steel | 11 | M10 | M30x1,5 | 45 | 54 | 79 | 25 | 5 | 2 | 4° | 84 | 64,01 | | | 83.02 € | | | B0205.25121 | stainless steel | 13,5 | M12 | M30x1,5 | 45 | 54 | 79 | 25 | 5 | 2 | 4° | 84 | 54,82 | | | 83.02 € | | | B0205.25161 | stainless steel | 17,5 | M16 | M30x1,5 | 45 | 54 | 79 | 25 | 5 | 2 | 4° | 84 | 28,9 | | | 83.02 € | | | B0205.32161 | stainless steel | 17,5 | M16 | M40x1,5 | 58 | 70 | 102 | 32 | 6 | 2,5 | 4° | 148 | 92,9 | | | 118.35 € | | | B0205.32201 | stainless steel | 22 | M20 | M40x1,5 | 58 | 70 | 102 | 32 | 6 | 2,5 | 4° | 148 | 59,08 | | | 118.35 € | | | B0205.32241 | stainless steel | 26 | M24 | M40x1,5 | 58 | 70 | 102 | 32 | 6 | 2,5 | 4° | 148 | 20,3 | | | 118.35 € | | | B0205.40201 | stainless steel | 22 | M20 | M50x1,5 | 70 | 83 | 123 | 40 | 6 | 2,5 | 4° | 225 | 136,08 | | | 182.03 € | | | B0205.40241 | stainless steel | 26 | M24 | M50x1,5 | 70 | 83 | 123 | 40 | 6 | 2,5 | 4° | 225 | 97,3 | | | 182.03 € | | | B0205.40301 | stainless steel | 33 | M30 | M50x1,5 | 70 | 83 | 123 | 40 | 6 | 2,5 | 4° | 225 | 20,6 | | | 182.03 € | | | B0205.50241 | stainless steel | 26 | M24 | M60x2 | 80 | 94 | 144 | 50 | 7 | 3 | 4° | 323 | 195,3 | | | 254.35 € | | | B0205.50301 | stainless steel | 33 | M30 | M60x2 | 80 | 94 | 144 | 50 | 7 | 3 | 4° | 323 | 118,6 | | | 254.35 € | |
