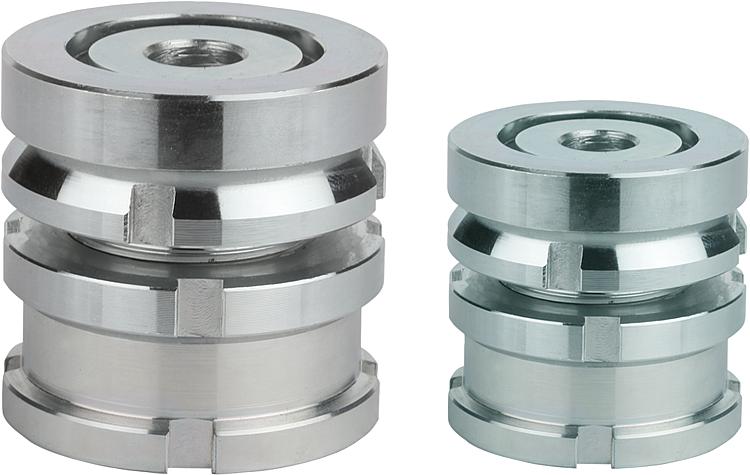

B0204Levelling sets spherical washer with locknut |
go back |
|
Item description/product images |
|
|
DescriptionVersion:Standard version trivalent blue passivated.

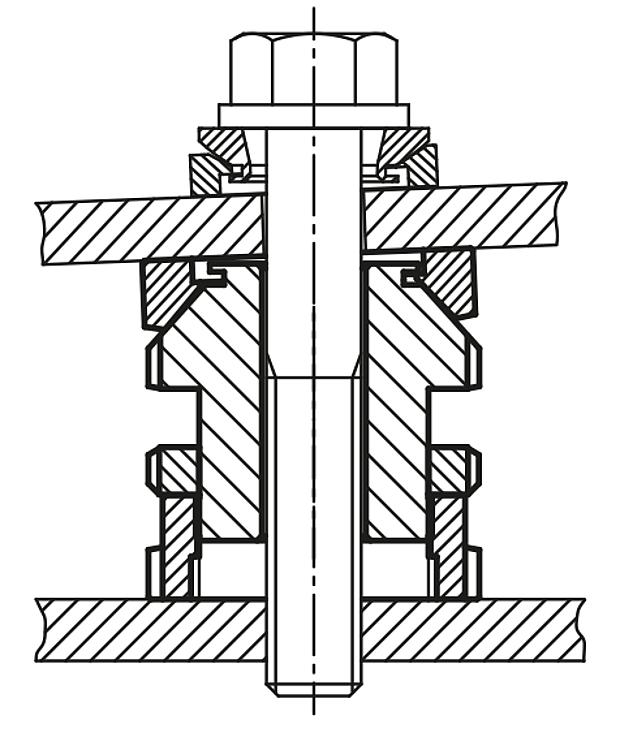

Stainless steel version bright.Note:The spherical washer levelling set with locknut is used to mount and align motors, aggregates, drive units and production lines. The spherical washer permits exact alignment when mounting on sloping surfaces of up to 4°. The locknut secures a prescribed setting.
The static additional load F1 is effective after deducting the tensioning force (screw 8.8, µm = 0.125) from the total load F.
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

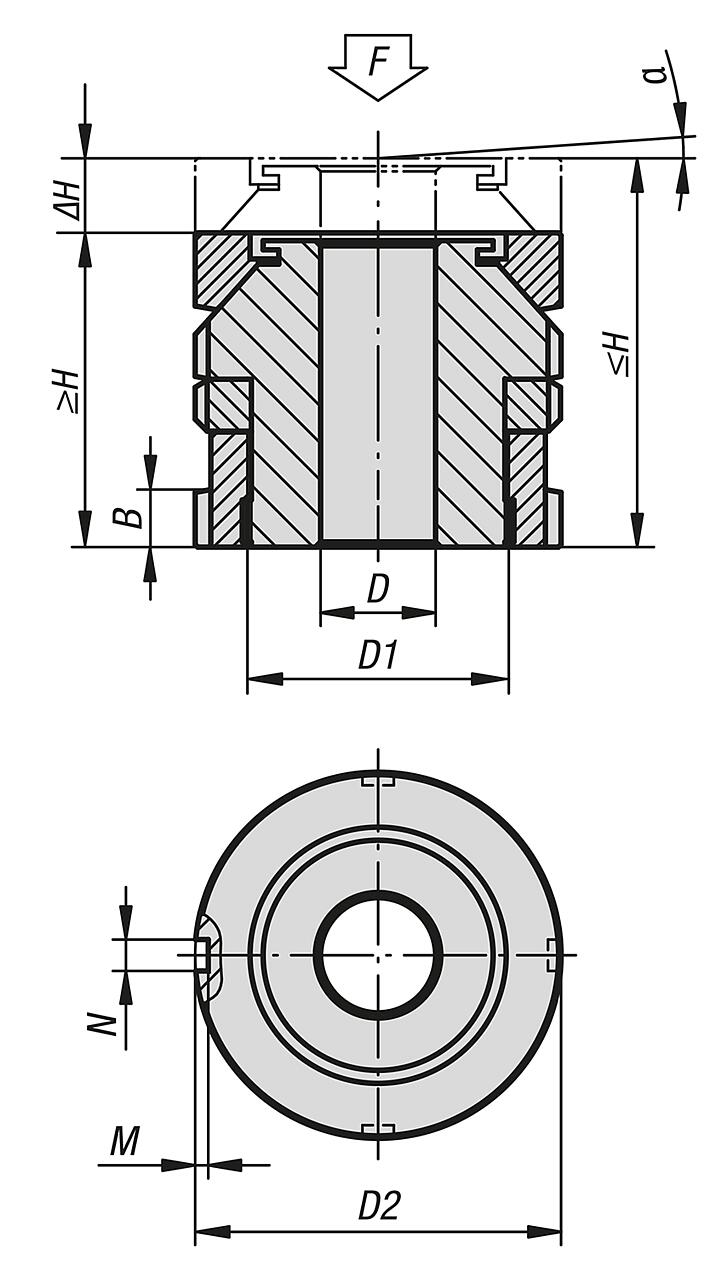

| Order No. | Main
material | D | for
screw
| D1
| D2 | H
min.
| H
max.
| ΔH | N | M | α | F
kN | F1
kN | CAD | Acc. | Price | Order |
|---|
| B0204.0406 | QT steel | 6,6 | M6 | M15x1 | 25 | 27 | 31 | 4 | 4 | 2 | 4° | 40 | 36 |  |  | 57.08 € | | | B0204.0506 | QT steel | 6,6 | M6 | M20x1 | 32 | 32 | 37 | 5 | 4 | 2 | 4° | 65 | 55,7 | | | 58.49 € | | | B0204.0508 | QT steel | 9 | M8 | M20x1 | 32 | 32 | 37 | 5 | 4 | 2 | 4° | 65 | 48 | | | 58.49 € | | | B0204.0510 | QT steel | 11 | M10 | M20x1 | 32 | 32 | 37 | 5 | 4 | 2 | 4° | 65 | 37,9 | | | 58.49 € | | | B0204.0710 | QT steel | 11 | M10 | M30x1,5 | 45 | 41 | 48 | 7 | 5 | 2 | 4° | 120 | 92,9 | | | 64.26 € | | | B0204.0712 | QT steel | 13,5 | M12 | M30x1,5 | 45 | 41 | 48 | 7 | 5 | 2 | 4° | 120 | 80,4 | | | 64.26 € | | | B0204.0716 | QT steel | 17,5 | M16 | M30x1,5 | 45 | 41 | 48 | 7 | 5 | 2 | 4° | 120 | 45,5 | | | 64.26 € | | | B0204.0916 | QT steel | 17,5 | M16 | M40x1,5 | 58 | 53 | 62 | 9 | 6 | 2,5 | 4° | 210 | 136 | | | 87.99 € | | | B0204.0920 | QT steel | 22 | M20 | M40x1,5 | 58 | 53 | 62 | 9 | 6 | 2,5 | 4° | 210 | 90 | | | 87.99 € | | | B0204.0924 | QT steel | 26 | M24 | M40x1,5 | 58 | 53 | 62 | 9 | 6 | 2,5 | 4° | 210 | 37 | | | 87.99 € | | | B0204.1020 | QT steel | 22 | M20 | M50x1,5 | 70 | 61 | 71 | 10 | 6 | 2,5 | 4° | 330 | 210 | | | 115.81 € | | | B0204.1024 | QT steel | 26 | M24 | M50x1,5 | 70 | 61 | 71 | 10 | 6 | 2,5 | 4° | 330 | 157 | | | 115.81 € | | | B0204.1030 | QT steel | 33 | M30 | M50x1,5 | 70 | 61 | 71 | 10 | 6 | 2,5 | 4° | 330 | 53 | | | 115.81 € | | | B0204.1224 | QT steel | 26 | M24 | M60x2 | 80 | 67 | 79 | 12 | 7 | 3 | 4° | 495 | 322 | | | 141.01 € | | | B0204.1230 | QT steel | 33 | M30 | M60x2 | 80 | 67 | 79 | 12 | 7 | 3 | 4° | 495 | 218 | | | 141.01 € | | | B0204.04061 | stainless steel | 6,6 | M6 | M15x1 | 25 | 27 | 31 | 4 | 4 | 2 | 4° | 27,1 | 24,14 | | | 78.55 € | | | B0204.05061 | stainless steel | 6,6 | M6 | M20x1 | 32 | 32 | 37 | 5 | 4 | 2 | 4° | 43,4 | 36,56 | | | 81.33 € | | | B0204.05081 | stainless steel | 9 | M8 | M20x1 | 32 | 32 | 37 | 5 | 4 | 2 | 4° | 43,4 | 30,86 | | | 81.33 € | | | B0204.05101 | stainless steel | 11 | M10 | M20x1 | 32 | 32 | 37 | 5 | 4 | 2 | 4° | 43,4 | 23,41 | | | 81.33 € | | | B0204.07101 | stainless steel | 11 | M10 | M30x1,5 | 45 | 41 | 48 | 7 | 5 | 2 | 4° | 84 | 64,01 | | | 88.49 € | | | B0204.07121 | stainless steel | 13,5 | M12 | M30x1,5 | 45 | 41 | 48 | 7 | 5 | 2 | 4° | 84 | 54,82 | | | 88.49 € | | | B0204.07161 | stainless steel | 17,5 | M16 | M30x1,5 | 45 | 41 | 48 | 7 | 5 | 2 | 4° | 84 | 28,9 | | | 88.49 € | | | B0204.09161 | stainless steel | 17,5 | M16 | M40x1,5 | 58 | 53 | 62 | 9 | 6 | 2,5 | 4° | 148 | 92,9 | | | 139.12 € | | | B0204.09201 | stainless steel | 22 | M20 | M40x1,5 | 58 | 53 | 62 | 9 | 6 | 2,5 | 4° | 148 | 59,08 | | | 139.12 € | | | B0204.09241 | stainless steel | 26 | M24 | M40x1,5 | 58 | 53 | 62 | 9 | 6 | 2,5 | 4° | 148 | 20,3 | | | 139.12 € | | | B0204.10201 | stainless steel | 22 | M20 | M50x1,5 | 70 | 61 | 71 | 10 | 6 | 2,5 | 4° | 225 | 136,08 | | | 206.94 € | | | B0204.10241 | stainless steel | 26 | M24 | M50x1,5 | 70 | 61 | 71 | 10 | 6 | 2,5 | 4° | 225 | 97,3 | | | 206.94 € | | | B0204.10301 | stainless steel | 33 | M30 | M50x1,5 | 70 | 61 | 71 | 10 | 6 | 2,5 | 4° | 225 | 20,6 | | | 206.94 € | | | B0204.12241 | stainless steel | 26 | M24 | M60x2 | 80 | 67 | 79 | 12 | 7 | 3 | 4° | 323 | 195,3 | | | 234.54 € | | | B0204.12301 | stainless steel | 33 | M30 | M60x2 | 80 | 67 | 79 | 12 | 7 | 3 | 4° | 323 | 118,6 | | | 234.54 € | |
