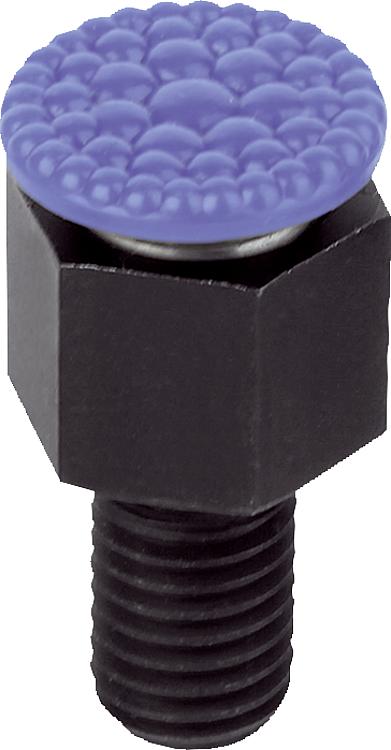

B0153_PSelf-aligning pads, external thread, with O-ring, Form P,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Body carbon steel.
Ball stainless steel with polyurethane surface.Version:Body tempered and black oxidised.
Ball polyurethane hardness Shore 60.Note:The self-aligning pads are used to support and clamp unmachined and machined workpieces.
They also serve as stops, supports and thrust pads in fixture and toolmaking.
Ball secured against rotation.
Form P: The polyurethane surface is vulcanised firmly to the ball. It is abrasion-resistant and does not discolour.
It offers optimum protection against damage to delicate surfaces. The pearl-like surface gives a firm grip and allows air to escape so as to prevent any suction effect between the contact surface and the self-aligning pads.Advantages:The built-in O-ring holds the ball in place and keeps dirt and foreign particles out, ensuring uniform movement.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

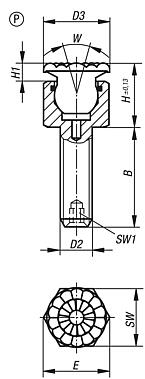

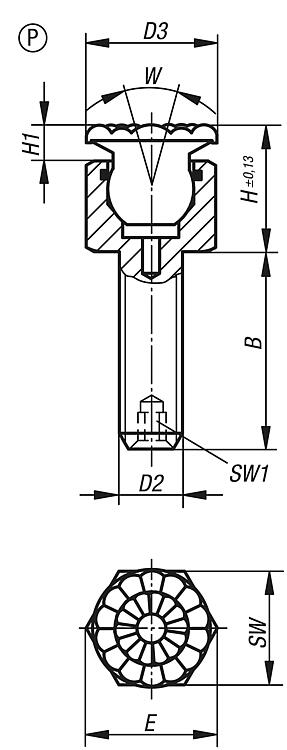

| Order No. | Form
| B | D2 | D3 | H | H1 | E | SW | SW1 | W | Ball-Ø | CAD | Acc. | Price | Order |
|---|
| B0153.606X012 | P | 12 | M6 | 10 | 12 | 4 | 11,5 | 10 | - | 28 | 7 |  | | 43.15 € | | | B0153.606X025 | P | 25 | M6 | 10 | 12 | 4 | 11,5 | 10 | - | 28 | 7 | | | 43.82 € | | | B0153.606X040 | P | 40 | M6 | 10 | 12 | 4 | 11,5 | 10 | - | 28 | 7 | | | 44.17 € | | | B0153.608X012 | P | 12 | M8 | 13 | 16,5 | 5 | 15 | 13 | - | 28 | 10 | | | 47.52 € | | | B0153.608X025 | P | 25 | M8 | 13 | 16,5 | 5 | 15 | 13 | - | 28 | 10 | | | 48.09 € | | | B0153.608X040 | P | 40 | M8 | 13 | 16,5 | 5 | 15 | 13 | - | 28 | 10 | | | 48.74 € | | | B0153.610X015 | P | 15 | M10 | 16 | 18 | 5 | 19,6 | 17 | 3 | 28 | 13 | | | 55.30 € | | | B0153.610X030 | P | 30 | M10 | 16 | 18 | 5 | 19,6 | 17 | 3 | 28 | 13 | | | 56.12 € | | | B0153.610X050 | P | 50 | M10 | 16 | 18 | 5 | 19,6 | 17 | 3 | 28 | 13 | | | 57.00 € | | | B0153.612X020 | P | 20 | M12 | 21 | 21 | 6 | 21,9 | 19 | 5 | 24 | 15 | | | 60.51 € | | | B0153.612X040 | P | 40 | M12 | 21 | 21 | 6 | 21,9 | 19 | 5 | 24 | 15 | | | 61.40 € | | | B0153.612X060 | P | 60 | M12 | 21 | 21 | 6 | 21,9 | 19 | 5 | 24 | 15 | | | 61.81 € | | | B0153.616X025 | P | 25 | M16 | 23 | 25 | 6 | 27,7 | 24 | 6 | 24 | 20 | | | 69.17 € | | | B0153.616X050 | P | 50 | M16 | 23 | 25 | 6 | 27,7 | 24 | 6 | 24 | 20 | | | 69.94 € | | | B0153.616X080 | P | 80 | M16 | 23 | 25 | 6 | 27,7 | 24 | 6 | 24 | 20 | | | 71.23 € | |
