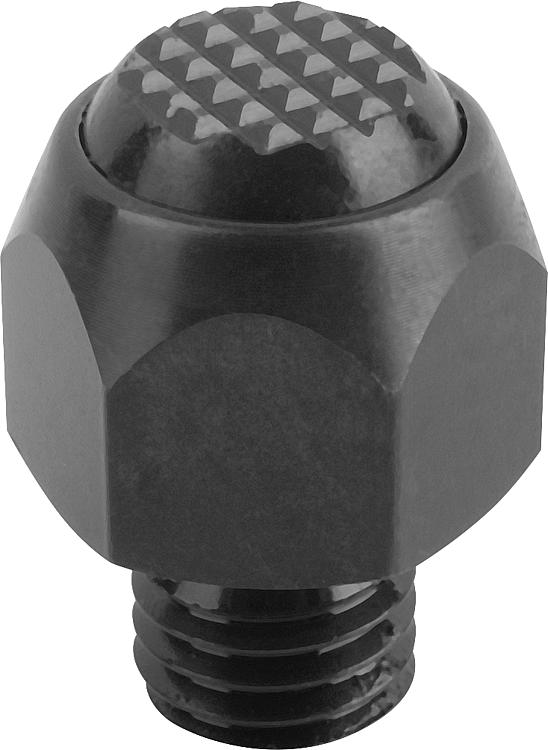

B0147Self-aligning pads, swivel angle 12°, Form F, with external... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Body carbon steel.
Ball, ball-bearing steel 1.3505.Version:Body tempered.
Ball hardened (50 - 55 HRC).Note:Self-aligning pads serve as stops, supports and thrust pads in fixture construction. They can also be installed in existing clamping devices, e.g. arness clamps.
Ball is secured against rotation.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
