Ball transfer unitsundersprung
B0506

Ball transfer units undersprung

go back

Item description/product images

DescriptionMaterial:Steel electro zinc-plated.Note:Undersprung ball transfer units allow for even distribution of loads for goods with uneven surfaces.

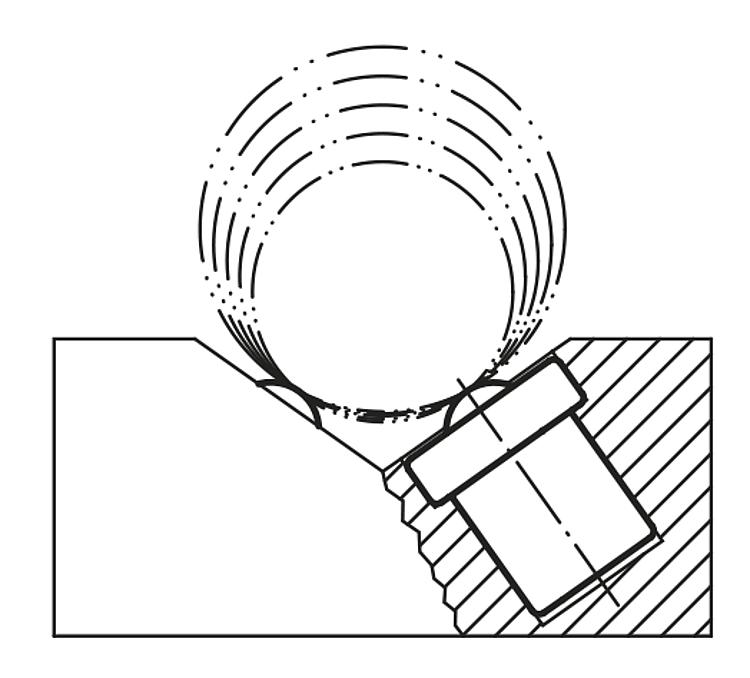

When used in machines such as punch presses and bend form machines the ball rollers spring back up after the forming process and the finished article can be rolled off.

By the “End tension (N)” the ball has completely receded into the housing.

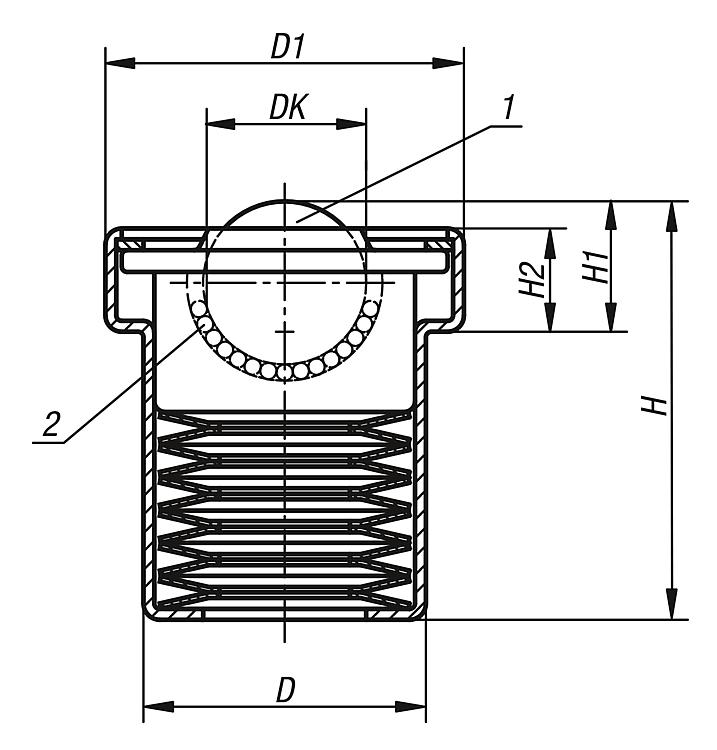

Drawing reference:
1) load ball
2) bearing balls

Form B: cap and housing electro zinc-plated, balls steel
Form C: cap and housing electro zinc-plated, balls stainless steel
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0506 Ball transfer unitsundersprung 319 kB
 BLOHM_TH_016_Kugelrollen_DE 437 kB

Drawings

Ball transfer unitsundersprung

Item selection/filter

Order No.FormDKDD1HH1H2Pre-tension
(N)
End tension
(N)
Tol. for
pre and end
tension (%)
CADAcc.PriceOrder
B0506.122B22,2395051,518,514730860+25 / -7,5 50.70 €
B0506.130B3048,2627024,417,713501600+15 / -7,5 74.97 €
B0506.145B4566,485100,535,624,222802770+15 / -7,5 198.41 €
B0506.222C22,2395051,518,514730860+25 / -7,5 57.64 €
B0506.230C3048,2627024,417,713501600+15 / -7,5 93.12 €
B0506.245C4566,485100,535,624,222802770+15 / -7,5 243.70 €
