Ball transfer unitswith fastening holes, without housing
B0508

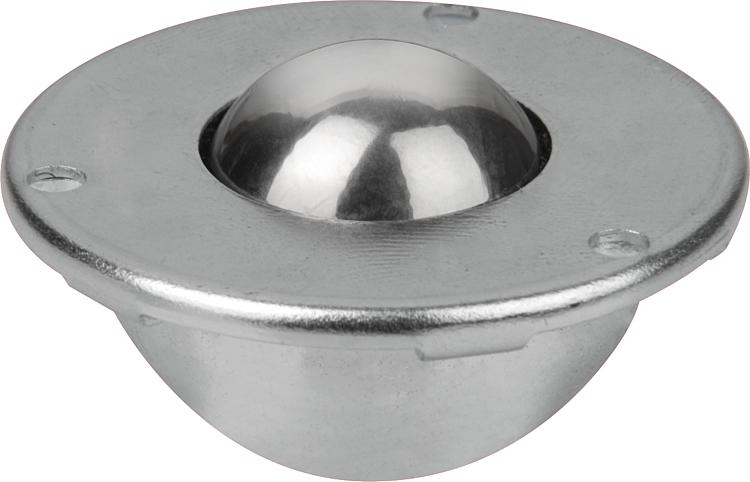

Ball transfer units with fastening holes, without housing

go back

Item description/product images

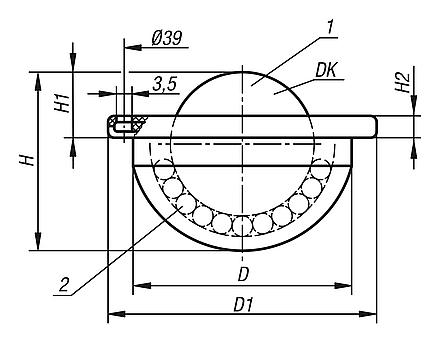

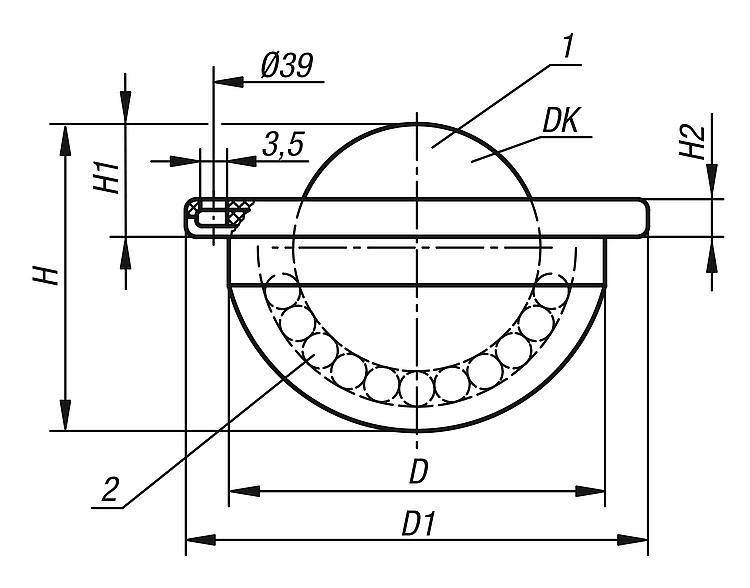

DescriptionMaterial:Steel electro zinc-plated.Note:Ball transfer units with fastening holes for easy installation and removal.Drawing reference:
1) load ball
2) bearing balls

Form B: cap and housing electro zinc-plated, balls steel
Form C: cap and housing electro zinc-plated, balls stainless steel
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0508 Ball transfer unitswith fastening holes, without housing 242 kB
 BLOHM_TH_016_Kugelrollen_DE 437 kB

Drawings

Ball transfer unitswith fastening holes, without housing

Item selection/filter

Order No.

Form

DKDD1HH1H2No. of
fastening
holes
Load
rating C
(N)
CADAcc.PriceOrder
B0508.122B2233-0,24527,79,8±0,2531200 13.48 €
B0508.222C2233-0,24527,79,8±0,253900 28.26 €
