Ball transfer unitswith spring clips
 B0509

Ball transfer units with spring clips

 go back

Item description/product images

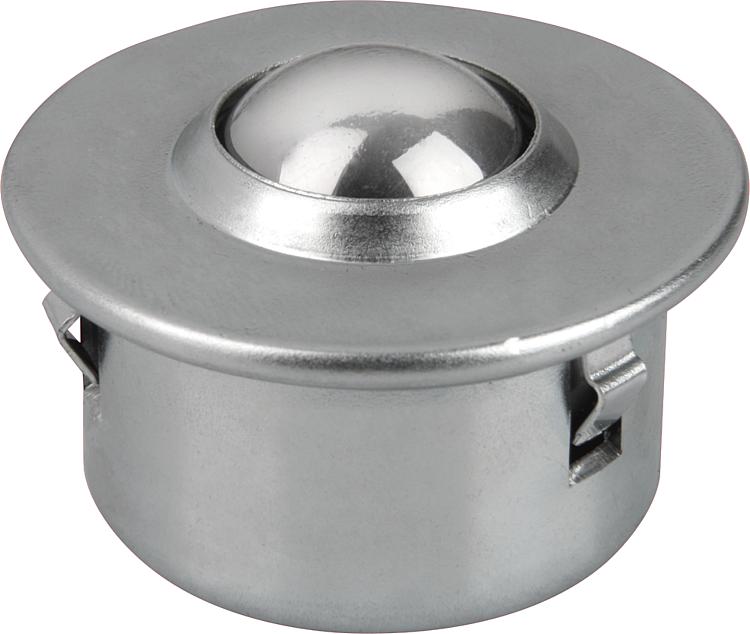

DescriptionMaterial:Steel electro zinc-plated.Note:Ball transfer units with spring clips for easy installation and removal from the functional side. The roller is held in place with spring clips, this permits generous tolerances in the receiving hole.
They have a felt seal to protect against dirt.

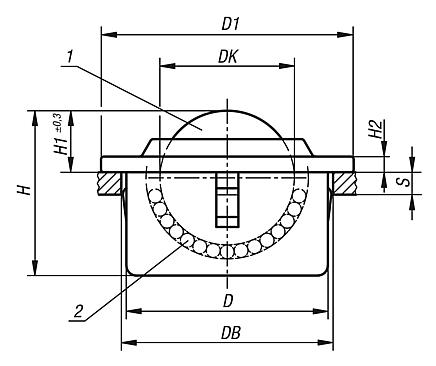

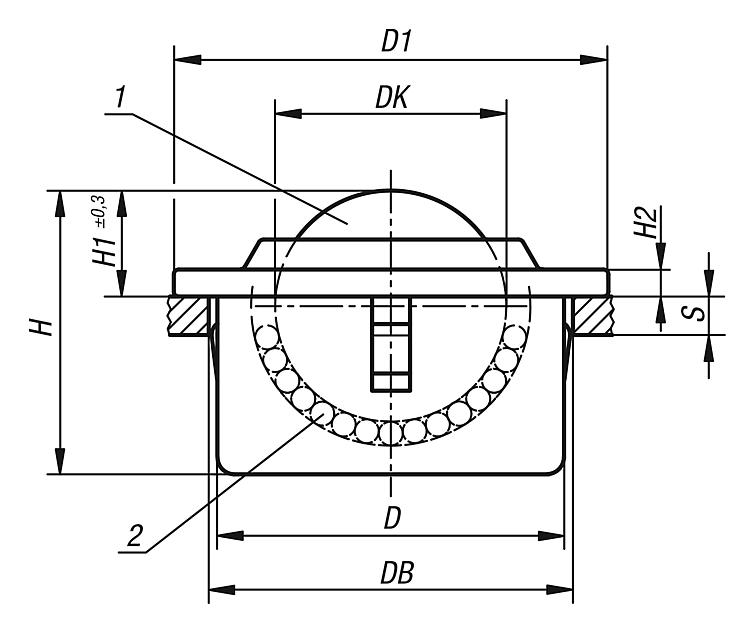

S = Minimum nominal thickness of mounting base.Drawing reference:
1) load ball
2) bearing balls

Form B: cap and housing electro zinc-plated, balls steel
Form C: cap and housing electro zinc-plated, balls stainless steel
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet B0509 Ball transfer unitswith spring clips 254 kB
BLOHM_TH_016_Kugelrollen_DE 437 kB

Drawings

Ball transfer unitswith spring clips

Item selection/filter


  •
  • B
  • C

  •
  • 15,8
  • 22,2
  • 30

  •
  • 24±0,1
  • 36±0,1
  • 45±0,1

  •
  • 31
  • 45
  • 55

  •
  • 25 +0,5
  • 37 +0,5
  • 46 +0,5

  •
  • 21
  • 30
  • 37

  •
  • 9,5
  • 9,8
  • 13,8

  •
  • 2,8
  • 4

  •
  • 2
  • 3
  • 6

  •
  • 600
  • 1600
  • 3000

Reset
Order No.Form

DKDD1Receiver-Ø
DB		HH1H2SLoad
rating C
(N)		CADAcc.PriceOrder
B0509.115B15,824±0,13125 +0,5219,52,82600  12.72 €
B0509.122B22,236±0,14537 +0,5309,82,831600  16.62 €
B0509.130B3045±0,15546 +0,53713,8463000  31.90 €
B0509.215C15,824±0,13125 +0,5219,52,82600  20.57 €
B0509.222C22,236±0,14537 +0,5309,82,831600  32.02 €
B0509.230C3045±0,15546 +0,53713,8463000  49.43 €
