Item description/product images |
|
|

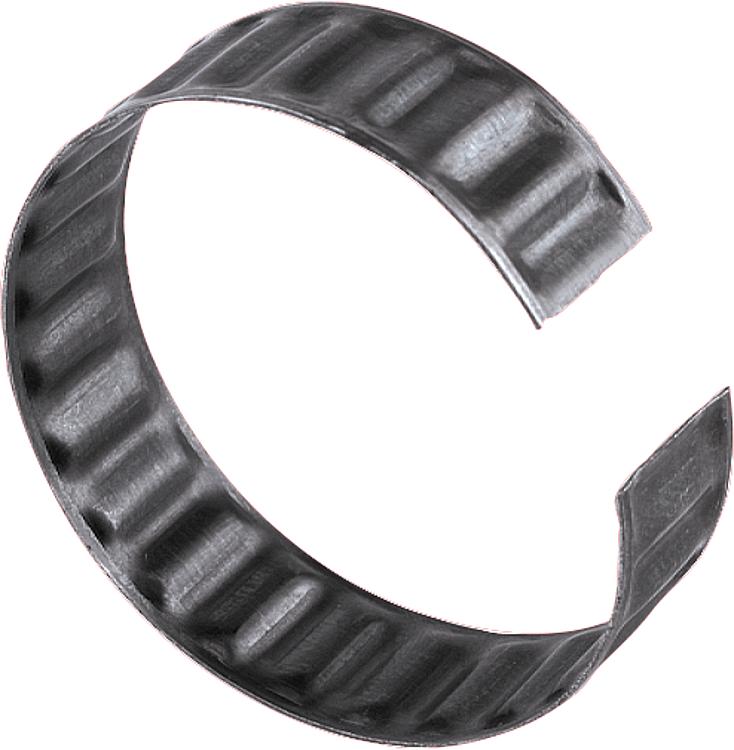

DescriptionMaterial:Spring band steelNote:The use of tolerance rings allows for a greater tolerance range between the parts being assemble.

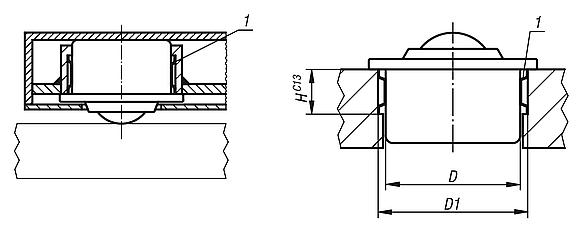

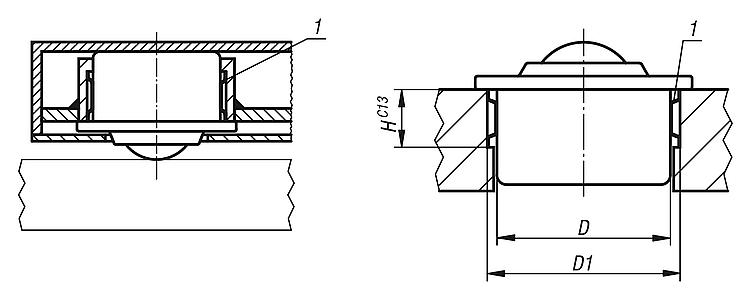

The ball transfer units can be fitted quickly and cost effectively.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| D | Assembly dimensions
D1 | Assembly dimensions
H | CAD | Acc. | Price | Order |
|---|
| B0510.024 | 24 | 25,7 +0,2 | 7 |  | | 1.02 € | | | B0510.036 | 36 | 37,7 +0,2 | 12 | | | 1.50 € | | | B0510.045 | 45 | 46,7 +0,2 | 12 | | | 1.75 € | | | B0510.062 | 62 | 64,1 +0,3 | 15 | | | 2.07 € | | | B0510.100 | 100 | 102,5 +0,35 | 19 | | | 5.61 € | |
