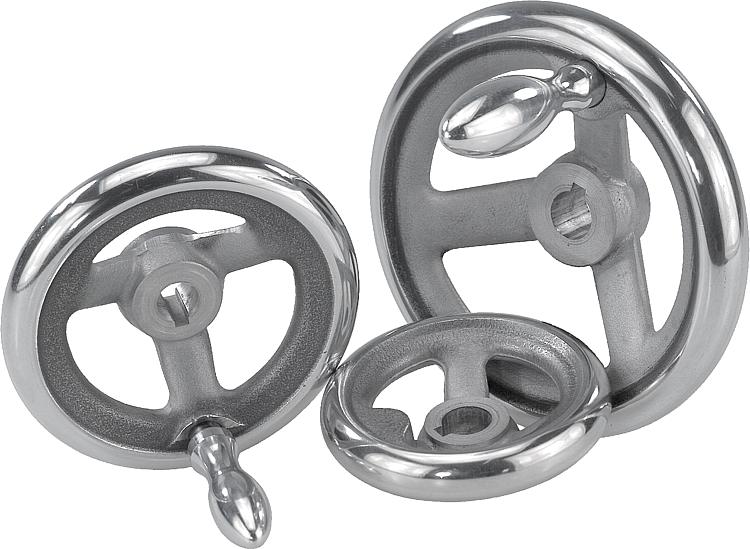

B0329Handwheels DIN 950, aluminium |
go back |
|
|
DescriptionMaterial:Handwheel aluminium.
Fixed grip aluminium, centre pin black oxidised steel.
Revolving grip aluminium, centre pin trivalent blue passivated steel.Version:Wheel rim turned and polished.
On request:Hubs with square socket or powder-coated handwheels. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

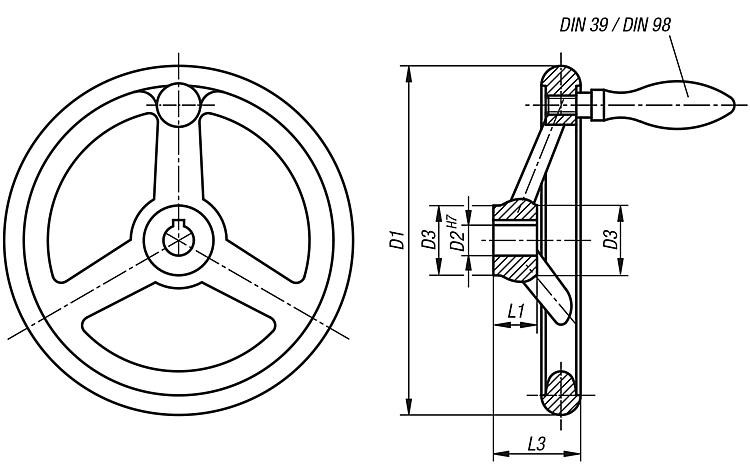

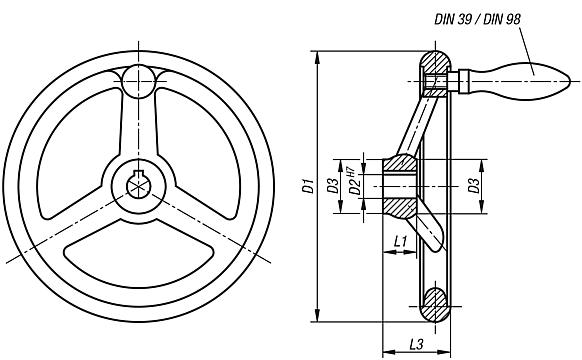

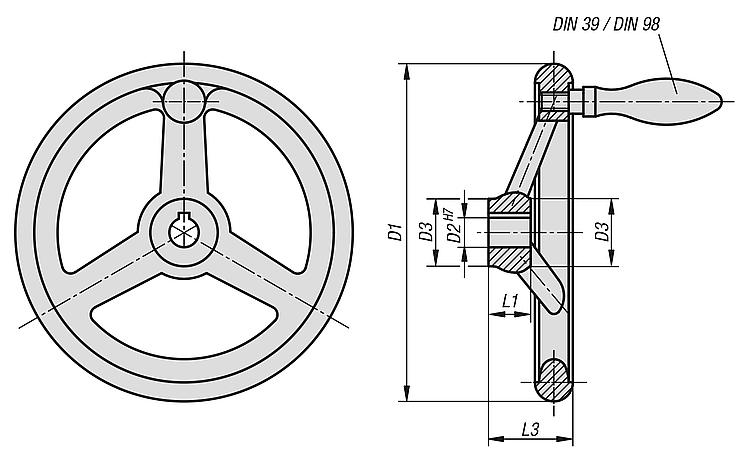

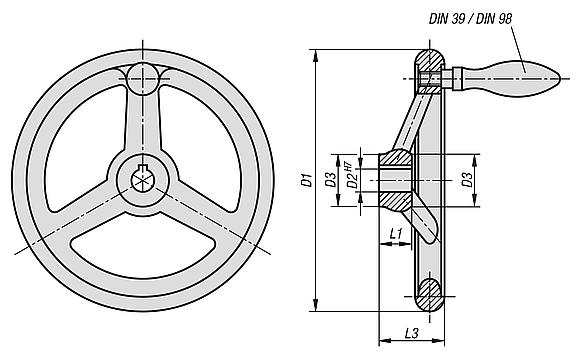

Drawings (total overview) |
| Order No. | Version 1 | D1 | D2 | D3 | L1 | L3 | B3
| T
| Number of
spokes | CAD | Acc. | Price | Order |
|---|
| B0329.0080X10 | reamed hole | 80 | 10H7 | 24 | 16 | 29 | - | - | 3 |  |  | 9.07 € | | | B0329.0080X12 | reamed hole | 80 | 12H7 | 24 | 16 | 29 | - | - | 3 | | | 9.07 € | | | B0329.0100X10 | reamed hole | 100 | 10H7 | 26 | 17 | 33 | - | - | 3 | | | 9.91 € | | | B0329.0100X12 | reamed hole | 100 | 12H7 | 26 | 17 | 33 | - | - | 3 | | | 9.91 € | | | B0329.0125X12 | reamed hole | 125 | 12H7 | 28 | 18 | 36 | - | - | 3 | | | 12.45 € | | | B0329.0125X14 | reamed hole | 125 | 14H7 | 28 | 18 | 36 | - | - | 3 | | | 12.45 € | | | B0329.0140X14 | reamed hole | 140 | 14H7 | 30 | 19 | 39 | - | - | 3 | | | 14.78 € | | | B0329.0140X16 | reamed hole | 140 | 16H7 | 30 | 19 | 39 | - | - | 3 | | | 14.78 € | | | B0329.0160X14 | reamed hole | 160 | 14H7 | 32 | 20 | 40 | - | - | 3 | | | 17.53 € | | | B0329.0160X16 | reamed hole | 160 | 16H7 | 32 | 20 | 40 | - | - | 3 | | | 17.53 € | | | B0329.0180X16 | reamed hole | 180 | 16H7 | 37 | 22 | 43 | - | - | 3 | | | 21.19 € | | | B0329.0180X18 | reamed hole | 180 | 18H7 | 37 | 22 | 43 | - | - | 3 | | | 21.19 € | | | B0329.0200X18 | reamed hole | 200 | 18H7 | 38 | 24 | 45 | - | - | 3 | | | 26.21 € | | | B0329.0200X22 | reamed hole | 200 | 22H7 | 38 | 24 | 45 | - | - | 3 | | | 26.21 € | | | B0329.0250X22 | reamed hole | 250 | 22H7 | 45 | 28 | 50 | - | - | 5 | | | 43.00 € | | | B0329.0250X26 | reamed hole | 250 | 26H7 | 45 | 28 | 50 | - | - | 5 | | | 43.00 € | | | B0329.0315X26 | reamed hole | 315 | 26H7 | 53 | 33 | 56 | - | - | 5 | | | 68.97 € | | | B0329.0315X30 | reamed hole | 315 | 30H7 | 53 | 33 | 56 | - | - | 5 | | | 68.97 € | | | B0329.0400X30 | reamed hole | 400 | 30H7 | 65 | 38 | 63 | - | - | 5 | | | 127.23 € | | | B0329.0400X34 | reamed hole | 400 | 34H7 | 65 | 38 | 63 | - | - | 5 | | | 127.23 € | | | B0329.0500X34 | reamed hole | 500 | 34H7 | 78 | 45 | 72 | - | - | 5 | | | 210.15 € | | | B0329.0500X40 | reamed hole | 500 | 40H7 | 78 | 45 | 72 | - | - | 5 | | | 210.15 € | | | B0329.1080X10 | reamed hole with slot | 80 | 10H7 | 24 | 16 | 29 | 3 | 11,4 | 3 | | | 10.84 € | | | B0329.1080X12 | reamed hole with slot | 80 | 12H7 | 24 | 16 | 29 | 4 | 13,8 | 3 | | | 10.84 € | | | B0329.1100X10 | reamed hole with slot | 100 | 10H7 | 26 | 17 | 33 | 3 | 11,4 | 3 | | | 11.64 € | | | B0329.1100X12 | reamed hole with slot | 100 | 12H7 | 26 | 17 | 33 | 4 | 13,8 | 3 | | | 11.64 € | | | B0329.1125X12 | reamed hole with slot | 125 | 12H7 | 28 | 18 | 36 | 4 | 13,8 | 3 | | | 14.23 € | | | B0329.1125X14 | reamed hole with slot | 125 | 14H7 | 28 | 18 | 36 | 5 | 16,3 | 3 | | | 14.23 € | | | B0329.1140X14 | reamed hole with slot | 140 | 14H7 | 30 | 19 | 39 | 5 | 16,3 | 3 | | | 16.69 € | | | B0329.1140X16 | reamed hole with slot | 140 | 16H7 | 30 | 19 | 39 | 5 | 18,3 | 3 | | | 16.69 € | | | B0329.1160X14 | reamed hole with slot | 160 | 14H7 | 32 | 20 | 40 | 5 | 16,3 | 3 | | | 19.54 € | | | B0329.1160X16 | reamed hole with slot | 160 | 16H7 | 32 | 20 | 40 | 5 | 18,3 | 3 | | | 19.54 € | | | B0329.1180X16 | reamed hole with slot | 180 | 16H7 | 37 | 22 | 43 | 5 | 18,3 | 3 | | | 23.22 € | | | B0329.1180X18 | reamed hole with slot | 180 | 18H7 | 37 | 22 | 43 | 6 | 20,8 | 3 | | | 23.22 € | | | B0329.1200X18 | reamed hole with slot | 200 | 18H7 | 38 | 24 | 45 | 6 | 20,8 | 3 | | | 28.38 € | | | B0329.1200X22 | reamed hole with slot | 200 | 22H7 | 38 | 24 | 45 | 6 | 24,8 | 3 | | | 28.38 € | | | B0329.1250X22 | reamed hole with slot | 250 | 22H7 | 45 | 28 | 50 | 6 | 24,8 | 5 | | | 45.81 € | | | B0329.1250X26 | reamed hole with slot | 250 | 26H7 | 45 | 28 | 50 | 8 | 29,3 | 5 | | | 45.81 € | | | B0329.1315X26 | reamed hole with slot | 315 | 26H7 | 53 | 33 | 56 | 8 | 29,3 | 5 | | | 71.73 € | | | B0329.1315X30 | reamed hole with slot | 315 | 30H7 | 53 | 33 | 56 | 8 | 33,3 | 5 | | | 71.73 € | | | B0329.1400X30 | reamed hole with slot | 400 | 30H7 | 65 | 38 | 63 | 8 | 33,3 | 5 | | | 128.75 € | | | B0329.1400X34 | reamed hole with slot | 400 | 34H7 | 65 | 38 | 63 | 10 | 37,3 | 5 | | | 128.75 € | | | B0329.1500X34 | reamed hole with slot | 500 | 34H7 | 78 | 45 | 72 | 10 | 37,3 | 5 | | | 215.18 € | | | B0329.1500X40 | reamed hole with slot | 500 | 40H7 | 78 | 45 | 72 | 12 | 43,3 | 5 | | | 215.18 € | |
|
| Order No. | Version 1 | D1 | D2 | D3 | L1 | L3 | B3
| T
| Number of
spokes | fixed machine handle
DIN 39 Form E | CAD | Acc. | Price | Order |
|---|
| B0329.2080X10 | reamed hole | 80 | 10H7 | 24 | 16 | 29 | - | - | 3 | ø16 x M6 x 50 | | | 14.40 € | | | B0329.2080X12 | reamed hole | 80 | 12H7 | 24 | 16 | 29 | - | - | 3 | ø16 x M6 x 50 | | | 14.40 € | | | B0329.2100X10 | reamed hole | 100 | 10H7 | 26 | 17 | 33 | - | - | 3 | ø16 x M6 x 50 | | | 15.94 € | | | B0329.2100X12 | reamed hole | 100 | 12H7 | 26 | 17 | 33 | - | - | 3 | ø16 x M6 x 50 | | | 15.94 € | | | B0329.2125X12 | reamed hole | 125 | 12H7 | 28 | 18 | 36 | - | - | 3 | ø20 x M8 x 64 | | | 19.91 € | | | B0329.2125X14 | reamed hole | 125 | 14H7 | 28 | 18 | 36 | - | - | 3 | ø20 x M8 x 64 | | | 19.91 € | | | B0329.2140X14 | reamed hole | 140 | 14H7 | 30 | 19 | 39 | - | - | 3 | ø20 x M8 x 64 | | | 22.17 € | | | B0329.2140X16 | reamed hole | 140 | 16H7 | 30 | 19 | 39 | - | - | 3 | ø20 x M8 x 64 | | | 22.17 € | | | B0329.2160X14 | reamed hole | 160 | 14H7 | 32 | 20 | 40 | - | - | 3 | ø25 x M10 x 80 | | | 26.37 € | | | B0329.2160X16 | reamed hole | 160 | 16H7 | 32 | 20 | 40 | - | - | 3 | ø25 x M10 x 80 | | | 26.37 € | | | B0329.2180X16 | reamed hole | 180 | 16H7 | 37 | 22 | 43 | - | - | 3 | ø25 x M10 x 80 | | | 29.67 € | | | B0329.2180X18 | reamed hole | 180 | 18H7 | 37 | 22 | 43 | - | - | 3 | ø25 x M10 x 80 | | | 29.67 € | | | B0329.2200X18 | reamed hole | 200 | 18H7 | 38 | 24 | 45 | - | - | 3 | ø25 x M10 x 80 | | | 34.26 € | | | B0329.2200X22 | reamed hole | 200 | 22H7 | 38 | 24 | 45 | - | - | 3 | ø25 x M10 x 80 | | | 34.26 € | | | B0329.2250X22 | reamed hole | 250 | 22H7 | 45 | 28 | 50 | - | - | 5 | ø32 x M12 x 100 | | | 53.76 € | | | B0329.2250X26 | reamed hole | 250 | 26H7 | 45 | 28 | 50 | - | - | 5 | ø32 x M12 x 100 | | | 53.76 € | | | B0329.2315X26 | reamed hole | 315 | 26H7 | 53 | 33 | 56 | - | - | 5 | ø32 x M12 x 100 | | | 77.37 € | | | B0329.2315X30 | reamed hole | 315 | 30H7 | 53 | 33 | 56 | - | - | 5 | ø32 x M12 x 100 | | | 77.37 € | | | B0329.2400X30 | reamed hole | 400 | 30H7 | 65 | 38 | 63 | - | - | 5 | ø36 x M16 x 112 | | | 140.54 € | | | B0329.2400X34 | reamed hole | 400 | 34H7 | 65 | 38 | 63 | - | - | 5 | ø36 x M16 x 112 | | | 140.54 € | | | B0329.2500X34 | reamed hole | 500 | 34H7 | 78 | 45 | 72 | - | - | 5 | ø36 x M16 x 112 | | | 219.21 € | | | B0329.2500X40 | reamed hole | 500 | 40H7 | 78 | 45 | 72 | - | - | 5 | ø36 x M16 x 112 | | | 219.21 € | | | B0329.3080X10 | reamed hole with slot | 80 | 10H7 | 24 | 16 | 29 | 3 | 11,4 | 3 | ø16 x M6 x 50 | | | 16.35 € | | | B0329.3080X12 | reamed hole with slot | 80 | 12H7 | 24 | 16 | 29 | 4 | 13,8 | 3 | ø16 x M6 x 50 | | | 16.35 € | | | B0329.3100X10 | reamed hole with slot | 100 | 10H7 | 26 | 17 | 33 | 3 | 11,4 | 3 | ø16 x M6 x 50 | | | 17.55 € | | | B0329.3100X12 | reamed hole with slot | 100 | 12H7 | 26 | 17 | 33 | 4 | 13,8 | 3 | ø16 x M6 x 50 | | | 17.55 € | | | B0329.3125X12 | reamed hole with slot | 125 | 12H7 | 28 | 18 | 36 | 4 | 13,8 | 3 | ø20 x M8 x 64 | | | 21.65 € | | | B0329.3125X14 | reamed hole with slot | 125 | 14H7 | 28 | 18 | 36 | 5 | 16,3 | 3 | ø20 x M8 x 64 | | | 21.65 € | | | B0329.3140X14 | reamed hole with slot | 140 | 14H7 | 30 | 19 | 39 | 5 | 16,3 | 3 | ø20 x M8 x 64 | | | 23.91 € | | | B0329.3140X16 | reamed hole with slot | 140 | 16H7 | 30 | 19 | 39 | 5 | 18,3 | 3 | ø20 x M8 x 64 | | | 23.91 € | | | B0329.3160X14 | reamed hole with slot | 160 | 14H7 | 32 | 20 | 40 | 5 | 16,3 | 3 | ø25 x M10 x 80 | | | 28.18 € | | | B0329.3160X16 | reamed hole with slot | 160 | 16H7 | 32 | 20 | 40 | 5 | 18,3 | 3 | ø25 x M10 x 80 | | | 28.18 € | | | B0329.3180X16 | reamed hole with slot | 180 | 16H7 | 37 | 22 | 43 | 5 | 18,3 | 3 | ø25 x M10 x 80 | | | 31.46 € | | | B0329.3180X18 | reamed hole with slot | 180 | 18H7 | 37 | 22 | 43 | 6 | 20,8 | 3 | ø25 x M10 x 80 | | | 31.46 € | | | B0329.3200X18 | reamed hole with slot | 200 | 18H7 | 38 | 24 | 45 | 6 | 20,8 | 3 | ø25 x M10 x 80 | | | 36.24 € | | | B0329.3200X22 | reamed hole with slot | 200 | 22H7 | 38 | 24 | 45 | 6 | 24,8 | 3 | ø25 x M10 x 80 | | | 36.24 € | | | B0329.3250X22 | reamed hole with slot | 250 | 22H7 | 45 | 28 | 50 | 6 | 24,8 | 5 | ø32 x M12 x 100 | | | 56.22 € | | | B0329.3250X26 | reamed hole with slot | 250 | 26H7 | 45 | 28 | 50 | 8 | 29,3 | 5 | ø32 x M12 x 100 | | | 56.22 € | | | B0329.3315X26 | reamed hole with slot | 315 | 26H7 | 53 | 33 | 56 | 8 | 29,3 | 5 | ø32 x M12 x 100 | | | 79.98 € | | | B0329.3315X30 | reamed hole with slot | 315 | 30H7 | 53 | 33 | 56 | 8 | 33,3 | 5 | ø32 x M12 x 100 | | | 79.98 € | | | B0329.3400X30 | reamed hole with slot | 400 | 30H7 | 65 | 38 | 63 | 8 | 33,3 | 5 | ø36 x M16 x 112 | | | 143.36 € | | | B0329.3400X34 | reamed hole with slot | 400 | 34H7 | 65 | 38 | 63 | 10 | 37,3 | 5 | ø36 x M16 x 112 | | | 143.36 € | | | B0329.3500X34 | reamed hole with slot | 500 | 34H7 | 78 | 45 | 72 | 10 | 37,3 | 5 | ø36 x M16 x 112 | | | 225.77 € | | | B0329.3500X40 | reamed hole with slot | 500 | 40H7 | 78 | 45 | 72 | 12 | 43,3 | 5 | ø36 x M16 x 112 | | | 225.77 € | |
|
| Order No. | Version 1 | D1 | D2 | D3 | L1 | L3 | B3
| T
| Number of
spokes | revolving grip
DIN 98 Form E | CAD | Acc. | Price | Order |
|---|
| B0329.4080X10 | reamed hole | 80 | 10H7 | 24 | 16 | 29 | - | - | 3 | ø16 x M6 x 54.5 | | | 17.92 € | | | B0329.4080X12 | reamed hole | 80 | 12H7 | 24 | 16 | 29 | - | - | 3 | ø16 x M6 x 54.5 | | | 17.92 € | | | B0329.4100X10 | reamed hole | 100 | 10H7 | 26 | 17 | 33 | - | - | 3 | ø16 x M6 x 54.5 | | | 18.60 € | | | B0329.4100X12 | reamed hole | 100 | 12H7 | 26 | 17 | 33 | - | - | 3 | ø16 x M6 x 54.5 | | | 18.60 € | | | B0329.4125X12 | reamed hole | 125 | 12H7 | 28 | 18 | 36 | - | - | 3 | ø20 x M8 x 67 | | | 22.61 € | | | B0329.4125X14 | reamed hole | 125 | 14H7 | 28 | 18 | 36 | - | - | 3 | ø20 x M8 x 67 | | | 22.61 € | | | B0329.4140X14 | reamed hole | 140 | 14H7 | 30 | 19 | 39 | - | - | 3 | ø20 x M8 x 67 | | | 25.38 € | | | B0329.4140X16 | reamed hole | 140 | 16H7 | 30 | 19 | 39 | - | - | 3 | ø20 x M8 x 67 | | | 25.38 € | | | B0329.4160X14 | reamed hole | 160 | 14H7 | 32 | 20 | 40 | - | - | 3 | ø25 x M10 x 83 | | | 29.33 € | | | B0329.4160X16 | reamed hole | 160 | 16H7 | 32 | 20 | 40 | - | - | 3 | ø25 x M10 x 83 | | | 29.33 € | | | B0329.4180X16 | reamed hole | 180 | 16H7 | 37 | 22 | 43 | - | - | 3 | ø25 x M10 x 83 | | | 35.75 € | | | B0329.4180X18 | reamed hole | 180 | 18H7 | 37 | 22 | 43 | - | - | 3 | ø25 x M10 x 83 | | | 35.75 € | | | B0329.4200X18 | reamed hole | 200 | 18H7 | 38 | 24 | 45 | - | - | 3 | ø25 x M10 x 83 | | | 38.18 € | | | B0329.4200X22 | reamed hole | 200 | 22H7 | 38 | 24 | 45 | - | - | 3 | ø25 x M10 x 83 | | | 38.18 € | | | B0329.4250X22 | reamed hole | 250 | 22H7 | 45 | 28 | 50 | - | - | 5 | ø32 x M12 x 105,5 | | | 57.84 € | | | B0329.4250X26 | reamed hole | 250 | 26H7 | 45 | 28 | 50 | - | - | 5 | ø32 x M12 x 105,5 | | | 57.84 € | | | B0329.4315X26 | reamed hole | 315 | 26H7 | 53 | 33 | 56 | - | - | 5 | ø32 x M12 x 105,5 | | | 83.63 € | | | B0329.4315X30 | reamed hole | 315 | 30H7 | 53 | 33 | 56 | - | - | 5 | ø32 x M12 x 105,5 | | | 83.63 € | | | B0329.4400X30 | reamed hole | 400 | 30H7 | 65 | 38 | 63 | - | - | 5 | ø36 x M16 x 117 | | | 139.52 € | | | B0329.4400X34 | reamed hole | 400 | 34H7 | 65 | 38 | 63 | - | - | 5 | ø36 x M16 x 117 | | | 139.52 € | | | B0329.4500X34 | reamed hole | 500 | 34H7 | 78 | 45 | 72 | - | - | 5 | ø36 x M16 x 117 | | | 216.54 € | | | B0329.4500X40 | reamed hole | 500 | 40H7 | 78 | 45 | 72 | - | - | 5 | ø36 x M16 x 117 | | | 216.54 € | | | B0329.5080X10 | reamed hole with slot | 80 | 10H7 | 24 | 16 | 29 | 3 | 11,4 | 3 | ø16 x M6 x 54.5 | | | 19.37 € | | | B0329.5080X12 | reamed hole with slot | 80 | 12H7 | 24 | 16 | 29 | 4 | 13,8 | 3 | ø16 x M6 x 54.5 | | | 19.37 € | | | B0329.5100X10 | reamed hole with slot | 100 | 10H7 | 26 | 17 | 33 | 3 | 11,4 | 3 | ø16 x M6 x 54.5 | | | 20.67 € | | | B0329.5100X12 | reamed hole with slot | 100 | 12H7 | 26 | 17 | 33 | 4 | 13,8 | 3 | ø16 x M6 x 54.5 | | | 20.67 € | | | B0329.5125X12 | reamed hole with slot | 125 | 12H7 | 28 | 18 | 36 | 4 | 13,8 | 3 | ø20 x M8 x 67 | | | 24.86 € | | | B0329.5125X14 | reamed hole with slot | 125 | 14H7 | 28 | 18 | 36 | 5 | 16,3 | 3 | ø20 x M8 x 67 | | | 24.86 € | | | B0329.5140X14 | reamed hole with slot | 140 | 14H7 | 30 | 19 | 39 | 5 | 16,3 | 3 | ø20 x M8 x 67 | | | 27.71 € | | | B0329.5140X16 | reamed hole with slot | 140 | 16H7 | 30 | 19 | 39 | 5 | 18,3 | 3 | ø20 x M8 x 67 | | | 27.71 € | | | B0329.5160X14 | reamed hole with slot | 160 | 14H7 | 32 | 20 | 40 | 5 | 16,3 | 3 | ø25 x M10 x 83 | | | 30.94 € | | | B0329.5160X16 | reamed hole with slot | 160 | 16H7 | 32 | 20 | 40 | 5 | 18,3 | 3 | ø25 x M10 x 83 | | | 30.94 € | | | B0329.5180X16 | reamed hole with slot | 180 | 16H7 | 37 | 22 | 43 | 5 | 18,3 | 3 | ø25 x M10 x 83 | | | 37.45 € | | | B0329.5180X18 | reamed hole with slot | 180 | 18H7 | 37 | 22 | 43 | 6 | 20,8 | 3 | ø25 x M10 x 83 | | | 37.45 € | | | B0329.5200X18 | reamed hole with slot | 200 | 18H7 | 38 | 24 | 45 | 6 | 20,8 | 3 | ø25 x M10 x 83 | | | 40.05 € | | | B0329.5200X22 | reamed hole with slot | 200 | 22H7 | 38 | 24 | 45 | 6 | 24,8 | 3 | ø25 x M10 x 83 | | | 40.05 € | | | B0329.5250X22 | reamed hole with slot | 250 | 22H7 | 45 | 28 | 50 | 6 | 24,8 | 5 | ø32 x M12 x 105,5 | | | 60.05 € | | | B0329.5250X26 | reamed hole with slot | 250 | 26H7 | 45 | 28 | 50 | 8 | 29,3 | 5 | ø32 x M12 x 105,5 | | | 60.05 € | | | B0329.5315X26 | reamed hole with slot | 315 | 26H7 | 53 | 33 | 56 | 8 | 29,3 | 5 | ø32 x M12 x 105,5 | | | 86.05 € | | | B0329.5315X30 | reamed hole with slot | 315 | 30H7 | 53 | 33 | 56 | 8 | 33,3 | 5 | ø32 x M12 x 105,5 | | | 86.05 € | | | B0329.5400X30 | reamed hole with slot | 400 | 30H7 | 65 | 38 | 63 | 8 | 33,3 | 5 | ø36 x M16 x 117 | | | 142.24 € | | | B0329.5400X34 | reamed hole with slot | 400 | 34H7 | 65 | 38 | 63 | 10 | 37,3 | 5 | ø36 x M16 x 117 | | | 142.24 € | | | B0329.5500X34 | reamed hole with slot | 500 | 34H7 | 78 | 45 | 72 | 10 | 37,3 | 5 | ø36 x M16 x 117 | | | 221.97 € | | | B0329.5500X40 | reamed hole with slot | 500 | 40H7 | 78 | 45 | 72 | 12 | 43,3 | 5 | ø36 x M16 x 117 | | | 221.97 € | |
|
