B0327Handwheels with safety grip |
go back |
|
Item description/product images |
|
|

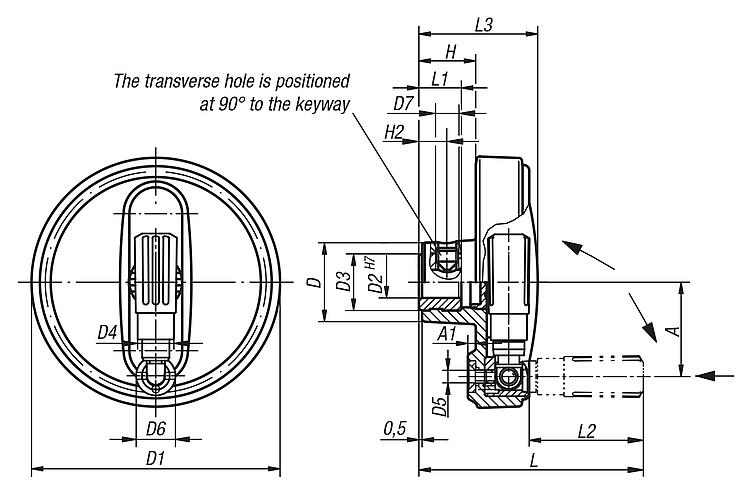

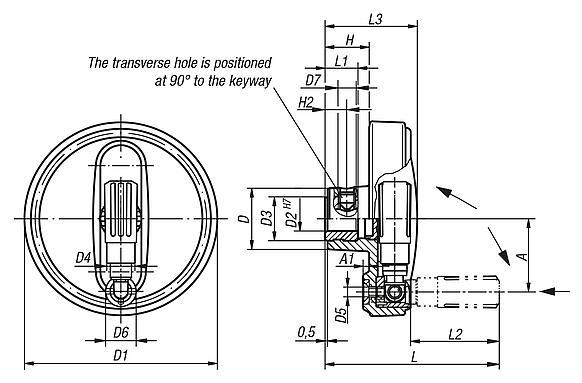

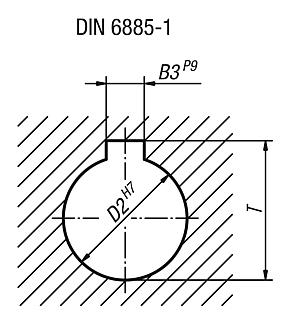

DescriptionMaterial:Black grey thermoplastic.Version:Steel parts black oxidised.Note:The hub cover is supplied loose. The handwheels can be secured using a transverse pin or by parallel key connection together with a DIN 6912 socket head screw and a DIN 7349 washer.
Two steps have to be carried out to bring the cylindrical safety grip into operating position:
- Swivel the grip around the axis of rotation until it stops (90°).
- Push grip in axial position into locking position.
The pressed-in position is the most comfortable position to crank. When released, the grip automatically returns to original position.
Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.
For assembly examples, see K0256.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Version
| Version 2 | Component
material | D | D1 | D2 | D3 | D4 | D5 | D6 | D7 | A | A1 | H | H2 | L | L1 | L2 | L3 | B3
| T
| CAD | Acc. | Price | Order |
|---|
| B0327.108008 | reamed hole | - | thermoplastic | 25 | 80 | 8H7 | 19 | 14 | M4 | 13 | - | 30 | 2,5 | 17,6 | - | 72,6 | 13 | 38 | 36,7 | - | - |  | | 44.09 € | | | B0327.108010 | reamed hole | - | thermoplastic | 25 | 80 | 10H7 | 19 | 14 | M4 | 13 | - | 30 | 2,5 | 17,6 | - | 72,6 | 13 | 38 | 36,7 | - | - | | | 44.09 € | | | B0327.108012 | reamed hole | - | thermoplastic | 25 | 80 | 12H7 | 19 | 14 | M4 | 13 | - | 30 | 2,5 | 17,6 | - | 72,6 | 13 | 38 | 36,7 | - | - | | | 44.09 € | | | B0327.210010 | reamed hole | - | thermoplastic | 28 | 100 | 10H7 | 19 | 16 | M5 | 16 | - | 38 | 3 | 20,1 | - | 88,6 | 13 | 47,5 | 43,5 | - | - | | | 49.58 € | | | B0327.210012 | reamed hole | - | thermoplastic | 28 | 100 | 12H7 | 19 | 16 | M5 | 16 | - | 38 | 3 | 20,1 | - | 88,6 | 13 | 47,5 | 43,5 | - | - | | | 49.58 € | | | B0327.312512 | reamed hole | - | thermoplastic | 35 | 125 | 12H7 | 25 | 20 | M6 | 20 | - | 47,5 | 4 | 23,3 | - | 107,7 | 18,5 | 58,4 | 52,1 | - | - | | | 50.02 € | | | B0327.312514 | reamed hole | - | thermoplastic | 35 | 125 | 14H7 | 25 | 20 | M6 | 20 | - | 47,5 | 4 | 23,3 | - | 107,7 | 18,5 | 58,4 | 52,1 | - | - | | | 50.02 € | | | B0327.312516 | reamed hole | - | thermoplastic | 35 | 125 | 16H7 | 25 | 20 | M6 | 20 | - | 47,5 | 4 | 23,3 | - | 107,7 | 18,5 | 58,4 | 52,1 | - | - | | | 50.02 € | | | B0327.416014 | reamed hole | - | thermoplastic | 45 | 160 | 14H7 | 25 | 25 | M8 | 26 | - | 62 | 5,6 | 28 | - | 142 | 18,5 | 81,6 | 63,8 | - | - | | | 51.23 € | | | B0327.416016 | reamed hole | - | thermoplastic | 45 | 160 | 16H7 | 25 | 25 | M8 | 26 | - | 62 | 5,6 | 28 | - | 142 | 18,5 | 81,6 | 63,8 | - | - | | | 51.23 € | | | B0327.10800802 | reamed hole with slot | - | thermoplastic | 25 | 80 | 8H7 | 19 | 14 | M4 | 13 | - | 30 | 2,5 | 17,6 | - | 72,6 | 13 | 38 | 36,7 | 2 | 9 | | | 46.74 € | | | B0327.10801003 | reamed hole with slot | - | thermoplastic | 25 | 80 | 10H7 | 19 | 14 | M4 | 13 | - | 30 | 2,5 | 17,6 | - | 72,6 | 13 | 38 | 36,7 | 3 | 11,4 | | | 46.74 € | | | B0327.10801204 | reamed hole with slot | - | thermoplastic | 25 | 80 | 12H7 | 19 | 14 | M4 | 13 | - | 30 | 2,5 | 17,6 | - | 72,6 | 13 | 38 | 36,7 | 4 | 13,8 | | | 46.74 € | | | B0327.21001003 | reamed hole with slot | - | thermoplastic | 28 | 100 | 10H7 | 19 | 16 | M5 | 16 | - | 38 | 3 | 20,1 | - | 88,6 | 13 | 47,5 | 43,5 | 3 | 11,4 | | | 52.24 € | | | B0327.21001204 | reamed hole with slot | - | thermoplastic | 28 | 100 | 12H7 | 19 | 16 | M5 | 16 | - | 38 | 3 | 20,1 | - | 88,6 | 13 | 47,5 | 43,5 | 4 | 13,8 | | | 52.24 € | | | B0327.31251204 | reamed hole with slot | - | thermoplastic | 35 | 125 | 12H7 | 25 | 20 | M6 | 20 | - | 47,5 | 4 | 23,3 | - | 107,7 | 18,5 | 58,4 | 52,1 | 4 | 13,8 | | | 52.67 € | | | B0327.31251405 | reamed hole with slot | - | thermoplastic | 35 | 125 | 14H7 | 25 | 20 | M6 | 20 | - | 47,5 | 4 | 23,3 | - | 107,7 | 18,5 | 58,4 | 52,1 | 5 | 16,3 | | | 52.67 € | | | B0327.31251605 | reamed hole with slot | - | thermoplastic | 35 | 125 | 16H7 | 25 | 20 | M6 | 20 | - | 47,5 | 4 | 23,3 | - | 107,7 | 18,5 | 58,4 | 52,1 | 5 | 18,3 | | | 52.67 € | | | B0327.41601405 | reamed hole with slot | - | thermoplastic | 45 | 160 | 14H7 | 25 | 25 | M8 | 26 | - | 62 | 5,6 | 28 | - | 142 | 18,5 | 81,6 | 63,8 | 5 | 16,3 | | | 53.92 € | | | B0327.41601605 | reamed hole with slot | - | thermoplastic | 45 | 160 | 16H7 | 25 | 25 | M8 | 26 | - | 62 | 5,6 | 28 | - | 142 | 18,5 | 81,6 | 63,8 | 5 | 18,3 | | | 53.92 € | | | B0327.1080086 | reamed hole | with transverse bore | thermoplastic | 25 | 80 | 8H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | 7,5 | 72,6 | 13 | 38 | 36,7 | - | - | | | 47.42 € | | | B0327.1080106 | reamed hole | with transverse bore | thermoplastic | 25 | 80 | 10H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | 7,5 | 72,6 | 13 | 38 | 36,7 | - | - | | | 47.42 € | | | B0327.1080126 | reamed hole | with transverse bore | thermoplastic | 25 | 80 | 12H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | 7,5 | 72,6 | 13 | 38 | 36,7 | - | - | | | 47.42 € | | | B0327.2100106 | reamed hole | with transverse bore | thermoplastic | 28 | 100 | 10H7 | 19 | 16 | M5 | 16 | M6 | 38 | 3 | 20,1 | 7,5 | 88,6 | 13 | 47,5 | 43,5 | - | - | | | 52.95 € | | | B0327.2100126 | reamed hole | with transverse bore | thermoplastic | 28 | 100 | 12H7 | 19 | 16 | M5 | 16 | M6 | 38 | 3 | 20,1 | 7,5 | 88,6 | 13 | 47,5 | 43,5 | - | - | | | 52.95 € | | | B0327.3125126 | reamed hole | with transverse bore | thermoplastic | 35 | 125 | 12H7 | 25 | 20 | M6 | 20 | M6 | 47,5 | 4 | 23,3 | 7,5 | 107,7 | 18,5 | 58,4 | 52,1 | - | - | | | 53.37 € | | | B0327.3125146 | reamed hole | with transverse bore | thermoplastic | 35 | 125 | 14H7 | 25 | 20 | M6 | 20 | M6 | 47,5 | 4 | 23,3 | 7,5 | 107,7 | 18,5 | 58,4 | 52,1 | - | - | | | 53.37 € | | | B0327.3125166 | reamed hole | with transverse bore | thermoplastic | 35 | 125 | 16H7 | 25 | 20 | M6 | 20 | M6 | 47,5 | 4 | 23,3 | 7,5 | 107,7 | 18,5 | 58,4 | 52,1 | - | - | | | 53.37 € | | | B0327.4160146 | reamed hole | with transverse bore | thermoplastic | 45 | 160 | 14H7 | 25 | 25 | M8 | 26 | M6 | 62 | 5,6 | 28 | 7,5 | 142 | 18,5 | 81,6 | 63,8 | - | - | | | 54.57 € | | | B0327.4160166 | reamed hole | with transverse bore | thermoplastic | 45 | 160 | 16H7 | 25 | 25 | M8 | 26 | M6 | 62 | 5,6 | 28 | 7,5 | 142 | 18,5 | 81,6 | 63,8 | - | - | | | 54.57 € | | | B0327.108008026 | reamed hole with slot | with transverse bore | thermoplastic | 25 | 80 | 8H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | 7,5 | 72,6 | 13 | 38 | 36,7 | 2 | 9 | | | 50.08 € | | | B0327.108010036 | reamed hole with slot | with transverse bore | thermoplastic | 25 | 80 | 10H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | 7,5 | 72,6 | 13 | 38 | 36,7 | 3 | 11,4 | | | 50.08 € | | | B0327.108012046 | reamed hole with slot | with transverse bore | thermoplastic | 25 | 80 | 12H7 | 19 | 14 | M4 | 13 | M6 | 30 | 2,5 | 17,6 | 7,5 | 72,6 | 13 | 38 | 36,7 | 4 | 13,8 | | | 50.08 € | | | B0327.210010036 | reamed hole with slot | with transverse bore | thermoplastic | 28 | 100 | 10H7 | 19 | 16 | M5 | 16 | M6 | 38 | 3 | 20,1 | 7,5 | 88,6 | 13 | 47,5 | 43,5 | 3 | 11,4 | | | 55.57 € | | | B0327.210012046 | reamed hole with slot | with transverse bore | thermoplastic | 28 | 100 | 12H7 | 19 | 16 | M5 | 16 | M6 | 38 | 3 | 20,1 | 7,5 | 88,6 | 13 | 47,5 | 43,5 | 4 | 13,8 | | | 55.57 € | | | B0327.312512046 | reamed hole with slot | with transverse bore | thermoplastic | 35 | 125 | 12H7 | 25 | 20 | M6 | 20 | M6 | 47,5 | 4 | 23,3 | 7,5 | 107,7 | 18,5 | 58,4 | 52,1 | 4 | 13,8 | | | 56.02 € | | | B0327.312514056 | reamed hole with slot | with transverse bore | thermoplastic | 35 | 125 | 14H7 | 25 | 20 | M6 | 20 | M6 | 47,5 | 4 | 23,3 | 7,5 | 107,7 | 18,5 | 58,4 | 52,1 | 5 | 16,3 | | | 56.02 € | | | B0327.312516056 | reamed hole with slot | with transverse bore | thermoplastic | 35 | 125 | 16H7 | 25 | 20 | M6 | 20 | M6 | 47,5 | 4 | 23,3 | 7,5 | 107,7 | 18,5 | 58,4 | 52,1 | 5 | 18,3 | | | 56.02 € | | | B0327.416014056 | reamed hole with slot | with transverse bore | thermoplastic | 45 | 160 | 14H7 | 25 | 25 | M8 | 26 | M6 | 62 | 5,6 | 28 | 7,5 | 142 | 18,5 | 81,6 | 63,8 | 5 | 16,3 | | | 57.26 € | | | B0327.416016056 | reamed hole with slot | with transverse bore | thermoplastic | 45 | 160 | 16H7 | 25 | 25 | M8 | 26 | M6 | 62 | 5,6 | 28 | 7,5 | 142 | 18,5 | 81,6 | 63,8 | 5 | 18,3 | | | 57.26 € | |
