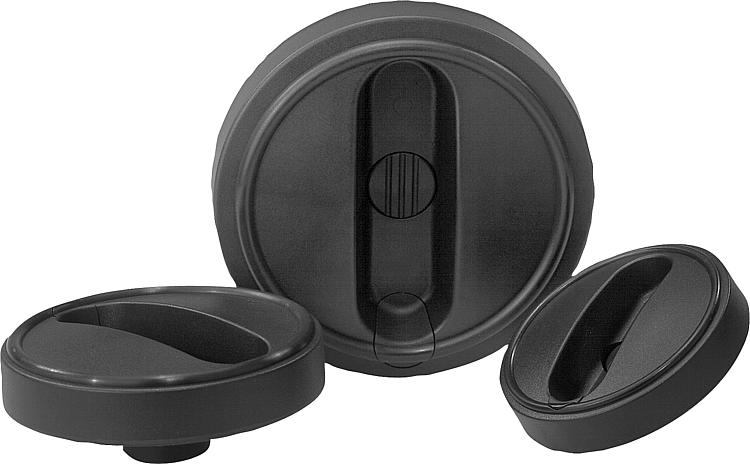

Item description/product images |
|
|
DescriptionMaterial:Handwheel body thermoplastic.
Hub steel, strength class 5.8, or stainless steel 1.4404. Version:Thermoplastic black grey.
Steel parts black oxidised.
Stainless steel bright.Note:The hub cover is supplied unassembled.
The handwheels can be secured to a shaft using a transverse pin or by parallel key connection together with a DIN 6912 cap screw and a DIN 7349 washer.
Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

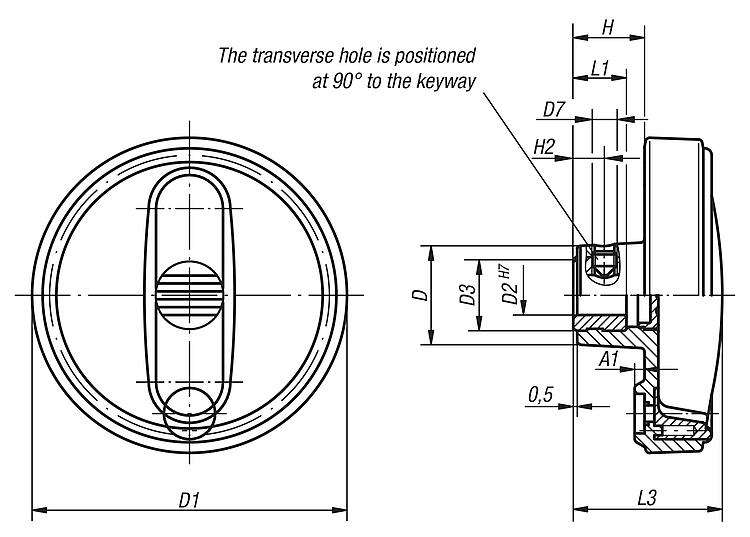

| Order No. | Version 1 | Version 2 | Component
material | D
| D1 | D2 | D3 | D7 | A1 | H | H2 | L1 | L3 | B3
| T
| CAD | Acc. | Price | Order |
|---|
| B0324.108008 | reamed hole | without transverse hole | steel | 25 | 80 | 8H7 | 19 | - | 2,5 | 17,5 | - | 13 | 37,5 | - | - |  | | 8.50 € | | | B0324.108010 | reamed hole | without transverse hole | steel | 25 | 80 | 10H7 | 19 | - | 2,5 | 17,5 | - | 13 | 37,5 | - | - | | | 8.50 € | | | B0324.108012 | reamed hole | without transverse hole | steel | 25 | 80 | 12H7 | 19 | - | 2,5 | 17,5 | - | 13 | 37,5 | - | - | | | 8.50 € | | | B0324.210010 | reamed hole | without transverse hole | steel | 28 | 100 | 10H7 | 19 | - | 3 | 20 | - | 13 | 44 | - | - | | | 10.87 € | | | B0324.210012 | reamed hole | without transverse hole | steel | 28 | 100 | 12H7 | 19 | - | 3 | 20 | - | 13 | 44 | - | - | | | 10.87 € | | | B0324.312512 | reamed hole | without transverse hole | steel | 35 | 125 | 12H7 | 25 | - | 4 | 23,5 | - | 18,5 | 53 | - | - | | | 15.12 € | | | B0324.312514 | reamed hole | without transverse hole | steel | 35 | 125 | 14H7 | 25 | - | 4 | 23,5 | - | 18,5 | 53 | - | - | | | 15.12 € | | | B0324.312516 | reamed hole | without transverse hole | steel | 35 | 125 | 16H7 | 25 | - | 4 | 23,5 | - | 18,5 | 53 | - | - | | | 15.12 € | | | B0324.416014 | reamed hole | without transverse hole | steel | 45 | 160 | 14H7 | 25 | - | 5,6 | 28 | - | 18,5 | 64,5 | - | - | | | 17.25 € | | | B0324.416016 | reamed hole | without transverse hole | steel | 45 | 160 | 16H7 | 25 | - | 5,6 | 28 | - | 18,5 | 64,5 | - | - | | | 17.25 € | | | B0324.10800802 | reamed hole with slot | without transverse hole | steel | 25 | 80 | 8H7 | 19 | - | 2,5 | 17,5 | - | 13 | 37,5 | 2 | 9 | | | 11.19 € | | | B0324.10801003 | reamed hole with slot | without transverse hole | steel | 25 | 80 | 10H7 | 19 | - | 2,5 | 17,5 | - | 13 | 37,5 | 3 | 11,4 | | | 11.19 € | | | B0324.10801204 | reamed hole with slot | without transverse hole | steel | 25 | 80 | 12H7 | 19 | - | 2,5 | 17,5 | - | 13 | 37,5 | 4 | 13,8 | | | 11.19 € | | | B0324.21001003 | reamed hole with slot | without transverse hole | steel | 28 | 100 | 10H7 | 19 | - | 3 | 20 | - | 13 | 44 | 3 | 11,4 | | | 13.51 € | | | B0324.21001204 | reamed hole with slot | without transverse hole | steel | 28 | 100 | 12H7 | 19 | - | 3 | 20 | - | 13 | 44 | 4 | 13,8 | | | 13.51 € | | | B0324.31251204 | reamed hole with slot | without transverse hole | steel | 35 | 125 | 12H7 | 25 | - | 4 | 23,5 | - | 18,5 | 53 | 4 | 13,8 | | | 17.76 € | | | B0324.31251405 | reamed hole with slot | without transverse hole | steel | 35 | 125 | 14H7 | 25 | - | 4 | 23,5 | - | 18,5 | 53 | 5 | 16,3 | | | 17.76 € | | | B0324.31251605 | reamed hole with slot | without transverse hole | steel | 35 | 125 | 16H7 | 25 | - | 4 | 23,5 | - | 18,5 | 53 | 5 | 18,3 | | | 17.76 € | | | B0324.41601405 | reamed hole with slot | without transverse hole | steel | 45 | 160 | 14H7 | 25 | - | 5,6 | 28 | - | 18,5 | 64,5 | 5 | 16,3 | | | 19.91 € | | | B0324.41601605 | reamed hole with slot | without transverse hole | steel | 45 | 160 | 16H7 | 25 | - | 5,6 | 28 | - | 18,5 | 64,5 | 5 | 18,3 | | | 19.91 € | | | B0324.1080086 | reamed hole | with transverse bore | steel | 25 | 80 | 8H7 | 19 | M6 | 2,5 | 17,5 | 7,5 | 13 | 37,5 | - | - | | | 11.85 € | | | B0324.1080106 | reamed hole | with transverse bore | steel | 25 | 80 | 10H7 | 19 | M6 | 2,5 | 17,5 | 7,5 | 13 | 37,5 | - | - | | | 11.85 € | | | B0324.1080126 | reamed hole | with transverse bore | steel | 25 | 80 | 12H7 | 19 | M6 | 2,5 | 17,5 | 7,5 | 13 | 37,5 | - | - | | | 11.85 € | | | B0324.2100106 | reamed hole | with transverse bore | steel | 28 | 100 | 10H7 | 19 | M6 | 3 | 20 | 7,5 | 13 | 44 | - | - | | | 14.21 € | | | B0324.2100126 | reamed hole | with transverse bore | steel | 28 | 100 | 12H7 | 19 | M6 | 3 | 20 | 7,5 | 13 | 44 | - | - | | | 14.21 € | | | B0324.3125126 | reamed hole | with transverse bore | steel | 35 | 125 | 12H7 | 25 | M6 | 4 | 23,5 | 7,5 | 18,5 | 53 | - | - | | | 18.48 € | | | B0324.3125146 | reamed hole | with transverse bore | steel | 35 | 125 | 14H7 | 25 | M6 | 4 | 23,5 | 7,5 | 18,5 | 53 | - | - | | | 18.48 € | | | B0324.3125166 | reamed hole | with transverse bore | steel | 35 | 125 | 16H7 | 25 | M6 | 4 | 23,5 | 7,5 | 18,5 | 53 | - | - | | | 18.48 € | | | B0324.4160146 | reamed hole | with transverse bore | steel | 45 | 160 | 14H7 | 25 | M6 | 5,6 | 28 | 7,5 | 18,5 | 64,5 | - | - | | | 20.62 € | | | B0324.4160166 | reamed hole | with transverse bore | steel | 45 | 160 | 16H7 | 25 | M6 | 5,6 | 28 | 7,5 | 18,5 | 64,5 | - | - | | | 20.62 € | | | B0324.108008026 | reamed hole with slot | with transverse bore | steel | 25 | 80 | 8H7 | 19 | M6 | 2,5 | 17,5 | 7,5 | 13 | 37,5 | 2 | 9 | | | 14.52 € | | | B0324.108010036 | reamed hole with slot | with transverse bore | steel | 25 | 80 | 10H7 | 19 | M6 | 2,5 | 17,5 | 7,5 | 13 | 37,5 | 3 | 11,4 | | | 14.52 € | | | B0324.108012046 | reamed hole with slot | with transverse bore | steel | 25 | 80 | 12H7 | 19 | M6 | 2,5 | 17,5 | 7,5 | 13 | 37,5 | 4 | 13,8 | | | 14.52 € | | | B0324.210010036 | reamed hole with slot | with transverse bore | steel | 28 | 100 | 10H7 | 19 | M6 | 3 | 20 | 7,5 | 13 | 44 | 3 | 11,4 | | | 16.87 € | | | B0324.210012046 | reamed hole with slot | with transverse bore | steel | 28 | 100 | 12H7 | 19 | M6 | 3 | 20 | 7,5 | 13 | 44 | 4 | 13,8 | | | 16.87 € | | | B0324.312512046 | reamed hole with slot | with transverse bore | steel | 35 | 125 | 12H7 | 25 | M6 | 4 | 23,5 | 7,5 | 18,5 | 53 | 4 | 13,8 | | | 21.09 € | | | B0324.312514056 | reamed hole with slot | with transverse bore | steel | 35 | 125 | 14H7 | 25 | M6 | 4 | 23,5 | 7,5 | 18,5 | 53 | 5 | 16,3 | | | 21.09 € | | | B0324.312516056 | reamed hole with slot | with transverse bore | steel | 35 | 125 | 16H7 | 25 | M6 | 4 | 23,5 | 7,5 | 18,5 | 53 | 5 | 18,3 | | | 21.09 € | | | B0324.416014056 | reamed hole with slot | with transverse bore | steel | 45 | 160 | 14H7 | 25 | M6 | 5,6 | 28 | 7,5 | 18,5 | 64,5 | 5 | 16,3 | | | 23.27 € | | | B0324.416016056 | reamed hole with slot | with transverse bore | steel | 45 | 160 | 16H7 | 25 | M6 | 5,6 | 28 | 7,5 | 18,5 | 64,5 | 5 | 18,3 | | | 23.27 € | | | B0324.0108008 | reamed hole | without transverse hole | stainless steel | 25 | 80 | 8H7 | 19 | - | 2,5 | 17,5 | - | 13 | 37,5 | - | - | | | 12.75 € | | | B0324.0108010 | reamed hole | without transverse hole | stainless steel | 25 | 80 | 10H7 | 19 | - | 2,5 | 17,5 | - | 13 | 37,5 | - | - | | | 12.75 € | | | B0324.0108012 | reamed hole | without transverse hole | stainless steel | 25 | 80 | 12H7 | 19 | - | 2,5 | 17,5 | - | 13 | 37,5 | - | - | | | 12.75 € | | | B0324.0210010 | reamed hole | without transverse hole | stainless steel | 28 | 100 | 10H7 | 19 | - | 3 | 20 | - | 13 | 44 | - | - | | | 16.29 € | | | B0324.0210012 | reamed hole | without transverse hole | stainless steel | 28 | 100 | 12H7 | 19 | - | 3 | 20 | - | 13 | 44 | - | - | | | 16.29 € | | | B0324.0312512 | reamed hole | without transverse hole | stainless steel | 35 | 125 | 12H7 | 25 | - | 4 | 23,5 | - | 18,5 | 53 | - | - | | | 22.68 € | | | B0324.0312514 | reamed hole | without transverse hole | stainless steel | 35 | 125 | 14H7 | 25 | - | 4 | 23,5 | - | 18,5 | 53 | - | - | | | 22.68 € | | | B0324.0312516 | reamed hole | without transverse hole | stainless steel | 35 | 125 | 16H7 | 25 | - | 4 | 23,5 | - | 18,5 | 53 | - | - | | | 22.68 € | | | B0324.0416014 | reamed hole | without transverse hole | stainless steel | 45 | 160 | 14H7 | 25 | - | 5,6 | 28 | - | 18,5 | 64,5 | - | - | | | 25.88 € | | | B0324.0416016 | reamed hole | without transverse hole | stainless steel | 45 | 160 | 16H7 | 25 | - | 5,6 | 28 | - | 18,5 | 64,5 | - | - | | | 25.88 € | | | B0324.010800802 | reamed hole with slot | without transverse hole | stainless steel | 25 | 80 | 8H7 | 19 | - | 2,5 | 17,5 | - | 13 | 37,5 | 2 | 9 | | | 15.66 € | | | B0324.010801003 | reamed hole with slot | without transverse hole | stainless steel | 25 | 80 | 10H7 | 19 | - | 2,5 | 17,5 | - | 13 | 37,5 | 3 | 11,4 | | | 15.66 € | | | B0324.010801204 | reamed hole with slot | without transverse hole | stainless steel | 25 | 80 | 12H7 | 19 | - | 2,5 | 17,5 | - | 13 | 37,5 | 4 | 13,8 | | | 15.66 € | | | B0324.021001003 | reamed hole with slot | without transverse hole | stainless steel | 28 | 100 | 10H7 | 19 | - | 3 | 20 | - | 13 | 44 | 3 | 11,4 | | | 18.92 € | | | B0324.021001204 | reamed hole with slot | without transverse hole | stainless steel | 28 | 100 | 12H7 | 19 | - | 3 | 20 | - | 13 | 44 | 4 | 13,8 | | | 18.92 € | | | B0324.031251204 | reamed hole with slot | without transverse hole | stainless steel | 35 | 125 | 12H7 | 25 | - | 4 | 23,5 | - | 18,5 | 53 | 4 | 13,8 | | | 24.85 € | | | B0324.031251405 | reamed hole with slot | without transverse hole | stainless steel | 35 | 125 | 14H7 | 25 | - | 4 | 23,5 | - | 18,5 | 53 | 5 | 16,3 | | | 24.85 € | | | B0324.031251605 | reamed hole with slot | without transverse hole | stainless steel | 35 | 125 | 16H7 | 25 | - | 4 | 23,5 | - | 18,5 | 53 | 5 | 18,3 | | | 24.85 € | | | B0324.041601405 | reamed hole with slot | without transverse hole | stainless steel | 45 | 160 | 14H7 | 25 | - | 5,6 | 28 | - | 18,5 | 64,5 | 5 | 16,3 | | | 27.87 € | | | B0324.041601605 | reamed hole with slot | without transverse hole | stainless steel | 45 | 160 | 16H7 | 25 | - | 5,6 | 28 | - | 18,5 | 64,5 | 5 | 18,3 | | | 27.87 € | | | B0324.01080086 | reamed hole | with transverse bore | stainless steel | 25 | 80 | 8H7 | 19 | M6 | 2,5 | 17,5 | 7,5 | 13 | 37,5 | - | - | | | 16.58 € | | | B0324.01080106 | reamed hole | with transverse bore | stainless steel | 25 | 80 | 10H7 | 19 | M6 | 2,5 | 17,5 | 7,5 | 13 | 37,5 | - | - | | | 16.58 € | | | B0324.01080126 | reamed hole | with transverse bore | stainless steel | 25 | 80 | 12H7 | 19 | M6 | 2,5 | 17,5 | 7,5 | 13 | 37,5 | - | - | | | 16.58 € | | | B0324.02100106 | reamed hole | with transverse bore | stainless steel | 28 | 100 | 10H7 | 19 | M6 | 3 | 20 | 7,5 | 13 | 44 | - | - | | | 17.78 € | | | B0324.02100126 | reamed hole | with transverse bore | stainless steel | 28 | 100 | 12H7 | 19 | M6 | 3 | 20 | 7,5 | 13 | 44 | - | - | | | 17.78 € | | | B0324.03125126 | reamed hole | with transverse bore | stainless steel | 35 | 125 | 12H7 | 25 | M6 | 4 | 23,5 | 7,5 | 18,5 | 53 | - | - | | | 25.87 € | | | B0324.03125146 | reamed hole | with transverse bore | stainless steel | 35 | 125 | 14H7 | 25 | M6 | 4 | 23,5 | 7,5 | 18,5 | 53 | - | - | | | 25.87 € | | | B0324.03125166 | reamed hole | with transverse bore | stainless steel | 35 | 125 | 16H7 | 25 | M6 | 4 | 23,5 | 7,5 | 18,5 | 53 | - | - | | | 25.87 € | | | B0324.04160146 | reamed hole | with transverse bore | stainless steel | 45 | 160 | 14H7 | 25 | M6 | 5,6 | 28 | 7,5 | 18,5 | 64,5 | - | - | | | 28.86 € | | | B0324.04160166 | reamed hole | with transverse bore | stainless steel | 45 | 160 | 16H7 | 25 | M6 | 5,6 | 28 | 7,5 | 18,5 | 64,5 | - | - | | | 28.86 € | | | B0324.0108008026 | reamed hole with slot | with transverse bore | stainless steel | 25 | 80 | 8H7 | 19 | M6 | 2,5 | 17,5 | 7,5 | 13 | 37,5 | 2 | 9 | | | 20.34 € | | | B0324.0108010036 | reamed hole with slot | with transverse bore | stainless steel | 25 | 80 | 10H7 | 19 | M6 | 2,5 | 17,5 | 7,5 | 13 | 37,5 | 3 | 11,4 | | | 20.34 € | | | B0324.0108012046 | reamed hole with slot | with transverse bore | stainless steel | 25 | 80 | 12H7 | 19 | M6 | 2,5 | 17,5 | 7,5 | 13 | 37,5 | 4 | 13,8 | | | 20.34 € | | | B0324.0210010036 | reamed hole with slot | with transverse bore | stainless steel | 28 | 100 | 10H7 | 19 | M6 | 3 | 20 | 7,5 | 13 | 44 | 3 | 11,4 | | | 18.55 € | | | B0324.0210012046 | reamed hole with slot | with transverse bore | stainless steel | 28 | 100 | 12H7 | 19 | M6 | 3 | 20 | 7,5 | 13 | 44 | 4 | 13,8 | | | 23.62 € | | | B0324.0312512046 | reamed hole with slot | with transverse bore | stainless steel | 35 | 125 | 12H7 | 25 | M6 | 4 | 23,5 | 7,5 | 18,5 | 53 | 4 | 13,8 | | | 29.53 € | | | B0324.0312514056 | reamed hole with slot | with transverse bore | stainless steel | 35 | 125 | 14H7 | 25 | M6 | 4 | 23,5 | 7,5 | 18,5 | 53 | 5 | 16,3 | | | 29.53 € | | | B0324.0312516056 | reamed hole with slot | with transverse bore | stainless steel | 35 | 125 | 16H7 | 25 | M6 | 4 | 23,5 | 7,5 | 18,5 | 53 | 5 | 18,3 | | | 29.53 € | | | B0324.0416014056 | reamed hole with slot | with transverse bore | stainless steel | 45 | 160 | 14H7 | 25 | M6 | 5,6 | 28 | 7,5 | 18,5 | 64,5 | 5 | 16,3 | | | 32.58 € | | | B0324.0416016056 | reamed hole with slot | with transverse bore | stainless steel | 45 | 160 | 16H7 | 25 | M6 | 5,6 | 28 | 7,5 | 18,5 | 64,5 | 5 | 18,3 | | | 32.58 € | |
