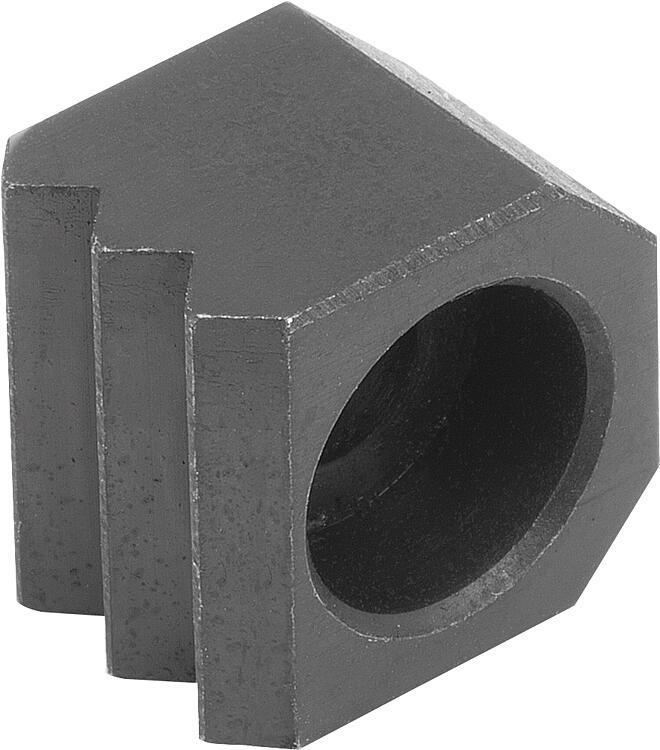

B0586_B[-de-] Grippers, Werkzeugstahl, viereckig mit Senkbohrung Form B |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Grippers and inserts are perfect for use in clamping arms, gripper systems, clamping fixtures, clamping jaws and jaw plates. Grippers can be used to transfer the highest torques and above-average clamping forces, even with hard materials and surface irregularities.Material:Tool steel.Version:Hardened, black oxidised.Drawing reference: |
Order No.
| Form | Version 1 | B | H | H1 | D | D1 | for
screws
| Serration | X | CAD | Acc. | Price | Order |
|---|
| B0586.12062 | B | wedge-shaped | 12 | 6 | 4,06 | 8 | 4,5 | M4 | fine | 2,3x45° |  | | 15.61 € | | | B0586.12102 | B | wedge-shaped | 12 | 10 | 4,06 | 8 | 4,5 | M4 | fine | 2,3x45° | | | 17.03 € | | | B0586.12122 | B | wedge-shaped | 12 | 12 | 4,06 | 8 | 4,5 | M4 | fine | 2,3x45° | | | 18.56 € | | | B0586.16062 | B | wedge-shaped | 16 | 6 | 4,2 | 11 | 6,6 | M6 | fine | 3,2x45° | | | 19.99 € | | | B0586.16102 | B | wedge-shaped | 16 | 10 | 4,2 | 11 | 6,6 | M6 | fine | 3,2x45° | | | 21.79 € | | | B0586.16122 | B | wedge-shaped | 16 | 12 | 4,2 | 11 | 6,6 | M6 | fine | 3,2x45° | | | 23.75 € | | | B0586.20062 | B | wedge-shaped | 20 | 6 | 5,08 | 15 | 9 | M8 | fine | 3,2x45° | | | 25.91 € | | | B0586.20102 | B | wedge-shaped | 20 | 10 | 5,08 | 15 | 9 | M8 | fine | 3,2x45° | | | 28.23 € | | | B0586.20122 | B | wedge-shaped | 20 | 12 | 5,08 | 15 | 9 | M8 | fine | 3,2x45° | | | 29.64 € | | | B0586.25102 | B | wedge-shaped | 25 | 10 | 6,6 | 18 | 11 | M10 | fine | 3,2x45° | | | 31.56 € | | | B0586.25122 | B | wedge-shaped | 25 | 12 | 6,6 | 18 | 11 | M10 | fine | 3,2x45° | | | 33.15 € | |
