B0252

Tension levers with external thread, 0 degrees

go back

Products
- Product overview
  - Clamping levers, tension levers, cam levers
    - Tension lever
      - Tension levers external thread

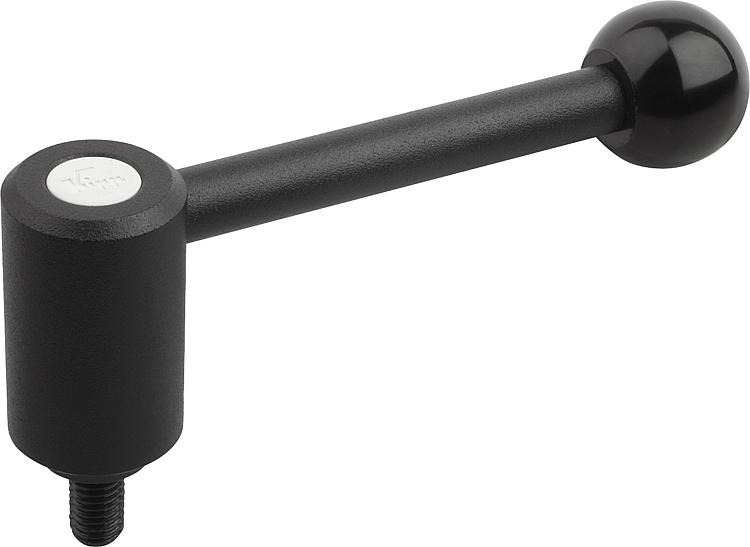

        Tension levers with external thread, 0 degrees

Item description/product images

DescriptionMaterial:Steel parts grade 5.8.
Ball knob black plastic.Version:Powder-coated with fine texture, black.On request:Other threads, screw lengths and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.Drawing reference:

1) flat point DIN EN ISO 4753

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0252 Tension levers with external thread, 0 degrees

138 kB

Drawings

Item selection/filter

Order No.	Form	X	L	A=Handle length	D	D1	D2	D3	H	H1	H2	H4	No. of teeth	Price
B0252.1082X15	0°	M8	15	92	16	24	25	10	44,5	4,5	37	49,5	22	14.66 €
B0252.1082X20	0°	M8	20	92	16	24	25	10	44,5	4,5	37	49,5	22	14.66 €
B0252.1082X25	0°	M8	25	92	16	24	25	10	44,5	4,5	37	49,5	22	14.66 €
B0252.1082X30	0°	M8	30	92	16	24	25	10	44,5	4,5	37	49,5	22	14.66 €
B0252.1082X40	0°	M8	40	92	16	24	25	10	44,5	4,5	37	49,5	22	15.04 €
B0252.1082X50	0°	M8	50	92	16	24	25	10	44,5	4,5	37	49,5	22	15.04 €
B0252.1082X60	0°	M8	60	92	16	24	25	10	44,5	4,5	37	49,5	22	15.04 €
B0252.1102X15	0°	M10	15	92	16	24	25	10	44,5	4,5	37	49,5	22	14.66 €
B0252.1102X20	0°	M10	20	92	16	24	25	10	44,5	4,5	37	49,5	22	14.66 €
B0252.1102X25	0°	M10	25	92	16	24	25	10	44,5	4,5	37	49,5	22	14.66 €
B0252.1102X30	0°	M10	30	92	16	24	25	10	44,5	4,5	37	49,5	22	14.66 €
B0252.1102X40	0°	M10	40	92	16	24	25	10	44,5	4,5	37	49,5	22	15.04 €
B0252.1102X50	0°	M10	50	92	16	24	25	10	44,5	4,5	37	49,5	22	15.04 €
B0252.1102X60	0°	M10	60	92	16	24	25	10	44,5	4,5	37	49,5	22	15.04 €
B0252.1122X15	0°	M12	15	92	16	24	25	10	44,5	4,5	37	49,5	22	14.66 €
B0252.1122X20	0°	M12	20	92	16	24	25	10	44,5	4,5	37	49,5	22	14.66 €
B0252.1122X25	0°	M12	25	92	16	24	25	10	44,5	4,5	37	49,5	22	14.66 €
B0252.1122X30	0°	M12	30	92	16	24	25	10	44,5	4,5	37	49,5	22	14.66 €
B0252.1122X40	0°	M12	40	92	16	24	25	10	44,5	4,5	37	49,5	22	15.04 €
B0252.1122X50	0°	M12	50	92	16	24	25	10	44,5	4,5	37	49,5	22	15.04 €
B0252.1122X60	0°	M12	60	92	16	24	25	10	44,5	4,5	37	49,5	22	15.04 €
B0252.2122X20	0°	M12	20	111	19	28	32	12	51,5	5,5	42	57,5	24	17.93 €
B0252.2122X25	0°	M12	25	111	19	28	32	12	51,5	5,5	42	57,5	24	17.93 €
B0252.2122X30	0°	M12	30	111	19	28	32	12	51,5	5,5	42	57,5	24	17.93 €
B0252.2122X40	0°	M12	40	111	19	28	32	12	51,5	5,5	42	57,5	24	18.67 €
B0252.2122X50	0°	M12	50	111	19	28	32	12	51,5	5,5	42	57,5	24	18.67 €
B0252.2122X60	0°	M12	60	111	19	28	32	12	51,5	5,5	42	57,5	24	18.67 €
B0252.3122X20	0°	M12	20	134,5	23	33	32	13	58	6	47	65	26	21.72 €
B0252.3122X25	0°	M12	25	134,5	23	33	32	13	58	6	47	65	26	21.72 €
B0252.3122X30	0°	M12	30	134,5	23	33	32	13	58	6	47	65	26	21.72 €
B0252.3122X40	0°	M12	40	134,5	23	33	32	13	58	6	47	65	26	22.36 €
B0252.3122X50	0°	M12	50	134,5	23	33	32	13	58	6	47	65	26	22.36 €
B0252.3122X60	0°	M12	60	134,5	23	33	32	13	58	6	47	65	26	22.36 €
B0252.3122X70	0°	M12	70	134,5	23	33	32	13	58	6	47	65	26	23.15 €
B0252.3122X80	0°	M12	80	134,5	23	33	32	13	58	6	47	65	26	23.15 €
B0252.3122X90	0°	M12	90	134,5	23	33	32	13	58	6	47	65	26	23.15 €
B0252.3162X20	0°	M16	20	134,5	23	33	32	13	58	6	47	65	26	21.72 €
B0252.3162X25	0°	M16	25	134,5	23	33	32	13	58	6	47	65	26	21.72 €
B0252.3162X30	0°	M16	30	134,5	23	33	32	13	58	6	47	65	26	21.72 €
B0252.3162X40	0°	M16	40	134,5	23	33	32	13	58	6	47	65	26	22.36 €
B0252.3162X50	0°	M16	50	134,5	23	33	32	13	58	6	47	65	26	22.36 €
B0252.3162X60	0°	M16	60	134,5	23	33	32	13	58	6	47	65	26	22.36 €
B0252.3162X70	0°	M16	70	134,5	23	33	32	13	58	6	47	65	26	23.15 €
B0252.3162X80	0°	M16	80	134,5	23	33	32	13	58	6	47	65	26	23.15 €
B0252.3162X90	0°	M16	90	134,5	23	33	32	13	58	6	47	65	26	23.15 €
B0252.4162X30	0°	M16	30	134	30	41	32	13	68,5	7,5	56,5	76,5	36	25.42 €
B0252.4162X40	0°	M16	40	134	30	41	32	13	68,5	7,5	56,5	76,5	36	26.38 €
B0252.4162X50	0°	M16	50	134	30	41	32	13	68,5	7,5	56,5	76,5	36	26.38 €
B0252.4162X60	0°	M16	60	134	30	41	32	13	68,5	7,5	56,5	76,5	36	26.38 €
B0252.4162X70	0°	M16	70	134	30	41	32	13	68,5	7,5	56,5	76,5	36	27.39 €
B0252.4162X80	0°	M16	80	134	30	41	32	13	68,5	7,5	56,5	76,5	36	27.39 €
B0252.4162X90	0°	M16	90	134	30	41	32	13	68,5	7,5	56,5	76,5	36	27.39 €
B0252.4202X30	0°	M20	30	134	30	41	32	13	68,5	7,5	56,5	76,5	36	25.42 €
B0252.4202X40	0°	M20	40	134	30	41	32	13	68,5	7,5	56,5	76,5	36	26.38 €
B0252.4202X50	0°	M20	50	134	30	41	32	13	68,5	7,5	56,5	76,5	36	26.38 €
B0252.4202X60	0°	M20	60	134	30	41	32	13	68,5	7,5	56,5	76,5	36	26.38 €
B0252.4202X70	0°	M20	70	134	30	41	32	13	68,5	7,5	56,5	76,5	36	27.39 €
B0252.4202X80	0°	M20	80	134	30	41	32	13	68,5	7,5	56,5	76,5	36	27.39 €
B0252.4202X90	0°	M20	90	134	30	41	32	13	68,5	7,5	56,5	76,5	36	27.39 €
B0252.4242X30	0°	M24	30	134	30	41	32	13	68,5	7,5	56,5	76,5	36	26.80 €
B0252.4242X40	0°	M24	40	134	30	41	32	13	68,5	7,5	56,5	76,5	36	27.92 €
B0252.4242X50	0°	M24	50	134	30	41	32	13	68,5	7,5	56,5	76,5	36	27.92 €
B0252.4242X60	0°	M24	60	134	30	41	32	13	68,5	7,5	56,5	76,5	36	27.92 €
B0252.4242X70	0°	M24	70	134	30	41	32	13	68,5	7,5	56,5	76,5	36	28.76 €
B0252.4242X80	0°	M24	80	134	30	41	32	13	68,5	7,5	56,5	76,5	36	28.76 €
B0252.4242X90	0°	M24	90	134	30	41	32	13	68,5	7,5	56,5	76,5	36	28.76 €
