DescriptionMaterial:Steel or stainless steel A2.Version:Steel polished.

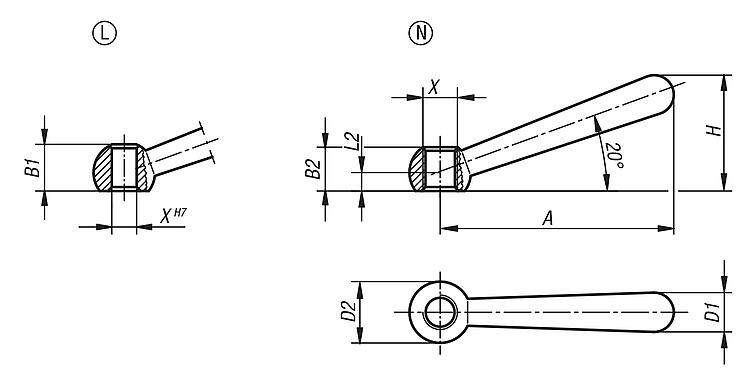

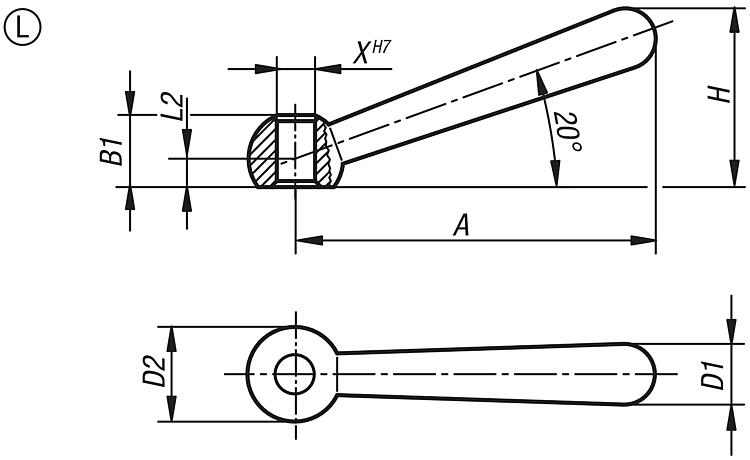

Stainless steel 1.4301 abrasive blasted.Note:To fix the lever to another element, gluing is often more cost-effective than pinning.Drawing reference:Form L: with hole

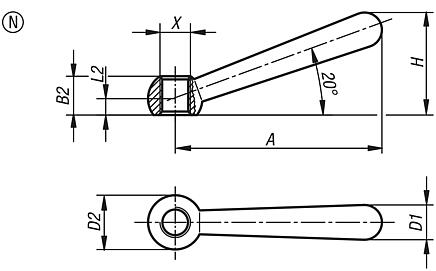

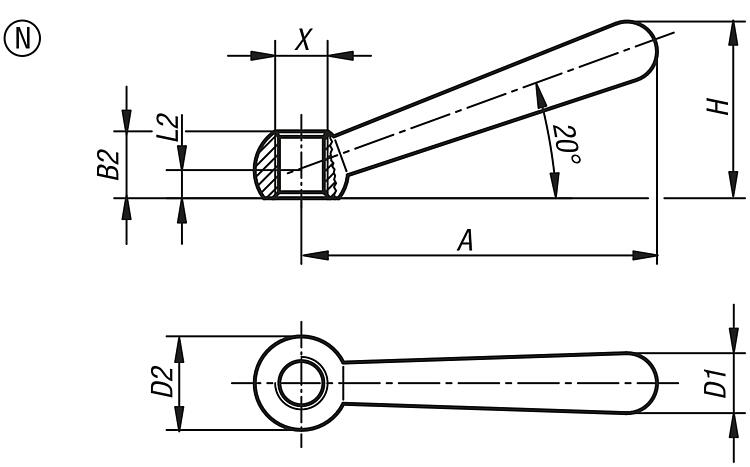

Form N: with internal thread
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
| Order No. | Form | Main
material | X | A=Handle length | B1 | D1 | D2
ball | H | L2 | CAD | Acc. | Price | Order |
|---|
| B0257.106 | L | steel | 6 | 48 | 9,5 | 8 | 12 | 24 | 4 |  | | 2.94 € | | | B0257.108 | L | steel | 8 | 60 | 12 | 10 | 16 | 30,5 | 5 | | | 3.37 € | | | B0257.110 | L | steel | 10 | 76 | 14,5 | 13 | 20 | 38 | 6 | | | 4.36 € | | | B0257.112 | L | steel | 12 | 95 | 18,5 | 16 | 25 | 47 | 7,5 | | | 6.10 € | | | B0257.116 | L | steel | 16 | 119 | 24 | 20 | 32 | 59,5 | 10 | | | 12.00 € | | | B0257.120 | L | steel | 20 | 152 | 30 | 25 | 40 | 75,5 | 12,5 | | | 20.75 € | | | B0257.1106 | L | stainless steel A2 | 6 | 48 | 9,5 | 8 | 12 | 24 | 4 | | | 4.89 € | | | B0257.1108 | L | stainless steel A2 | 8 | 60 | 12 | 10 | 16 | 30,5 | 5 | | | 6.99 € | | | B0257.1110 | L | stainless steel A2 | 10 | 76 | 14,5 | 13 | 20 | 38 | 6 | | | 9.37 € | | | B0257.1112 | L | stainless steel A2 | 12 | 95 | 18,5 | 16 | 25 | 47 | 7,5 | | | 12.97 € | | | B0257.1116 | L | stainless steel A2 | 16 | 119 | 24 | 20 | 32 | 59,5 | 10 | | | 17.28 € | | | B0257.1120 | L | stainless steel A2 | 20 | 152 | 30 | 25 | 40 | 75,5 | 12,5 | | | 24.61 € | |
|
| Order No. | Form | Main
material | X | A=Handle length | B2 | D1 | D2
ball | H | L2 | CAD | Acc. | Price | Order |
|---|
| B0257.206 | N | steel | M6 | 48 | 9,5 | 8 | 12 | 24 | 4 | | | 2.94 € | | | B0257.208 | N | steel | M8 | 60 | 12 | 10 | 16 | 30,5 | 5 | | | 3.37 € | | | B0257.210 | N | steel | M10 | 76 | 14,5 | 13 | 20 | 38 | 6 | | | 4.36 € | | | B0257.212 | N | steel | M12 | 95 | 18,5 | 16 | 25 | 47 | 7,5 | | | 6.10 € | | | B0257.216 | N | steel | M16 | 119 | 24 | 20 | 32 | 59,5 | 10 | | | 12.00 € | | | B0257.220 | N | steel | M20 | 152 | 30 | 25 | 40 | 75,5 | 12,5 | | | 20.75 € | | | B0257.1206 | N | stainless steel A2 | M6 | 48 | 9,5 | 8 | 12 | 24 | 4 | | | 5.93 € | | | B0257.1208 | N | stainless steel A2 | M8 | 60 | 12 | 10 | 16 | 30,5 | 5 | | | 7.42 € | | | B0257.1210 | N | stainless steel A2 | M10 | 76 | 14,5 | 13 | 20 | 38 | 6 | | | 10.09 € | | | B0257.1212 | N | stainless steel A2 | M12 | 95 | 18,5 | 16 | 25 | 47 | 7,5 | | | 14.06 € | | | B0257.1216 | N | stainless steel A2 | M16 | 119 | 24 | 20 | 32 | 59,5 | 10 | | | 20.25 € | | | B0257.1220 | N | stainless steel A2 | M20 | 152 | 30 | 25 | 40 | 75,5 | 12,5 | | | 26.97 € | |
|
