Tension levers flat, internal thread, stainless steel
B0253

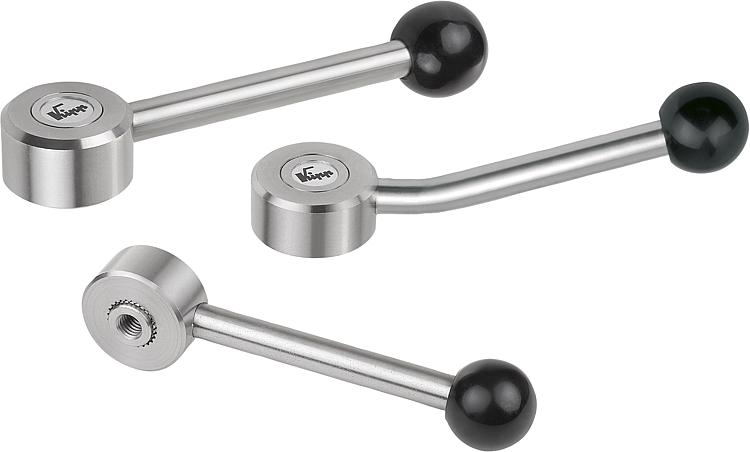

Tension levers flat, internal thread, stainless steel

go back

Item description/product images

Show/filter all items
DescriptionMaterial:

Steel parts stainless steel 1.4305.
Ball knob black plastic.

Version:Steel parts bright.On request:Other threads and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.
Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0253 Tension levers flat internal thread, stainless steel 233 kB

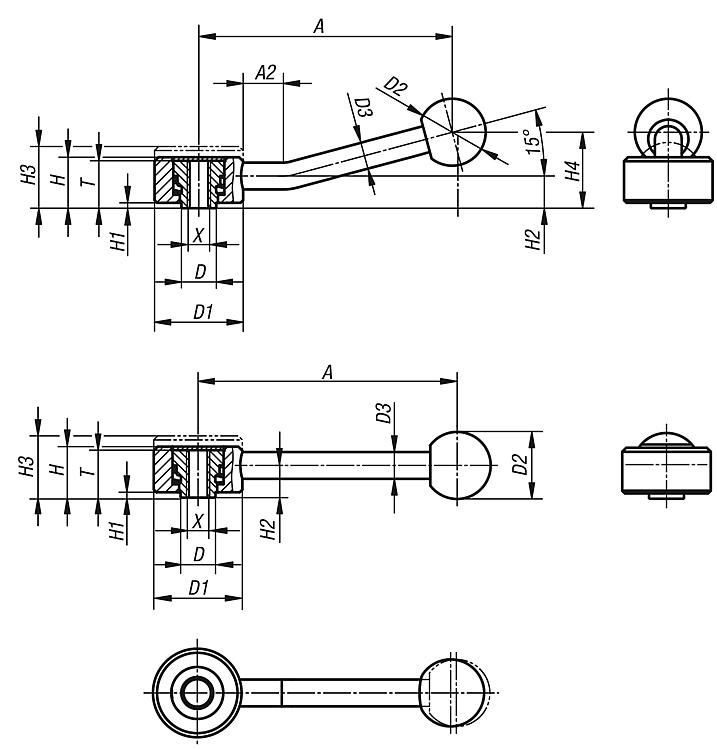

Drawings (total overview)

Tension levers flat, internal thread, stainless steel

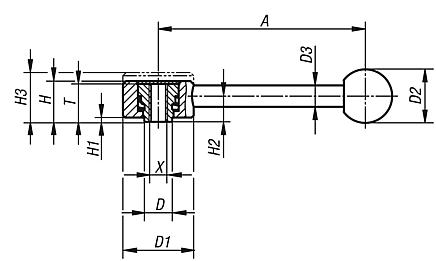

Tension levers flat internal thread, stainless steel, 0°

More information

Drawings

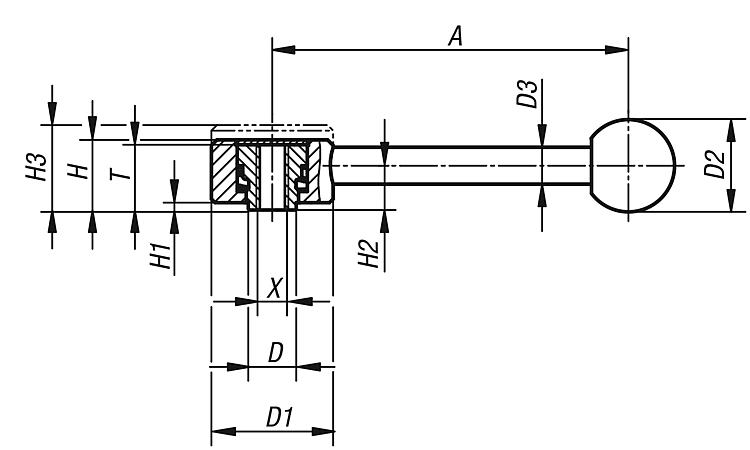

Tension levers flat internal thread, stainless steel, 0°

Item selection/filter

Order No.FormXTA=Handle lengthDD1D2D3HH1H2H3No. of
teeth
CADAcc.PriceOrder
B0253.1081M81810213,5332510192122326 24.56 €
B0253.2101M10211311941301222213,52630 30.32 €
B0253.2121M12211311941301222213,52630 30.32 €
B0253.3161M162714823453714282173336 35.76 €

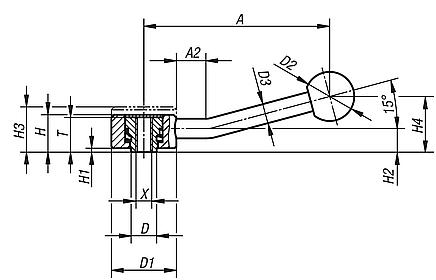

Tension levers flat internal thread, stainless steel, 15°

More information

Drawings

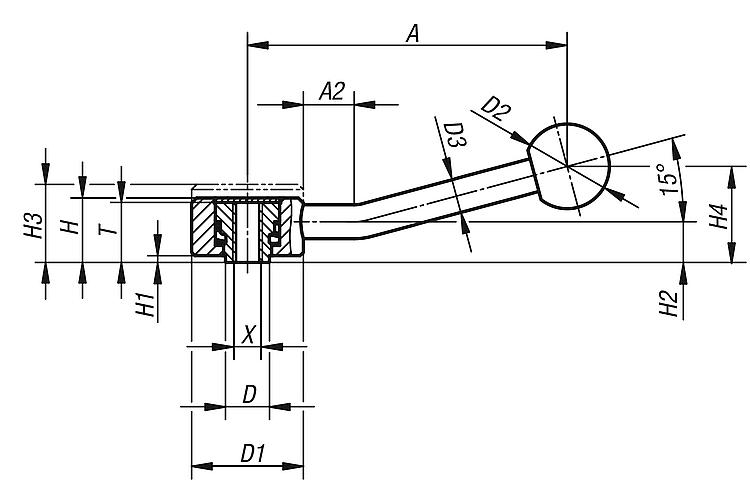

Tension levers flat internal thread, stainless steel, 15°

Item selection/filter

Order No.FormXTA=Handle lengthA2DD1D2D3HH1H2H3H4No. of
teeth
CADAcc.PriceOrder
B0253.108215°M8181001513,533251019212232926 25.80 €
B0253.210215°M1021127151941301222213,5263830 31.59 €
B0253.212215°M1221127151941301222213,5263830 31.59 €
B0253.316215°M1627145152345371428217334836 37.03 €
