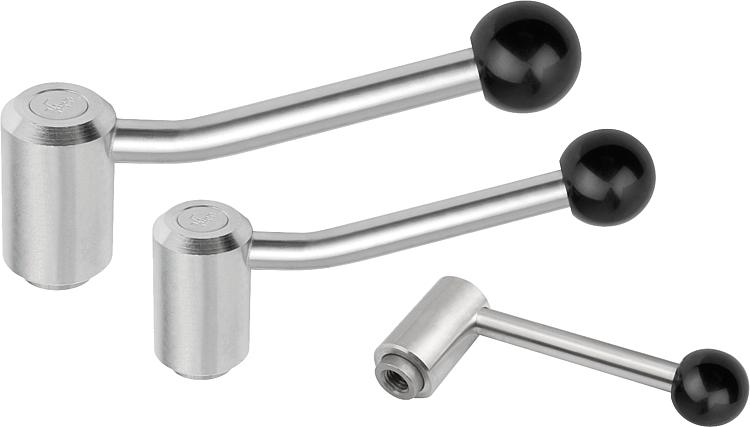

B0255Tension levers internal thread, stainless steel |
go back |
|
|
DescriptionMaterial:Steel parts stainless steel 1.4305.
Ball knob black plastic. Version:Stainless steel parts bright.
Ball knob polished.On request:Other threads and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
Tension Levers in stainless steel with internal thread, 0 degrees |
More information |
| Order No. | Form | X | T | A=Handle length | D | D1 | D2 | D3 | H | H1 | H2 | H4 | No. of
teeth
| CAD | Acc. | Price | Order |
|---|
| B0255.1082 | 0° | M8 | 14 | 92 | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | 49,5 | 22 |  | | 24.46 € | | | B0255.1102 | 0° | M10 | 14 | 92 | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | 49,5 | 22 | | | 24.46 € | | | B0255.2102 | 0° | M10 | 17 | 111 | 19 | 28 | 32 | 12 | 51,5 | 5,5 | 42 | 57,5 | 24 | | | 28.84 € | | | B0255.2122 | 0° | M12 | 17 | 111 | 19 | 28 | 32 | 12 | 51,5 | 5,5 | 42 | 57,5 | 24 | | | 28.84 € | | | B0255.3122 | 0° | M12 | 23 | 134,5 | 23 | 33 | 32 | 13 | 58 | 6 | 47 | 65 | 26 | | | 39.86 € | | | B0255.3162 | 0° | M16 | 23 | 134,5 | 23 | 33 | 32 | 13 | 58 | 6 | 47 | 65 | 26 | | | 39.86 € | | | B0255.4162 | 0° | M16 | 27 | 134 | 30 | 41 | 32 | 13 | 68,5 | 7,5 | 56,5 | 76,5 | 36 | | | 46.93 € | | | B0255.4202 | 0° | M20 | 27 | 134 | 30 | 41 | 32 | 13 | 68,5 | 7,5 | 56,5 | 76,5 | 36 | | | 46.93 € | |
|
| Order No. | Form | X | T | A | A2 | D | D1 | D2 | D3 | H | H1 | H2 | H3 | H4 | No. of
teeth
| CAD | Acc. | Price | Order |
|---|
| B0255.1081 | 20° | M8 | 14 | 88 | 15 | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | 58,5 | 49,5 | 22 | | | 24.46 € | | | B0255.1101 | 20° | M10 | 14 | 88 | 15 | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | 58,5 | 49,5 | 22 | | | 24.46 € | | | B0255.2101 | 20° | M10 | 17 | 106 | 15 | 19 | 28 | 32 | 12 | 51,5 | 5,5 | 42 | 68,5 | 57,5 | 24 | | | 28.84 € | | | B0255.2121 | 20° | M12 | 17 | 106 | 15 | 19 | 28 | 32 | 12 | 51,5 | 5,5 | 42 | 68,5 | 57,5 | 24 | | | 28.84 € | | | B0255.3121 | 20° | M12 | 23 | 128,5 | 15 | 23 | 33 | 32 | 13 | 58 | 6 | 47 | 81 | 65 | 26 | | | 39.86 € | | | B0255.3161 | 20° | M16 | 23 | 128,5 | 15 | 23 | 33 | 32 | 13 | 58 | 6 | 47 | 81 | 65 | 26 | | | 39.86 € | | | B0255.4161 | 20° | M16 | 27 | 128,5 | 15 | 30 | 41 | 32 | 13 | 68,5 | 7,5 | 56,5 | 89,5 | 76,5 | 36 | | | 46.93 € | | | B0255.4201 | 20° | M20 | 27 | 128,5 | 15 | 30 | 41 | 32 | 13 | 68,5 | 7,5 | 56,5 | 89,5 | 76,5 | 36 | | | 46.93 € | |
|
