Tension levers, flat, internal thread

go back

Products
- Product overview
  - Clamping levers, tension levers, cam levers
    - Tension lever
      - Tension levers, flat, internal thread

Item description/product images

Show/filter all items

DescriptionMaterial:Steel parts grade 5.8.
Ball knob black plastic.Version:Black oxidised.On request:Other threads and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0249 Tension levers flat internal thread

221 kB

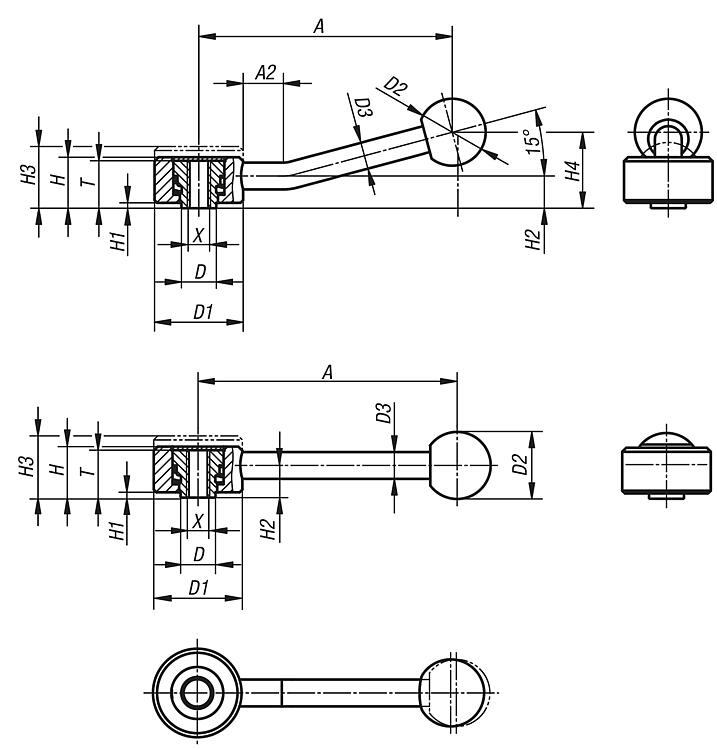

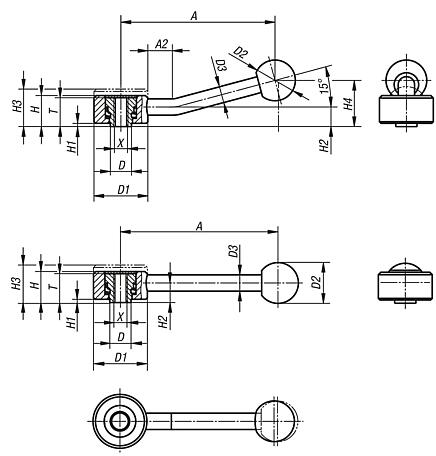

Drawings (total overview)

Tension levers, flat, with internal thread, 0°

More information

Drawings

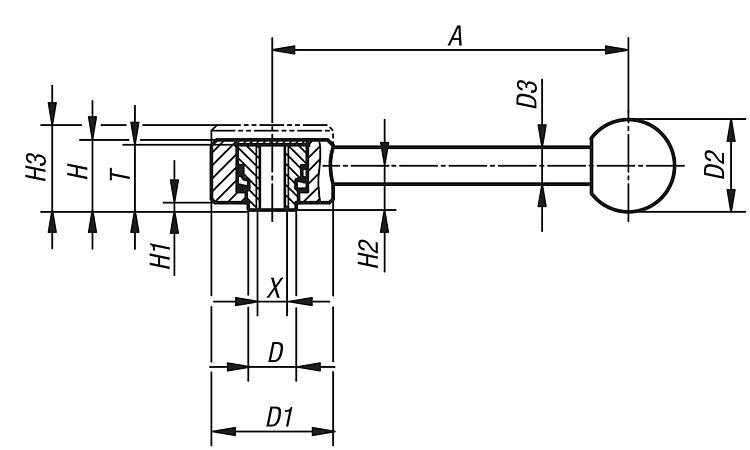

Tension levers, flat, with internal thread, 0°

Item selection/filter

Order No.	Form	X	T	A	D	D1	D2	D3	H	H1	H2	H3	No. of teeth	Price
B0249.1061	0°	M6	18	102	13,5	33	25	10	19	2	12	23	26	14.21 €
B0249.1081	0°	M8	18	102	13,5	33	25	10	19	2	12	23	26	14.21 €
B0249.2101	0°	M10	21	131	19	41	30	12	22	2	13,5	26	30	17.55 €
B0249.2121	0°	M12	21	131	19	41	30	12	22	2	13,5	26	30	17.55 €
B0249.3121	0°	M12	27	148	23	45	37	14	28	2	17	33	36	20.70 €
B0249.3161	0°	M16	27	148	23	45	37	14	28	2	17	33	36	20.70 €

Tension levers, flat, internal thread, 15°

More information

Drawings

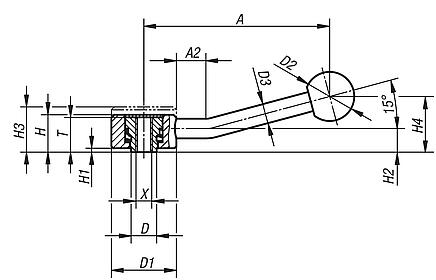

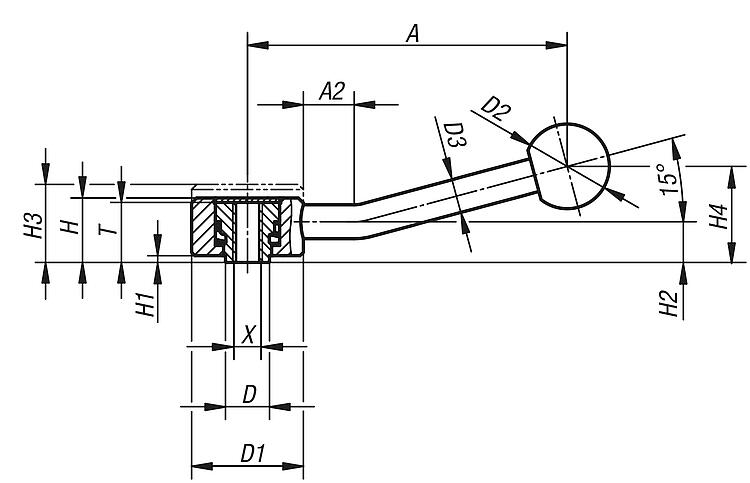

Tension levers, flat, internal thread, 15°

Item selection/filter

Order No.	Form	X	T	A	A2	D	D1	D2	D3	H	H1	H2	H3	H4	No. of teeth	Price
B0249.1062	15°	M6	18	100	15	13,5	33	25	10	19	2	12	23	29	26	16.01 €
B0249.1082	15°	M8	18	100	15	13,5	33	25	10	19	2	12	23	29	26	16.01 €
B0249.2102	15°	M10	21	127	15	19	41	30	12	22	2	13,5	26	38	30	19.55 €
B0249.2122	15°	M12	21	127	15	19	41	30	12	22	2	13,5	26	38	30	19.55 €
B0249.3122	15°	M12	27	145	15	23	45	37	14	28	2	17	33	48	36	22.80 €
B0249.3162	15°	M16	27	145	15	23	45	37	14	28	2	17	33	48	36	22.80 €
