Tension levers flat internal thread, stainless steel, 15°
B0253

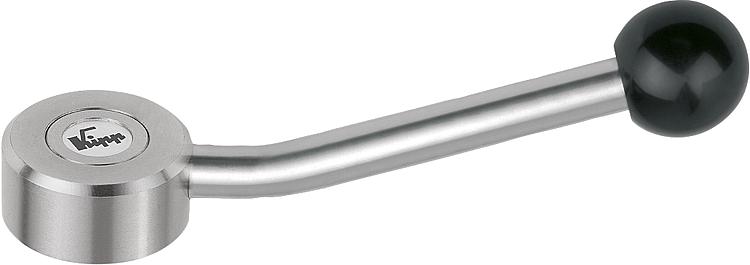

Tension levers flat internal thread, stainless steel, 15°

go back

Item description/product images

DescriptionMaterial:

Steel parts stainless steel 1.4305.
Ball knob black plastic.

Version:Steel parts bright.On request:Other threads and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.
Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0253 Tension levers flat internal thread, stainless steel, 15° 139 kB

Drawings

Tension levers flat internal thread, stainless steel, 15°

Item selection/filter

Order No.FormXTA=Handle lengthA2DD1D2D3HH1H2H3H4No. of
teeth
CADAcc.PriceOrder
B0253.108215°M8181001513,533251019212232926 25.80 €
B0253.210215°M1021127151941301222213,5263830 31.59 €
B0253.212215°M1221127151941301222213,5263830 31.59 €
B0253.316215°M1627145152345371428217334836 37.03 €
