Tension levers flat internal thread, stainless steel, 0°
B0253

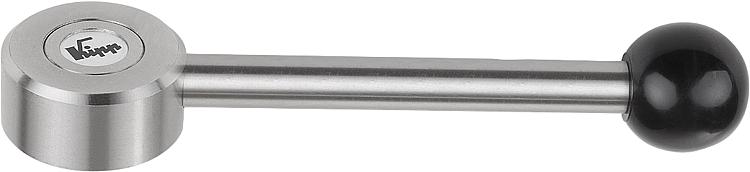

Tension levers flat internal thread, stainless steel, 0°

go back

Item description/product images

DescriptionMaterial:

Steel parts stainless steel 1.4305.
Ball knob black plastic.

Version:Steel parts bright.On request:Other threads and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.
Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0253 Tension levers flat internal thread, stainless steel, 0° 130 kB

Drawings

Tension levers flat internal thread, stainless steel, 0°

Item selection/filter

Order No.FormXTA=Handle lengthDD1D2D3HH1H2H3No. of
teeth
CADAcc.PriceOrder
B0253.1081M81810213,5332510192122326 24.56 €
B0253.2101M10211311941301222213,52630 30.32 €
B0253.2121M12211311941301222213,52630 30.32 €
B0253.3161M162714823453714282173336 35.76 €
