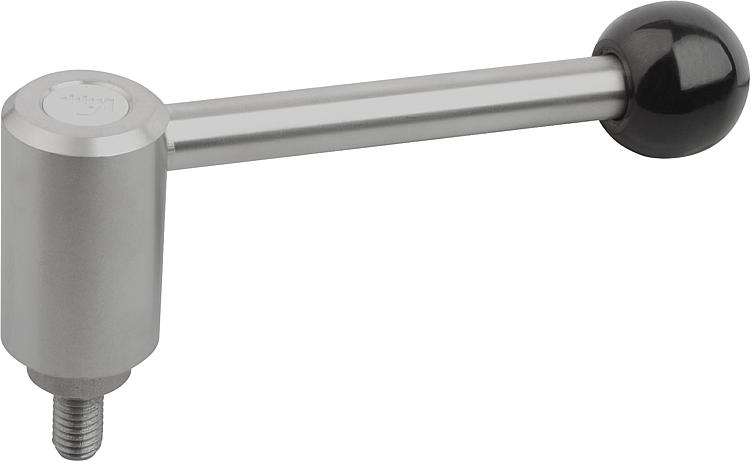

B0256Tension Levers in stainless steel with external thread, 0 degrees |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel parts stainless steel 1.4305.
Ball knob black plastic. Version:Stainless steel parts bright.
Ball knob polished.Note:Missing dimensions see tension levers with female thread.On request:Other threads, screw lengths and special versions.
Dimensions “H1” and “A” available in other lengths at extra charge.Drawing reference:1) flat point DIN EN ISO 4753 DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | X | L | A=Handle length | A2 | D | D1 | D2 | D3 | H | H1 | H2 | H3 | H4 | No. of
teeth
| CAD | Acc. | Price | Order |
|---|
| B0256.1082X15 | 0° | M8 | 15 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 |  | | 26.27 € | | | B0256.1082X20 | 0° | M8 | 20 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 26.27 € | | | B0256.1082X25 | 0° | M8 | 25 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 26.27 € | | | B0256.1082X30 | 0° | M8 | 30 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 26.27 € | | | B0256.1082X40 | 0° | M8 | 40 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 27.05 € | | | B0256.1082X50 | 0° | M8 | 50 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 27.05 € | | | B0256.1082X60 | 0° | M8 | 60 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 27.05 € | | | B0256.1102X15 | 0° | M10 | 15 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 26.27 € | | | B0256.1102X20 | 0° | M10 | 20 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 26.27 € | | | B0256.1102X25 | 0° | M10 | 25 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 26.27 € | | | B0256.1102X30 | 0° | M10 | 30 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 26.27 € | | | B0256.1102X40 | 0° | M10 | 40 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 27.05 € | | | B0256.1102X50 | 0° | M10 | 50 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 27.05 € | | | B0256.1102X60 | 0° | M10 | 60 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 27.05 € | | | B0256.1122X15 | 0° | M12 | 15 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 26.27 € | | | B0256.1122X20 | 0° | M12 | 20 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 26.27 € | | | B0256.1122X25 | 0° | M12 | 25 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 26.27 € | | | B0256.1122X30 | 0° | M12 | 30 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 26.27 € | | | B0256.1122X40 | 0° | M12 | 40 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 27.05 € | | | B0256.1122X50 | 0° | M12 | 50 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 27.05 € | | | B0256.1122X60 | 0° | M12 | 60 | 92 | - | 16 | 24 | 25 | 10 | 44,5 | 4,5 | 37 | - | 49,5 | 22 | | | 27.05 € | | | B0256.2122X20 | 0° | M12 | 20 | 111 | - | 19 | 28 | 32 | 12 | 51,5 | 5,5 | 42 | - | 57,5 | 24 | | | 32.24 € | | | B0256.2122X25 | 0° | M12 | 25 | 111 | - | 19 | 28 | 32 | 12 | 51,5 | 5,5 | 42 | - | 57,5 | 24 | | | 32.24 € | | | B0256.2122X30 | 0° | M12 | 30 | 111 | - | 19 | 28 | 32 | 12 | 51,5 | 5,5 | 42 | - | 57,5 | 24 | | | 32.24 € | | | B0256.2122X40 | 0° | M12 | 40 | 111 | - | 19 | 28 | 32 | 12 | 51,5 | 5,5 | 42 | - | 57,5 | 24 | | | 33.57 € | | | B0256.2122X50 | 0° | M12 | 50 | 111 | - | 19 | 28 | 32 | 12 | 51,5 | 5,5 | 42 | - | 57,5 | 24 | | | 33.57 € | | | B0256.2122X60 | 0° | M12 | 60 | 111 | - | 19 | 28 | 32 | 12 | 51,5 | 5,5 | 42 | - | 57,5 | 24 | | | 33.57 € | | | B0256.3122X20 | 0° | M12 | 20 | 134,5 | - | 23 | 33 | 32 | 13 | 58 | 6 | 47 | - | 65 | 26 | | | 42.24 € | | | B0256.3122X25 | 0° | M12 | 25 | 134,5 | - | 23 | 33 | 32 | 13 | 58 | 6 | 47 | - | 65 | 26 | | | 42.24 € | | | B0256.3122X30 | 0° | M12 | 30 | 134,5 | - | 23 | 33 | 32 | 13 | 58 | 6 | 47 | - | 65 | 26 | | | 42.24 € | | | B0256.3122X40 | 0° | M12 | 40 | 134,5 | - | 23 | 33 | 32 | 13 | 58 | 6 | 47 | - | 65 | 26 | | | 43.48 € | | | B0256.3122X50 | 0° | M12 | 50 | 134,5 | - | 23 | 33 | 32 | 13 | 58 | 6 | 47 | - | 65 | 26 | | | 43.48 € | | | B0256.3122X60 | 0° | M12 | 60 | 134,5 | - | 23 | 33 | 32 | 13 | 58 | 6 | 47 | - | 65 | 26 | | | 43.48 € | | | B0256.3122X70 | 0° | M12 | 70 | 134,5 | - | 23 | 33 | 32 | 13 | 58 | 6 | 47 | - | 65 | 26 | | | 45.03 € | | | B0256.3122X80 | 0° | M12 | 80 | 134,5 | - | 23 | 33 | 32 | 13 | 58 | 6 | 47 | - | 65 | 26 | | | 45.03 € | | | B0256.3122X90 | 0° | M12 | 90 | 134,5 | - | 23 | 33 | 32 | 13 | 58 | 6 | 47 | - | 65 | 26 | | | 45.03 € | | | B0256.3162X20 | 0° | M16 | 20 | 134,5 | - | 23 | 33 | 32 | 13 | 58 | 6 | 47 | - | 65 | 26 | | | 42.24 € | | | B0256.3162X25 | 0° | M16 | 25 | 134,5 | - | 23 | 33 | 32 | 13 | 58 | 6 | 47 | - | 65 | 26 | | | 42.24 € | | | B0256.3162X30 | 0° | M16 | 30 | 134,5 | - | 23 | 33 | 32 | 13 | 58 | 6 | 47 | - | 65 | 26 | | | 42.24 € | | | B0256.3162X40 | 0° | M16 | 40 | 134,5 | - | 23 | 33 | 32 | 13 | 58 | 6 | 47 | - | 65 | 26 | | | 43.48 € | | | B0256.3162X50 | 0° | M16 | 50 | 134,5 | - | 23 | 33 | 32 | 13 | 58 | 6 | 47 | - | 65 | 26 | | | 43.48 € | | | B0256.3162X60 | 0° | M16 | 60 | 134,5 | - | 23 | 33 | 32 | 13 | 58 | 6 | 47 | - | 65 | 26 | | | 43.48 € | | | B0256.3162X70 | 0° | M16 | 70 | 134,5 | - | 23 | 33 | 32 | 13 | 58 | 6 | 47 | - | 65 | 26 | | | 45.03 € | | | B0256.3162X80 | 0° | M16 | 80 | 134,5 | - | 23 | 33 | 32 | 13 | 58 | 6 | 47 | - | 65 | 26 | | | 45.03 € | | | B0256.3162X90 | 0° | M16 | 90 | 134,5 | - | 23 | 33 | 32 | 13 | 58 | 6 | 47 | - | 65 | 26 | | | 45.03 € | | | B0256.4162X30 | 0° | M16 | 30 | 134 | - | 30 | 41 | 32 | 13 | 68,5 | 7,5 | 56,5 | - | 76,5 | 36 | | | 49.41 € | | | B0256.4162X40 | 0° | M16 | 40 | 134 | - | 30 | 41 | 32 | 13 | 68,5 | 7,5 | 56,5 | - | 76,5 | 36 | | | 51.24 € | | | B0256.4162X50 | 0° | M16 | 50 | 134 | - | 30 | 41 | 32 | 13 | 68,5 | 7,5 | 56,5 | - | 76,5 | 36 | | | 51.24 € | | | B0256.4162X60 | 0° | M16 | 60 | 134 | - | 30 | 41 | 32 | 13 | 68,5 | 7,5 | 56,5 | - | 76,5 | 36 | | | 51.24 € | | | B0256.4162X70 | 0° | M16 | 70 | 134 | - | 30 | 41 | 32 | 13 | 68,5 | 7,5 | 56,5 | - | 76,5 | 36 | | | 53.25 € | | | B0256.4162X80 | 0° | M16 | 80 | 134 | - | 30 | 41 | 32 | 13 | 68,5 | 7,5 | 56,5 | - | 76,5 | 36 | | | 53.25 € | | | B0256.4162X90 | 0° | M16 | 90 | 134 | - | 30 | 41 | 32 | 13 | 68,5 | 7,5 | 56,5 | - | 76,5 | 36 | | | 53.25 € | | | B0256.4202X30 | 0° | M20 | 30 | 134 | - | 30 | 41 | 32 | 13 | 68,5 | 7,5 | 56,5 | - | 76,5 | 36 | | | 49.41 € | | | B0256.4202X40 | 0° | M20 | 40 | 134 | - | 30 | 41 | 32 | 13 | 68,5 | 7,5 | 56,5 | - | 76,5 | 36 | | | 51.24 € | | | B0256.4202X50 | 0° | M20 | 50 | 134 | - | 30 | 41 | 32 | 13 | 68,5 | 7,5 | 56,5 | - | 76,5 | 36 | | | 51.24 € | | | B0256.4202X60 | 0° | M20 | 60 | 134 | - | 30 | 41 | 32 | 13 | 68,5 | 7,5 | 56,5 | - | 76,5 | 36 | | | 51.24 € | | | B0256.4202X70 | 0° | M20 | 70 | 134 | - | 30 | 41 | 32 | 13 | 68,5 | 7,5 | 56,5 | - | 76,5 | 36 | | | 53.25 € | | | B0256.4202X80 | 0° | M20 | 80 | 134 | - | 30 | 41 | 32 | 13 | 68,5 | 7,5 | 56,5 | - | 76,5 | 36 | | | 53.25 € | | | B0256.4202X90 | 0° | M20 | 90 | 134 | - | 30 | 41 | 32 | 13 | 68,5 | 7,5 | 56,5 | - | 76,5 | 36 | | | 53.25 € | |
