B0304

T-grips, with external thread

go back

Products
- Product overview
  - Handles and knobs
    - wing grips, T-grips
      - T-grips

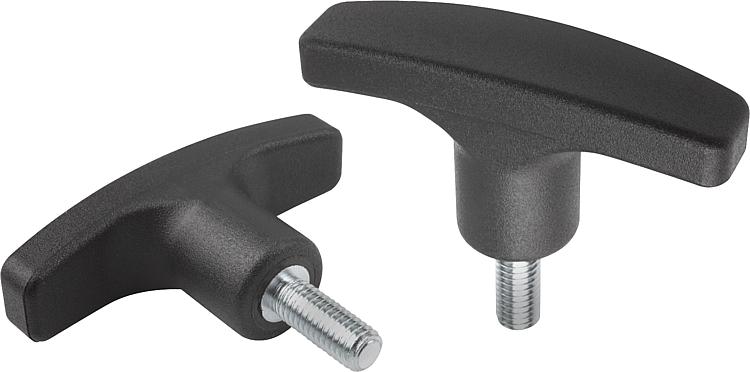

        T-grips, with external thread

Item description/product images

DescriptionMaterial, version:Glass-fibre reinforced thermoplastic, black
Threaded pin electro zinc-plated steel.On request:Grip colour red, yellow, green, blue, white or grey (min. quanitity 1000).Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0304 T-grips, with external thread

145 kB

Drawings

Item selection/filter

Order No.	Form	A	B	D	D3	H	H1	L	Price
B0304.24005X15	L	40	13	M5	13	30,5	20	15	0.73 €
B0304.25005X15	L	50	15	M5	14	24	16	15	1.27 €
B0304.25005X20	L	50	15	M5	14	24	16	20	1.27 €
B0304.26006X20	L	60	17	M6	16	31,5	23	20	1.44 €
B0304.26006X25	L	60	17	M6	16	31,5	23	25	1.44 €
B0304.27108X20	L	71	19,5	M8	20	36	19	20	1.90 €
B0304.27108X30	L	71	19,5	M8	20	36	19	30	2.12 €
B0304.27110X20	L	71	19,5	M10	20	36	19	20	2.30 €
B0304.27110X30	L	71	19,5	M10	20	36	19	30	2.42 €
B0304.28010X30	L	80	26	M10	26	39,5	26	30	2.81 €
B0304.28012X40	L	80	26	M12	26	39,5	26	40	3.35 €
