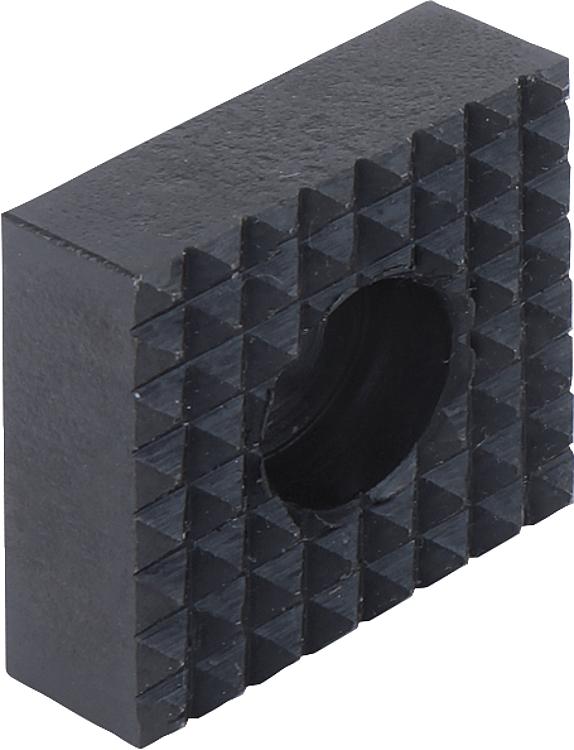

B0171Gripper pads, square, Form C |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Hardened tool steel or carbide.Version:Black oxidised.Note:Grippers and inserts are ideal for use in clamping arms, gripping systems, clamping fixtures, clamping jaws and self-aligning pads.
Grippers transfer very high torque values,even with hard materials and surface irregularities. Grippers guarantee above average holding forces at high cutting forces.
The serrated carbide tips are soldered in. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

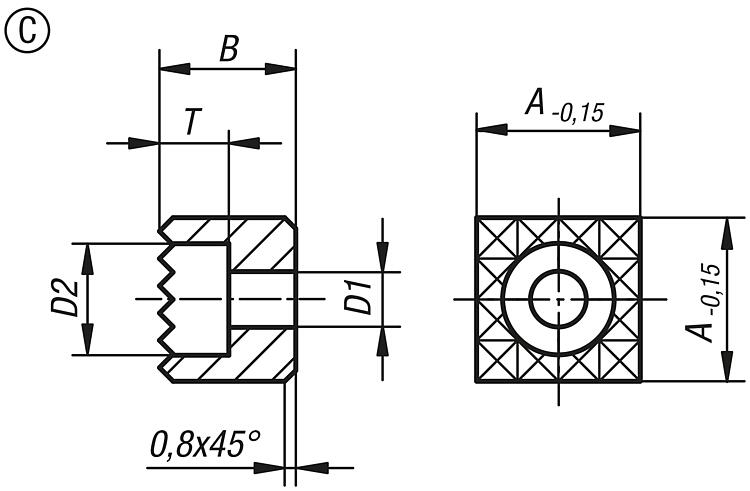

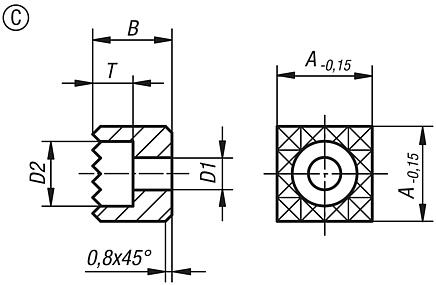

| Order No. | Form
| A | B | D1 | D2 | T | Serration | CAD | Acc. | Price | Order |
|---|
| B0171.1210048 | C | 12 | 10 | 4,5 | 8 | 5,6 | fine |  | | 19.63 € | | | B0171.1212048 | C | 12 | 12 | 4,5 | 8 | 5,6 | fine | | | 20.28 € | | | B0171.1610048 | C | 16 | 10 | 4,5 | 8 | 5,6 | fine | | | 23.27 € | | | B0171.1612048 | C | 16 | 12 | 4,5 | 8 | 5,6 | fine | | | 23.55 € | | | B0171.2010058 | C | 20 | 10 | 5,5 | 10 | 6,6 | fine | | | 27.18 € | | | B0171.2012058 | C | 20 | 12 | 5,5 | 10 | 6,6 | fine | | | 28.12 € | | | B0171.2510068 | C | 25 | 10 | 6,6 | 11 | 7,6 | fine | | | 37.71 € | | | B0171.2512068 | C | 25 | 12 | 6,6 | 11 | 7,6 | fine | | | 38.89 € | |
