Item description/product images |
|
|

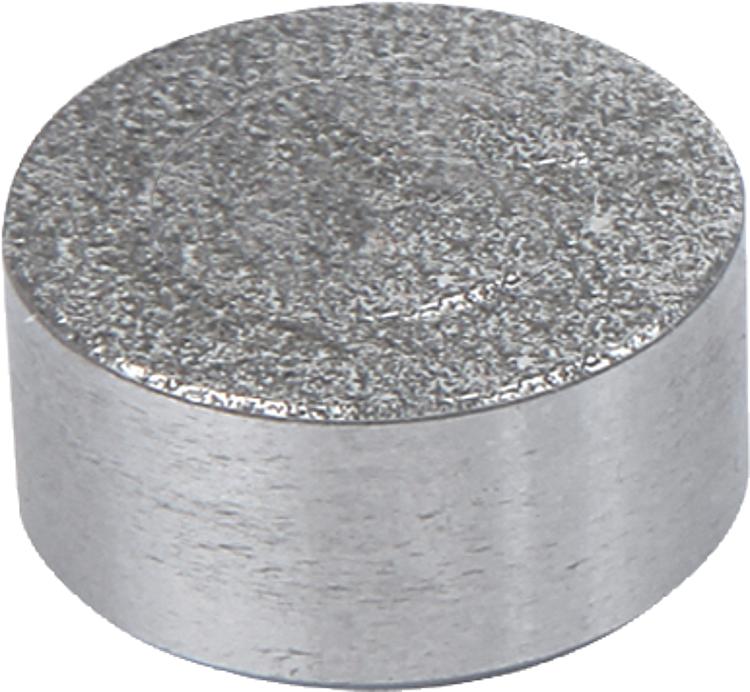

DescriptionMaterial, version:Stainless steel with diamond impregnated surface comparable with 100-grade abrasive grit.Note:Grippers and inserts are ideal for use in clamping arms, gripping systems, clamping fixtures, clamping jaws and self-aligning pads. The use of grippers allows the transfer of very high torque values and above average grip, even with hard materials and surface irregularities.
Form O: The abrasive diamond surface is bonded firmly to the base. It is ideally suited to supporting smooth or slippery applications with a minimum of clamping pressure. This allows the diamond particles to get a firm grip on a very small area with minimum damage to the surface.
The diamond surface offers excellent wear resistance.
Grippers and inserts can be fitted in the following self-aligning pads:
Order No. B0150.117X022 up to B0150.936X036
Order No. B0154.110X015 up to B0154.924X100
Order No. B0156.120X030 up to B0156.924X080Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
