B0169_MRound grippers, Form M |
go back |
|
Item description/product images |
|
|

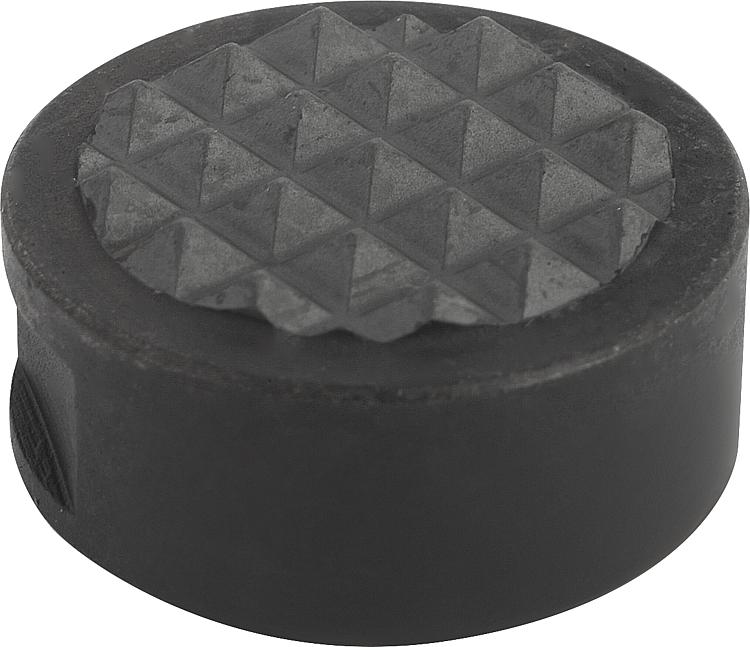

DescriptionMaterial, version:Form M tool steel with carbide serrations, black oxidised.Note:Grippers and inserts are ideal for use in clamping arms, gripping systems, clamping fixtures, clamping jaws and self-aligning pads. The use of grippers allows the transfer of very high torque values and above average grip, even with hard materials and surface irregularities.
Form O: The abrasive diamond surface is bonded firmly to the base. It is ideally suited to supporting smooth or slippery applications with a minimum of clamping pressure. This allows the diamond particles to get a firm grip on a very small area with minimum damage to the surface.
The diamond surface offers excellent wear resistance.
Form P: The polyurethane surface is vulcanised firmly to the ball. It is abrasion-resistant and does not discolour. It offers optimum protection against damage to delicate surfaces. The pearl-like surface gives a firm grip and allows air to escape so as to prevent any suction effect between the contact surface and the self-aligning pads.
Grippers and inserts can be fitted in the following self-aligning pads:
Order No. B0150.117X022 up B0150.936X036
Order No. B0154.110X015 up B0154.924X100
Order No. B0156.120X030 up B0156.924X080
|
| Order No. | G | D2 | L3 | Form | D3 | L5 | C | E | CAD | Acc. | Price | Order |
|---|
| B0169.10107 | M5 | 10 | 10 | M | 7,9 | 6 | 4,5 | 4,75 |  | | 15.08 € | | | B0169.10127 | M5 | 10 | 12 | M | 7,9 | 8 | 6 | 4,75 | | | 15.19 € | | | B0169.12107 | M5 | 12 | 10 | M | 9,5 | 6 | 4,5 | 4,75 | | | 15.23 € | | | B0169.12127 | M5 | 12 | 12 | M | 9,5 | 7 | 6 | 4,75 | | | 15.70 € | | | B0169.16107 | M6 | 16 | 10 | M | 12,7 | 6 | 4,5 | 4,75 | | | 19.82 € | | | B0169.16127 | M6 | 16 | 12 | M | 12,7 | 8 | 6 | 4,75 | | | 22.15 € | | | B0169.20107 | M6 | 20 | 10 | M | 15,9 | 6 | 4,5 | 4,75 | | | 22.67 € | | | B0169.20127 | M6 | 20 | 12 | M | 15,9 | 8 | 6 | 4,75 | | | 27.30 € | | | B0169.25107 | M6 | 25 | 10 | M | 19 | 6 | 4,5 | 4,75 | | | 30.93 € | | | B0169.25127 | M6 | 25 | 12 | M | 19 | 8 | 6 | 4,75 | | | 36.00 € | |
