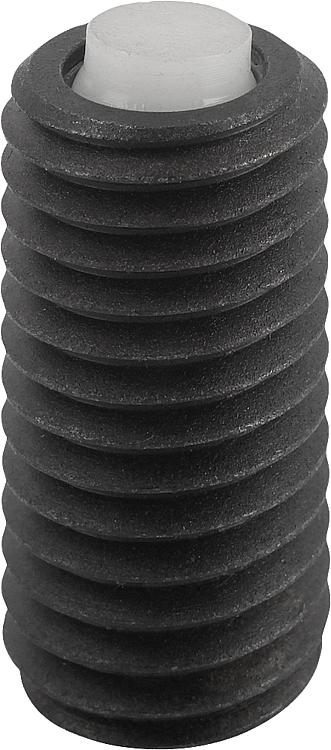

B0155_KSelf-aligning pads, adjustable, with O-ring and hexagon socket... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Body carbon steel.
Ball Form K POM.Version:Body tempered.
POM ball white.Note:Self-aligning pads are used to support and clamp unmachined and machined workpieces.
They can also be used as stops, supports and thrust pads in fixtures and toolmaking.
Ball secured against rotation.Advantages:The built-in O-ring holds the ball in place and keeps dirt and foreign particles out, ensuring uniform movement.
The hexagon socket allows easy adjustment and positioning in through holes.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
