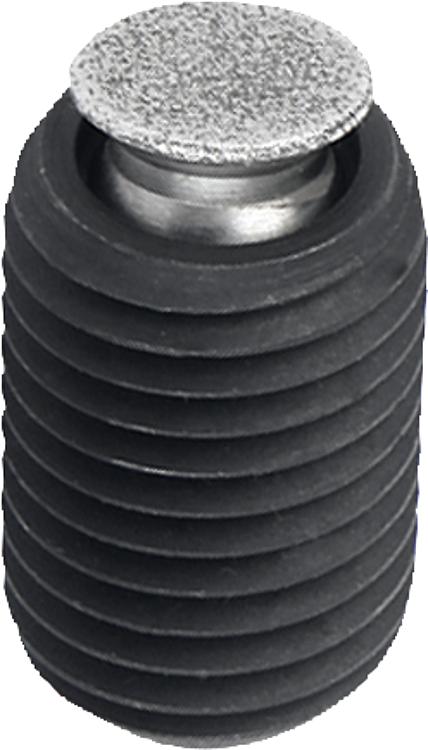

B0155_OSelf-aligning pads, adjustable with O-ring and hexagon socket,... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Body carbon steel.
Ball stainless steel diamond impregnated.Version:Body tempered and black oxidised.
Ball surface comparable to 100 grade abrasive grit.Note:The self-aligning pads are used to support and clamp unmachined and machined workpieces.
They also serve as stops, supports and thrust pads in fixtures and toolmaking.
Ball secured against rotation.
Form O: The abrasive diamond surface is bonded firmly to the ball. It is ideally suited to supporting smooth or slippery applications with a minimum of clamping pressure. This allows the diamond particles to get a firm grip on a very small area with minimum damage to the surface.
The diamond surface offers excellent wear resistance.Advantages:The built-in O-ring holds the ball in place and keeps dirt and foreign particles out, ensuring uniform movement.
The hexagon socket allows easy adjustment and positioning in through holes.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | B | D2 | D3 | H1 | SW1 | DK | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0155.510X026 | O | 25 | M10 | 6 | 1,5 | 5 | 5 | - |  | | 37.13 € | | | B0155.510X036 | O | 35 | M10 | 6 | 1,5 | 5 | 5 | - | | | 37.53 € | | | B0155.510X051 | O | 50 | M10 | 6 | 1,5 | 5 | 5 | - | | | 38.07 € | | | B0155.512X027 | O | 25 | M12 | 8 | 2 | 6 | 7 | 15,4 | | | 41.28 € | | | B0155.512X037 | O | 35 | M12 | 8 | 2 | 6 | 7 | 15,4 | | | 41.70 € | | | B0155.512X052 | O | 50 | M12 | 8 | 2 | 6 | 7 | 15,4 | | | 42.29 € | | | B0155.516X028 | O | 25 | M16 | 11 | 3 | 8 | 10 | 23,3 | | | 43.97 € | | | B0155.516X038 | O | 35 | M16 | 11 | 3 | 8 | 10 | 23,3 | | | 44.30 € | | | B0155.516X053 | O | 50 | M16 | 11 | 3 | 8 | 10 | 23,3 | | | 45.77 € | | | B0155.520X033 | O | 30 | M20 | 14 | 3 | 10 | 13 | 37,7 | | | 50.38 € | | | B0155.520X053 | O | 50 | M20 | 14 | 3 | 10 | 13 | 37,7 | | | 51.23 € | | | B0155.520X073 | O | 70 | M20 | 14 | 3 | 10 | 13 | 37,7 | | | 54.84 € | |
