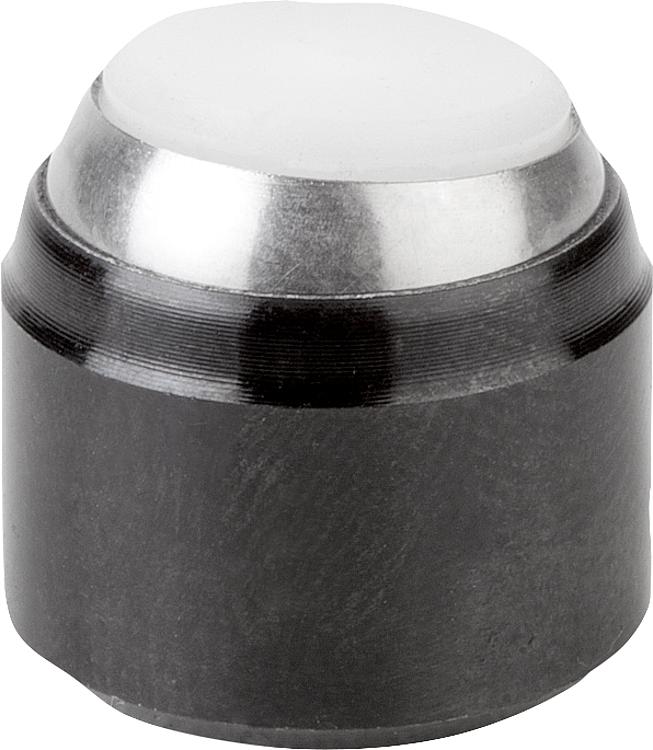

B0146Self-aligning pads, Form H, press fit, flattened ball, with POM... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Body carbon steel,
ball ball-bearing steel 1.2067,
inserts POM.Version:Body tempered and phosphated.
Ball hardened.Note:Self-aligning pads serve as stops, supports and thrust pads in fixture constructions.
Ball secured against rotation.
* Valid only if the minimum bore depth is observed.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
