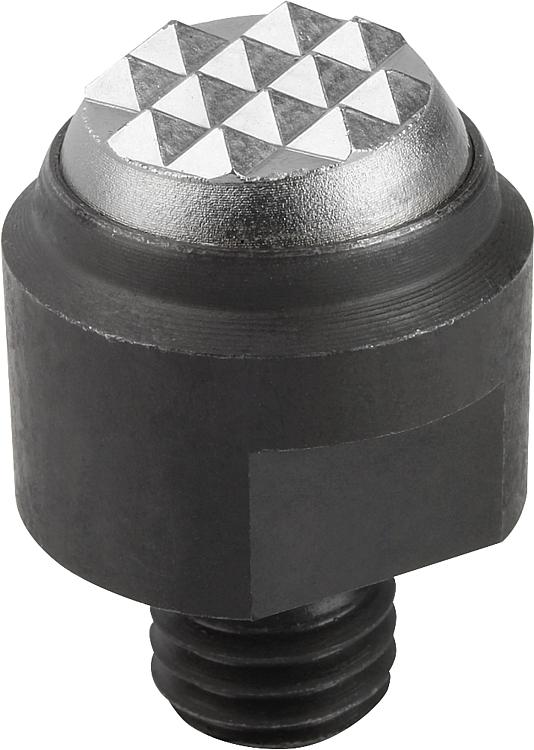

B0146Self-aligning pads, Form M, with external thread, flattened... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Body carbon steel.
Ball carbide.Version:Body tempered and phosphated.
Ball nickel plated.Note:Self-aligning pads serve as stops, supports and thrust pads in fixture constructions.
Ball secured against rotation.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
